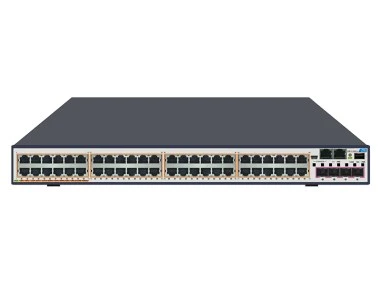

ZTE 5950 60PM 10/100/1000 PoE Switch
Teknik Özellikler
| Dimensions(H*W*D) |
| 43.6mm*442mm*440mm |
| Fixed Interface |
| 48 GE RJ45 (POE/POE+) + 4 10GE SFP+ |
| Expansion Card Slot |
| 1 |
| Expansion Card Type |
| 2*40GE QSFP+ card |
| 2*40GE MiniSAS VSC stacking card |
| 8*10GE SFP+card |
| 8*10GE RJ45 card |
| 8*GE SFP card |
| Weight |
| <8.1kg |
| Management Port |
| 1 GE MNG, 1 RJ45 Console, 1 Mini USB Console |
| AC Power Supply |
| Rated voltages: 100V~240V,50Hz~60Hz |
| Maximum voltages: 90V~286V,45Hz~66Hz |
| DC Power Supply |
| -38V ~ -57V |
| HVDC Power Supply |
| 240V/336V |
| Maximum Power Consumption |
| 1.045W POE : 940W |
| Typical Power Consumption |
| 77W |
| Power Redundancy Pattern |
| Two independent and swappable power supply module, support AC 1+1, DC 1+1, mixed AC DC 1+1 |
| Heat Dissipation Pattern |
| Fan cooling, support multilevel speed regulation |
| Heat Dissipation |
| 214 BTU/h |
| Working Temperature |
| Long term working temperature: -10 ℃ ~ +50 ℃ |
| Short term working Temperature: -10 ℃ ~ +55 ℃ |
| Humidity |
| 5%~95% |
| Working Altitude |
| 2000 meters |
| MTBF/MTTR |
| 400000 hours/ 30 minutes |
| Switching Capacity |
| 336Gbps |
| Packet Forwarding Rate |
| 180Mpps |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 4
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 800 Watt >
Aktarım Türü : Gbit Fiber
