Açıklama

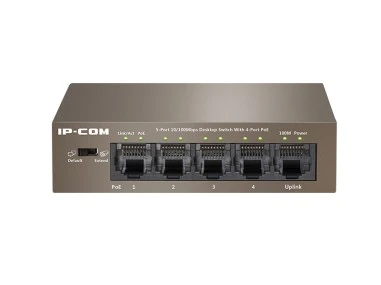

IP-COM G1105P 4 63W Gigabit PoE Switch

5 10/100/1000 Mbps Base-T RJ45 port
Ports 1-4: IEEE 802.3af/at PoE ports
maximum power output of each PoE port: 30 W; maximum power output of the switch: 58 W
Desktop size,Power Adapter Output 63W
Support One-Key VLAN, Port 1-4 will be isolated respectively but can communicate with the 5 port

PoE : PoE

Port Hızı : 1 GBit

Aktarım Port Sayısı : 1

Aktarım Türü : Rj45

Çalışma Mesafesi : 90 Mt.

Montaj Tipi : Desk Mount

PoE Port Sayısı : Tooltip

4 Port

PoE Güç Bütçesi : 200-400 Watt

Standard&Protocol	IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
MTBF	≥100,000hours
Indicator	5*Link/Act per device
	4*PoE per device
	1*Power per device
Interface	4 10/100/1000Base-T ports(Data/Power)
Interface	1 10/100/1000Base-T port(Data)
Port Lightning Protection	6KV
Store and forward	Yes
Exchange Capacity	10 Gbps
Packet forwarding rate	7.44Mpps
RAM Data Buffer	1Mb
MAC Address Table	2K
PoE supply management	Port 1 to Port 4 support IEEE802.3at/af PoE standard
PoE through pin	1 2 4 5 +，3 6 7 8 -
Voltage input range	AC：100-240V～ 50/60Hz
Dimensions	10010026mm ( W x D x H )
Power Consumption	in full configuration：<63W
Power Consumption	PoE Max Power Supply：58W
Port Features	Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
Port Features	VLAN: In this mode,1-4 ports of the switch cannot communicate with each other, but can communicate with the 5 port .Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing。
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉)
	Storage Temperature: -40℃~70℃ (-40℉~158℉)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
