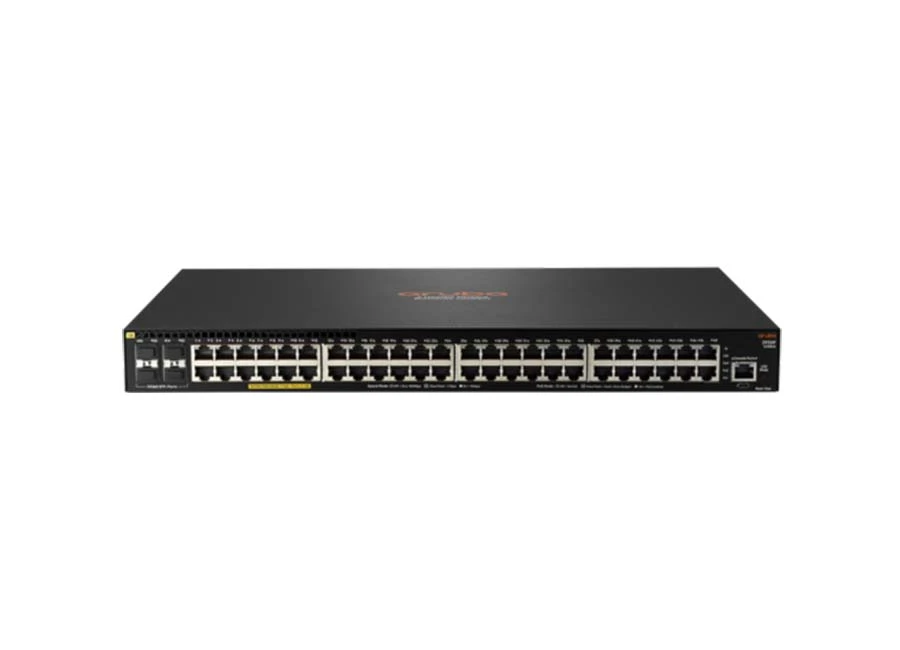

HPE Aruba 2930F 48G JL558A PoE Switch
Özellikler
Teknik Özellikler
| Product Differentiator (long) |
| Popular Aruba 52-port Gig + 10G access switch with high-power 740 Watts PoE+ power. This model has 48x 10/100/1000 PoE+ ports and 4x 10G / 1G SFP+ transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 740 Watts. |
| Power Consumption Description |
| 980 W (maximum) |
| Heat Dissipation |
| 420.9 BTU/hr (444.1 kJ/hr) |
| Input Voltage |
| 100-127 / 200-240 VAC, rated |
| External I/O Ports |
| (48) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP+ 1/10GbE ports PHY-less |
| Latency |
| 1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs |
| Switching Capacity |
| 176 Gbps |
| Throughput |
| up to 112 Mpps |
| Memory and Processor |
| Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress 4 GB eMMC |
| PoE Capability |
| 740 W PoE+ |
| Management Features |
| Aruba AirWave Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
| Warranty Standard Statement |
| Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase. |
| Weight (imperial) |
| 10.56 lb |
| Weight (metric) |
| 4.79 kg |
| Product Dimensions (imperial) |
| 1.73 x 17.42 x 12.77 in |
| Product Dimensions (metric) |
| 4.39 x 44.25 x 32.42 cm |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 400-800 Watt
