Açıklama

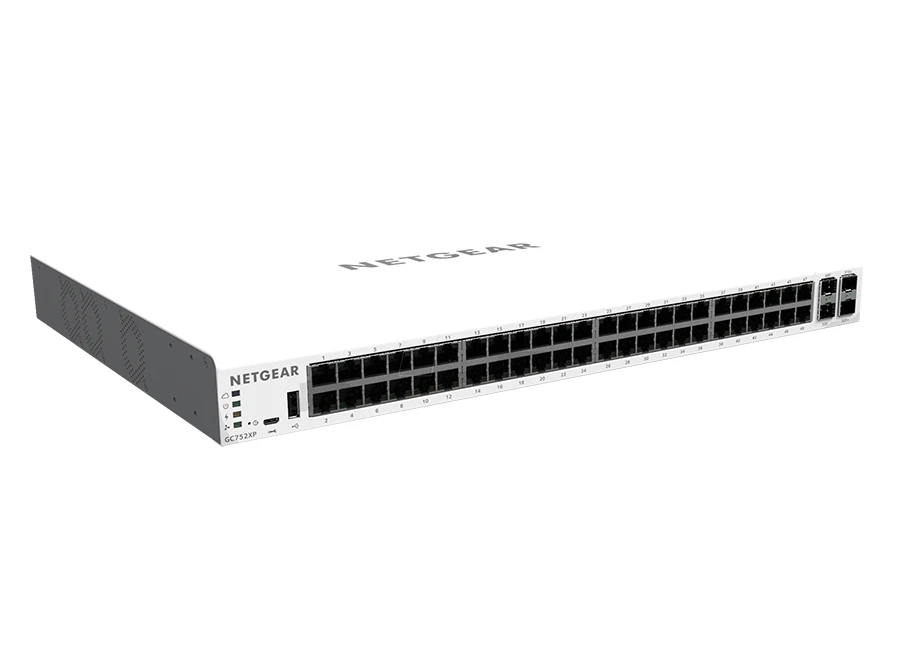

Netgear GC752XP PoE Switch
Teknik Özellikler
| Model Description |
| Insight Managed 52-Port Gigabit PoE+ Ethernet Smart Cloud Switch with 2 SFP and 2 SFP+ 10G Fiber Ports |
| Gigabit copper ports |
| 48 |
| SFP / SFP+ 10G Ports |
| SFP Ports: 2 (dedicated) |
| 10G SFP+ Ports: 2 (dedicated) |
| Number of PoE/PoE+ ports |
| 48 PoE+ (802.3at) |
| Total PoE power budget (watts) |
| 505W |
| Bandwidth (full-duplex) |
| 140 Gbps |
| Buffer size (dynamically shared across ports in use) |
| 2 MB |
| MAC address database size (48-bit MAC addresses) |
| 16K |
| VLAN (number supported) |
| 256 |
| VLAN routing |
| Yes |
| Dynamic VLAN assignment |
| Yes |
| MLD Snooping |
| Yes |
| Static routes |
| 32 (IPv4) / 31 (IPv6) |
| Link Aggregation / Port Trunking |
| LACP (802.3ad Dynamic Link Aggregation) & Manual Static LAG |
| Number of LAGs & number of members |
| 24 LAGs with max 8 members in each LAG |
| Number of priority queues |
| 8 |
| Supported multicast groups |
| 512 |
| DoS prevention |
| Yes |
| Loop detection/prevention |
| Yes |
| Jumbo frame support |
| Up to 9K packets |
| EEE (IEEE 802.3az) |
| Yes |
| Power supply |
| Internal: 100-240VAC, 50-60Hz, 10A max (power cord localized to country of sale) |
| Max power (worst case, all ports used, line-rate traffic) |
| 118.6W (no PoE) / 623.6W (full PoE) |
| Fan(s) |
| 3 |
| Acoustic noise level @ 25°C (dBA) |
| 30 dBA |
| Operating temperature |
| ° to 50°C (32° to 122°F) |
| MTBF (@ 25°C) |
| 455,682 hrs (50 yrs) |
| Electromagnetic compliance (A or B) |
| Class A |
| Dimensions (W x D x H) |
| 440 x 320 x 44 mm (17.3 x 12.6 x 1.7 in) |
| Weight |
| 4.79 kg (10.56 lb) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : 10Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 400-800 Watt
