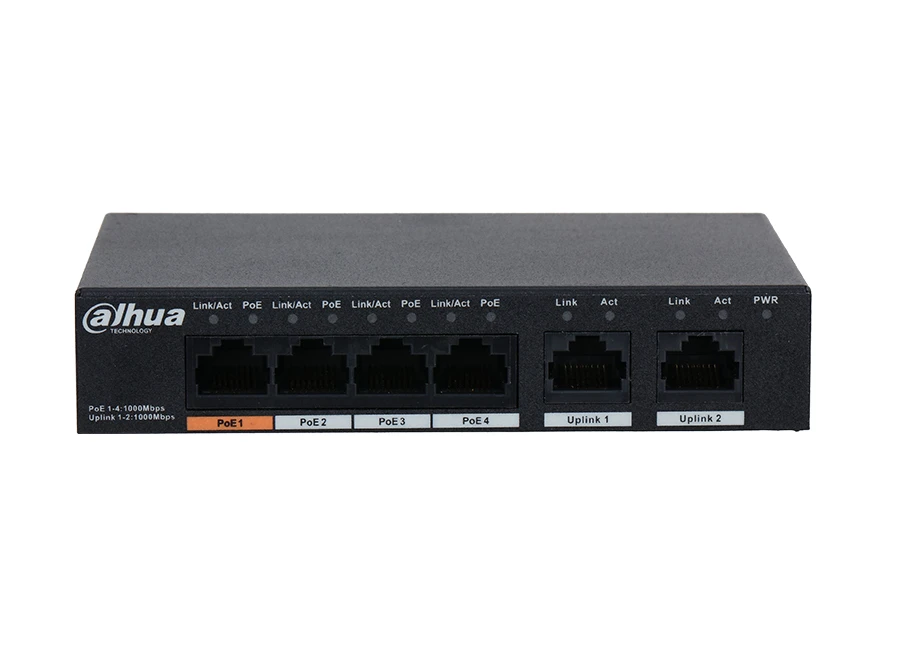

Dahua PFS3006-4GT-60 PoE Switch
Özellikler
Teknik Özellikler
Hardware Feature | |
Ethernet Port | Port1-4: 4 × RJ-45 10/100/1000M (PoE) |
Port5-6: 2 × RJ-45 10/100/1000M (uplink) | |
PoE Power Consumption | Port1≤ 60 W (Hi-PoE) |
Port2-4 ≤30 W | |
Total≤60 W | |
Power Consumption | Idling: 0.96 W |
Full load: 60 W | |
Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
PoE | |
PoE Protocol | IEEE802.3af/ IEEE802.3at/ Hi-PoE |
Power Supply Pin | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
Long Distance | 250 m long distance PoE transmission |
PoE Power Management | Yes |
PoE Watchdog | Yes |
Performance | |
Switching Capacity | 14 Gbps |
Packet Forwarding Rate | 8.928 Mbps |
Packet Buffer Memory | 1 Mbit |
MAC Address Table | 2 K |
Flow Control | Enable by default |
Working Temperature | –10 °C to 55 °C (+14°F to +131°F) |
Application Humidity | 5%–95% (RH) |
General | |
Power Input | 48 V - 57 V DC |
Lighting Protection | Common mode: 4 kV |
Differential mode: 2 kV | |
ESD Protection | Air discharge: 8 kV |
Contact discharge: 6 kV | |
Wall-mount Installation | Yes |
Anti-theft Lock Hole | Yes |
Weight | 0.30 kg (0.64 lb) |
Dimension | 130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02") |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 2
Aktarım Türü : Rj45
Montaj Tipi : Desk Mount
PoE Port Sayısı : 4 Port
PoE Güç Bütçesi : 50-130 Watt
