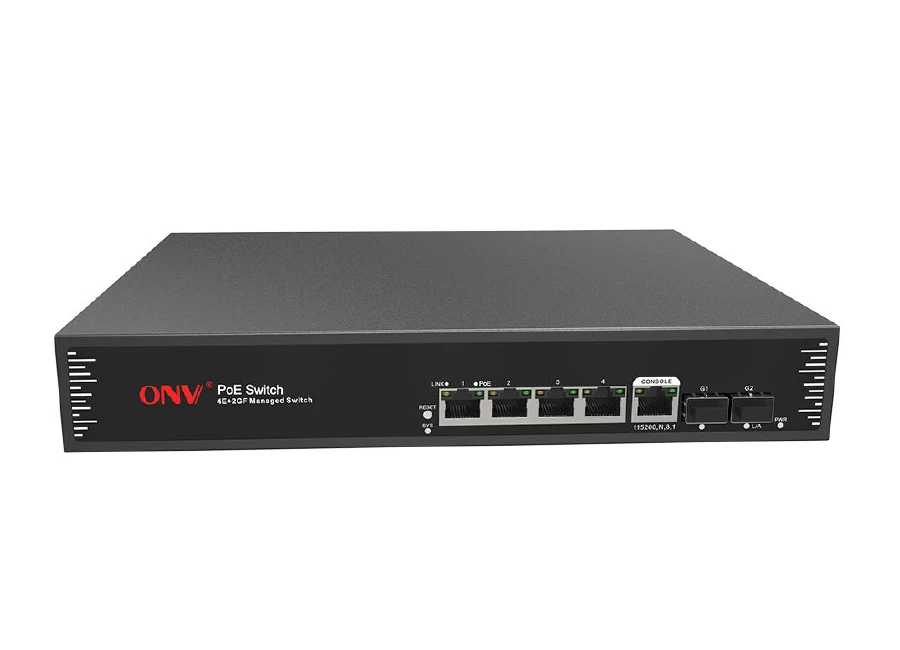

ONV ONV-POE31064PFM PoE Switch
Özellikler
Teknik Özellikler
Model | ONV-POE31064PFM |
Interface Characteristics | |
Fixed Port | 4*10/100Base-TX PoE ports (Data/Power) |
2*1000M uplink SFP fiber slot ports (Data) | |
Ethernet Port | Port 1-4 support 10/100Base-T(X) Port 5-6 support 10/100/1000Base-X auto-sensing, full/half duplex MDI/MDI-X self-adaption. |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
100BASE-TX: Cat5 or later UTP(≤100 meter) | |
1000BASE-T: Cat5e or later UTP(≤100 meter) | |
SFP Slot Port | Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
Optical Cable/ Distance | Multi mode: 850nm/ 0 ~ 550M, Single mode: 1310nm/ 0 ~ 40KM, 1550nm/ 0 ~ 120KM. |
Chip Parameter | |
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T |
IEEE802.3u 100Base-TX,IEEE802.3z 1000Base-X, IEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) |
Switching Capacity | 64Gbps (Non-blocking) |
Forwarding Rate@64byte | 3.57Mpps |
MAC | 8K |
Buffer Memory | 4.1M |
Jumbo Frame | 9.2K |
CPU(Hz) | 500M |
DRAM | 1G |
Flash | 128M |
LED Indicator | Power:PWR(green), Data:Link(yellow), PoE:PoE(green) |
Reset Switch | Yes, One-button factory reset |
PoE & Power Supply | |
PoE Port | Port 1 to 4 IEEE802.3af/at @ POE |
PoE Management | PoE working status |
Delay start of power supply | |
Scheduling of PoE operation and time | |
Distribution for PoE output power of each port | |
Power Supply Pin | Default 1/2(+),3/6(-), Optional 4/5(+),7/8(-) |
Max Power Per Port | 30W; IEEE802.3af/at |
Total PWR / Input Voltage | 65W (AC100-240V) |
Power Consumption | Standby:<5W, Full load:<65W |
Power Supply | Built-in power supply, AC100~240V 50-60Hz 1A |
Physical Parameter | |
Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing |
Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing |
Dimension (L*W*H) | 270*181*44.5mm |
Net /Gross Weight | <1.3kg /<1.8kg |
Installation | Desktop,wall-mounted,19 inch 1U cabinet installation |
Certification & Warranty | |
Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 |
Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS |
Warranty | 3 years, lifelong maintenance. |
Network Management Features | |
Interface | IEEE802.3X (Full duplex) |
Broadcast storm control based on port speed | |
Speed limit of the message flow in the access port. | |
The minimum particle size is 64Kbps. | |
VLAN | 4K VLAN based on port, IEEE802.1q |
QinQ configuration,VLAN based on protocol | |
Port Aggregation | LACP, Manual aggregation |
Support the largest 3 aggregation groups, each aggregation group supports 8 ports. | |
Spanning Tree | STP(IEEE802.1d), RSTP(IEEE802.1w), MSTP(IEEE802.1s) |
Multicast | IGMP Snooping v1/v2/v3, Max 64 multicast groups |
Fast log out, MLD Snooping v1/v2, Multicast VLAN | |
Image | Bi-directional traffic mirroring supporting the basic port |
QoS | Diff-Serv QoS |
8*Output queues of each port | |
802.1p/DSCP priority mapping | |
Queue Scheduling Algorithm (SP,WRR,SP+WRR) | |
Priority Mark/Remark | |
ACL | L2-L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range and VLAN etc. Port-based Issuing ACL. |
Security | Port isolation |
Broadcast storm control | |
Port+MAC binding, IP+MAC+port binding | |
DHCP | DHCP Relay, DHCP Client, DHCP Snooping |
Management | NTP |
Login Record | |
SNMP V1/V2C/V3 | |
One-key recovery | |
Web Management (HTTPS) |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Desk Mount
PoE Port Sayısı : 4 Port
PoE Güç Bütçesi : 50-130 Watt
