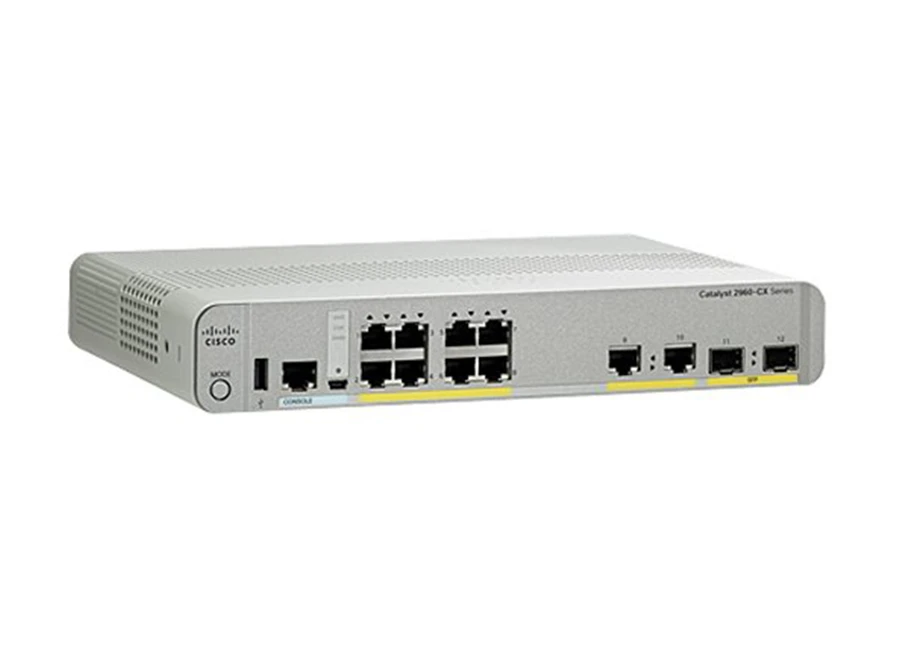

Cisco Catalyst 2960CX 8PC L PoE Switch

Teknik Özellikler

WS-2960CX-8PC-L
Ethernet Ports 8 x 10/100/1000 Gigabit Ethernet
PoE 8 PoE+
Output Ports
Available 124W
PoE Power
Uplinks 2 x 1G copper plus
2 x 1G SFP
Default Software LAN Base
Forwarding Bandwidth 12 Gbps
Switching Bandwidth (full-duplex capacity) 24 Gbps
Flash memory 128 MB
Memory DRAM 512 MB
Max VLANs 255
VLAN IDs 4000
Maximum transmission unit (MTU) Up to 9000 bytes
Jumbo frames 9198 bytes
Forwarding rate 64 Byte Packet  17.9 mpps
Power connectors - Customers can provide power to a switch by using the internal power supply.
The connector is located at the back of the switch.
The internal power supply is an autoranging unit
- The internal power supply supports input voltages between 100 and 240VAC
- Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Indicators Per-port status: Link integrity, disabled, activity, speed, full-duplex
  System status: System, link status, link duplex, link speed
Dimensions 1.75 x 10.6 x 9.4 in (4.44 x 26.9 x 23.8 cm)
(H x W x D)
Weight 5.0 lb (2.27 Kg)
Package Weight 10.25 lb (4.65 Kg)
Operating* temperature up to 5000 ft (1524 m) -5°C to +45°C
(+23°F to +113°F)
Operating* temperature up to 10,000 ft (3048 m) -5°C to +45°C
(+23°F to +113°F)
Storage temperature up to 15,000 ft (4572 m) -25°C to +70°C
(-13°F to +158°F)
Operating altitude Up to 3048 m
(Up to 10,000 ft)
Storage altitude Up to 4000 m
(Up to 15,000 ft)
Operating relative humidity 5% to 95% noncondensing
Storage relative humidity 5% to 95% noncondensing
Mean time between failure (MTBF) 569,53

pdfCisco Catalyst 2960CX 8PC L PoE Switch Pdf Dosyası708.24 KB

Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : Tooltip 8 Port
PoE Güç Bütçesi : 50-130 Watt
