Açıklama

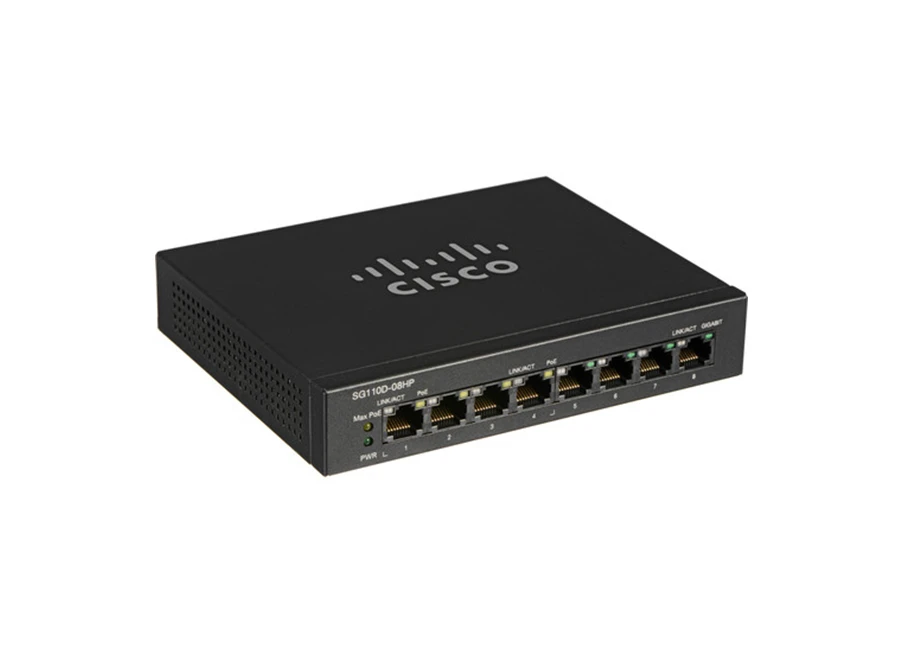

Cisco SG110D 08HP PoE Switch
Özellikler
- 8 x Gigabit Ethernet Ports
- 4 x 32 watt 802.3af Compliant PoE Ports
- 802.3/3u/3ab/3z/3x Network Standards
- Fanless Design
- 16 Gbps Switching Capacity
- 11.9 Mpps Forwarding Capacity
- 9216 bytes Jumbo Frame
- Desktop or Rack Mountable
- 128MB RAM / 128MB Flash Memory
Teknik Özellikler
| Interfaces | |
| Ports | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 1) | |
| Protocols | |
| Supported Protocols | Head-of-Line (HOL) Blocking |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9,216 Bytes |
| Security | |
| Security Features | Kensington Lock Support |
| Standards | |
| Supported IEEE Standards | 802.1p, 802.3, 802.3ab, 802.3af, 802.3u, 802.3x, 802.3z |
| Performance | |
| Forwarding Rate | 11.9 Mpps |
| Switching Bandwidth | 16 Gb/s |
| Priority Queues | 4 |
| Computer | |
| Flash Memory | 128 MB |
| Memory | 128 MB |
| Electrical | |
| DC Input Power | 12 VDC at 1 A |
| PoE Power Budget | 32 W |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Storage Humidity | 5 to 90% |
| General | |
| Cooling System | Passive |
| Indicator Lights | Diagnostic, Link/Activity, PoE, Speed, System/Power |
| Dimensions | 6.3 x 5.1 x 1.2" / 16 x 12.9 x 3 cm |
| Weight | 1 lb / 0 kg |
| Packaging Info | |
| Package Weight | 2.75 lb |
| Box Dimensions (LxWxH) | 11.3 x 8.0 x 2.7" |
Teknik Kısa
PoE : Hibrid
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Montaj Tipi : Rack Mount
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 0-50 Watt
