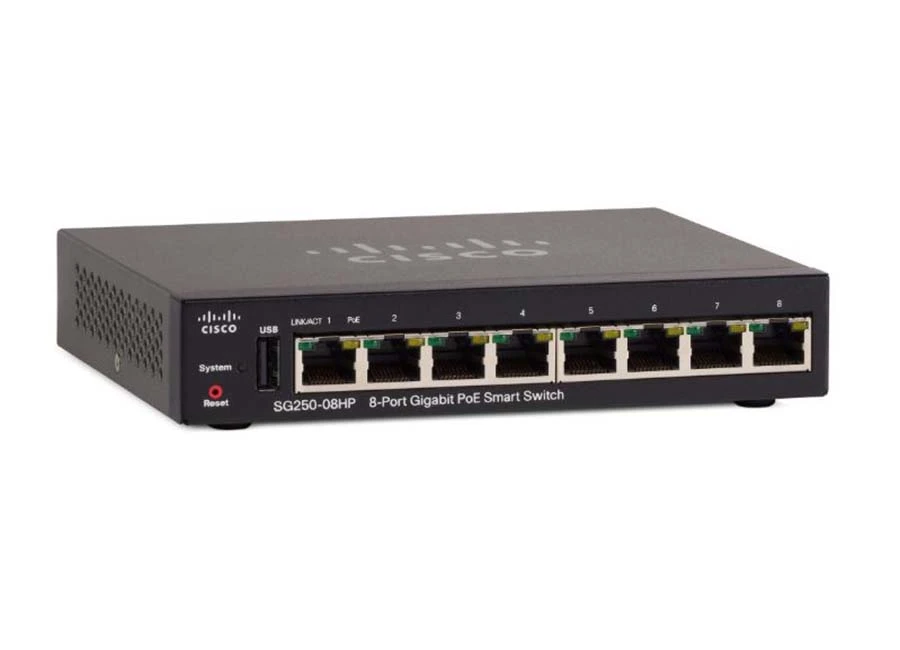

Cisco SG250 08HP Gigabit PoE Switch



Teknik Özellikler

Miscellaneous
Cables Included 1 x power cable
Rack Mounting Kit Included
MTBF 506,682 hours
Compliant Standards UL 60950, CSA 22.2, FCC CFR47 Part 15 A
Localization North America
Dimensions & Weight
Width 6.3 in
Depth 5 in
Height 1.2 in
Manufacturer Warranty
Service & Support Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 - 90% (non-condensing)
Min Storage Temperature -4 °F
Max Storage Temperature 158 °F
Humidity Range Storage 10 - 90% (non-condensing)
General
Device Type Switch - 8 ports - L3 - smart
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 8 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE) PoE+
PoE Budget 45 W
Performance Switching capacity: 11.9 Mpps ¦ Forwarding performance (64-byte packet size): 16 Gbps
Capacity MSTP instances: 8 ¦ Active VLANs: 256 ¦ QoS hardware queues: 4
MAC Address Table Size 8K entries
Jumbo Frame Support 9KB
Routing Protocol IGMPv2, IGMP, IGMPv3, MLDv2, MLD, CIDR
Remote Management Protocol SNMP, RMON, Telnet, HTTP, HTTPS, TFTP, SSH
Encryption Algorithm MD5, SSL
Authentication Method RADIUS
Features DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), MLD snooping, reset button, fanless, LLDP support, 12MB packet buffer, Storm Control, SmartPort technology, Cisco Discovery Protocol
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Processor X ARM: 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators System, link/speed
Expansion / Connectivity
Interfaces 8 x 1000Base-T RJ-45 PoE+ ¦ 1 x USB Type A management
Power
Power Device External power adapter
Voltage Required AC 120/230 V (50 - 60 Hz)

pdfCisco SG250 08HP Gigabit PoE Switch Pdf Dosyası870.01 KB

Teknik Kısa

PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
PoE Port Sayısı : Tooltip 8 Port
PoE Güç Bütçesi : 0-50 Watt
