Açıklama

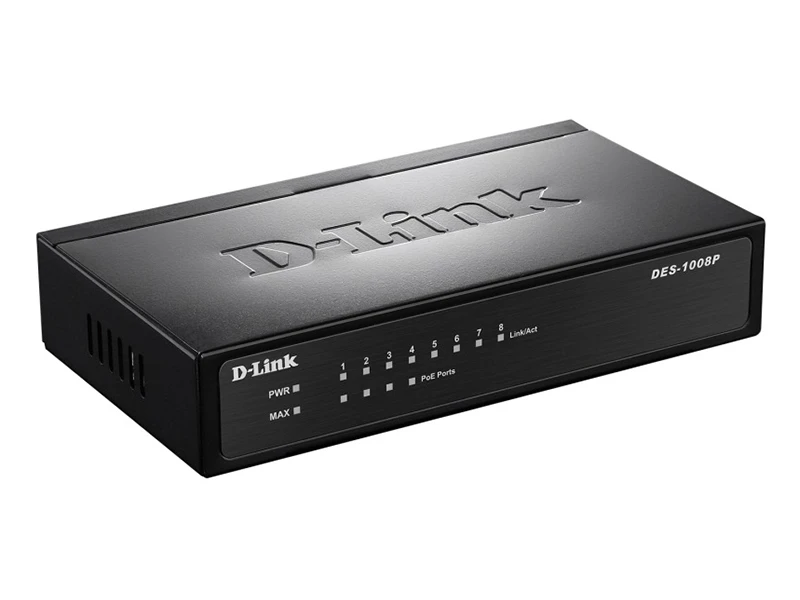

D-Link DES 1008P C1A PoE Switch

Özellikler

Standards
  • EEE 802.3 10BASE-T Ethernet (twisted-pair copper)
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x flow control
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
Switching Fabric
  • 1.6 Gbps switching fabric
Data Transfer Rates
Ethernet
Fast Ethernet
  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)
Media Interface Exchange
  • Auto MDI/MDIX adjustment for all ports
Network Cables
  • 10BASE-T:
  • UTP CAT 3/4/5/5e (100 m max.)
  • EIA/TIA-586 100-ohm STP (100 m max.)
  • 100BASE-TX
  • UTP CAT 5/5e (100 m max.)
  • EIA/TIA-568 100-ohm STP (100 m max.)
LED Indicators
  • Per unit: Power/ PoE Max
  • Per port: Activity/ Link and Speed
  • Per port: Power / Status
Transmission Method
  • Store-and-forward
MAC Address Table
  • 2K entries per device
Packet Filtering/Forwarding Rates
  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port
RAM Buffer
  • 96 KB per device
Physical Dimensions
  • 5.5” x 3.0” x 1.06” (140 mm x 77 mm x 27 mm)
  • DC Input
  • External 51 V / 1.25 A power adapter
Power Consumption
  • 62 Watts maximum
  • PoE up to 15.4 Watts per port (ports 1-4 only)
Temperature
  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -10 to 70 °C (14 to 158 °F)
Humidity
  • Operating: 5% to 90% RH non-condensing
Certifications
  • CE / KCC / C-Tick


Teknik Kısa

PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 4
PoE Güç Bütçesi : 50-130 Watt
PoE Port Sayısı : Tooltip 4 Port
Aktarım Türü : Rj45
