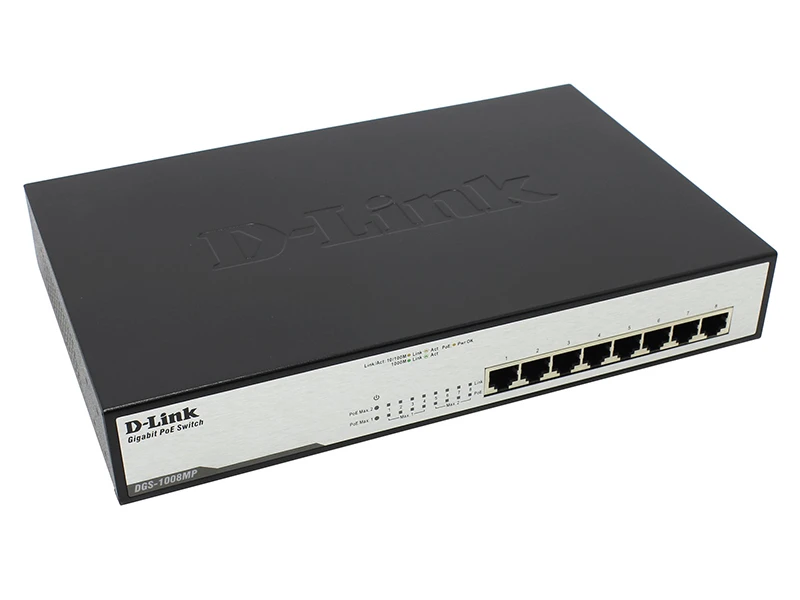

D-Link DGS 1008MP 10/100/1000 Poe Switch
Teknik Özellikler
| Size |
| 19-inch Desktop/Rackmount size, 1U height |
| Device Interfaces |
| 8 10/100/1000 Mbps ports |
| Port Standards & Functions |
| IEEE 802.3i 10BASE-T |
| IEEE 802.3u 100BASE-TX |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
| IEEE 802.3at Power over Ethernet |
| IEEE 802.3az Energy Efficient Ethernet |
| IEEE 802.3x Flow Control supports half/full duplex mode |
| ANSI/IEEE 802.3 NWay auto-negotiation |
| Switching Capacity |
| 16 Gbps switching fabric |
| Media Interface Exchange |
| Auto MDI/MDIX |
| Transmission Method |
| Store-and-forward |
| MAC Address Table |
| 8K entries per device |
| Packet Buffer Memory |
| 128 KB per device |
| Packet Filtering/Forwarding Rates |
| Ethernet: 14 880 pps per port |
| Fast Ethernet: 148 800 pps per port |
| Gigabit Ethernet: 1 488 800 pps per port |
| Data Transfer Rates |
| Ethernet: |
| 10 Mbps (half duplex) |
| 20 Mbps (full duplex) |
| Fast Ethernet: |
| 100 Mbps (half duplex) |
| 200 Mbps (full duplex) |
| Gigabit Ethernet: |
| 2000 Mbps (full duplex) |
| Network Cables |
| 10BASE-T: |
| UTP CAT 3/4/5/5e (100 m max.) |
| EIA/TIA-586 100-ohm STP (100 m max.) |
| 100BASE-TX: |
| UTP CAT 5/5e (100 m max.) |
| EIA/TIA-568 100-ohm STP (100 m max.) |
| 1000BASE-T: |
| UTP CAT 5/5e(100 m max.) |
| EIA/TIA-568 100-ohm STP(100 m max.) |
Fiziksel Özellikler
| LED Indicators |
| Per port: Activity / Link and Speed |
| Per port: Power / Status |
| PoE Max 1: Ports 1-4 |
| PoE Max 2: Ports 5-8 |
| Dimensions |
| 280 x 180 x 44 mm |
| Weight |
| 1.8274 kg |
| Power Input |
| AC Input: 100 to 240 V AC, 50/60 Hz |
| Maximum PoE Budget |
| 140 watts |
| MTBF (hours) |
| 326 125 |
| Power Consumption |
| 13.5 watts (PoE off) |
| 51 watts (PoE on) |
| PoE up to 30 watts per port |
| Temperature |
| Operating: 0В° to 40В°C |
| Storage: -10В° to 70В°C |
| Humidity |
| Operating: 0% to 95% (Non-condensing) |
| Storage: 5% to 95% (Non-condensing) |
| EMI |
| CE Class A |
| FCC Class A |
| VCCI Class A |
| CCC Class A |
| BSMI Class A |
| Safety |
| cUL |
| CB |
| LVD |
| CCC |
| BSMI |
D-Link DGS 1008MP 10/100/1000 Poe Switch Pdf Dosyası432.53 KB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 130-200 Watt
Montaj Tipi : Rack Mount
