Açıklama

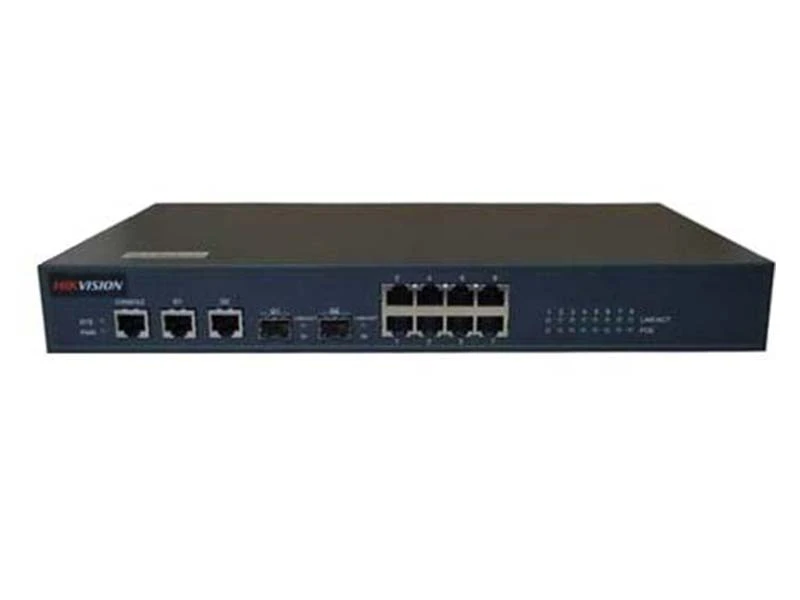

Hikvision DS 3D2208P PoE Switch

Excellent performance

64Gbps backplane capacity; non-blocking design; video streaming forwardingat full speed;
Gigabit optical-fiber transmission with up to 120Km distance;
High security and reliability
Providing multiple user authentication modes such as 802.1x authentication;
Port-MAC-IP bind;
Special ARP invasion detection to effectively stop ARP cheat;

Flexible and various managements

Adopt cluster technology, support device stacking and use an unified IP address for management;
Multiple management modes such as Console port, Telnet, Web and SNMP;

Powerful flow and broadcast management

Automatically detecting and controlling broadcast storms, monitoring IGMP packets and effectively preventing broadcast packet's flooding;
Flow control in full-duplex mode or half-duplex mode;
The rate limitation in a minimum step of 64K is supported on the Ethernet port;
IP multicast and QoS;

Varied protocols

802.3af power supply on all ports;
802.3at power supply with the maximum power supply on each port reaching up to 30W;
Configurable power supply priority guarantees, continuous power supply at key network nodes;
Configurable power consumption to save power and users' cost.

PoE : PoE Plus

Port Hızı : 100 Mbps

Yönetilebilirlik : Yönetilebilir

Aktarım Port Sayısı : 4

Aktarım Türü : Combo

PoE Port Sayısı : Tooltip

8 Port

PoE Güç Bütçesi : 130-200 Watt

Parameter
Port	8 100M Ethernet Ports
	2 1000M Ethernet Ports
	2 1000M SFP Optical Multiplex Ports
	1 Console Port
Backplane Capacity	64Gbps
Switching Bandwidth	32Gbps
Forwarding	4.2Mpps
MAC Table	8K
Video Buffering	64MB
STP	IEEE 802.1D STP
	IEEE 802.1w RSTP
	IEEE 802.1s MSTP
VLAN	Port-based VLAN
	802.1Q VLAN
	GVRP
VLAN No.	4K (any division)
QinQ	Support
QoS	Support
Flow Control	Backpressure is adopted for half-duplex, while IEEE802.3x is adopted for full-duplex.
Multicast	IGMP Snooping
Network Management	SNMP, Telnet, RMON, CLI, support multiple SNMP network management software
Network Security	IEEE 802.1x
	Port access control
	IP ACL, MAC ACL and VLAN ACL
	DHCP snooping
	DAI and static/dynamic ARP prevention
	RADIUS
Dimension	340mm×250mm×44mm
Dimension	(13.39”×9.84”×1.73”)
Power Source	110-240VAC (self-adaptive), 47-63Hz, 1A/230V
Power Source	PoE/PoE+ power supply
Power Consumption	Max. 170W (including PoE power supply) , support 802.3af power supply on 8 ports or 802.3at power supply on 5 ports
Indicator	Power indicator, system indicator, connection/data forwarding indicator, 10/100M indicator
Environment	Working temperature: 0 °C ~55 °C (32 °F ~ 131 °F)
Environment	Humidity: 0-90% (no condensation)
SFP modules	HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km
SFP modules	HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km
