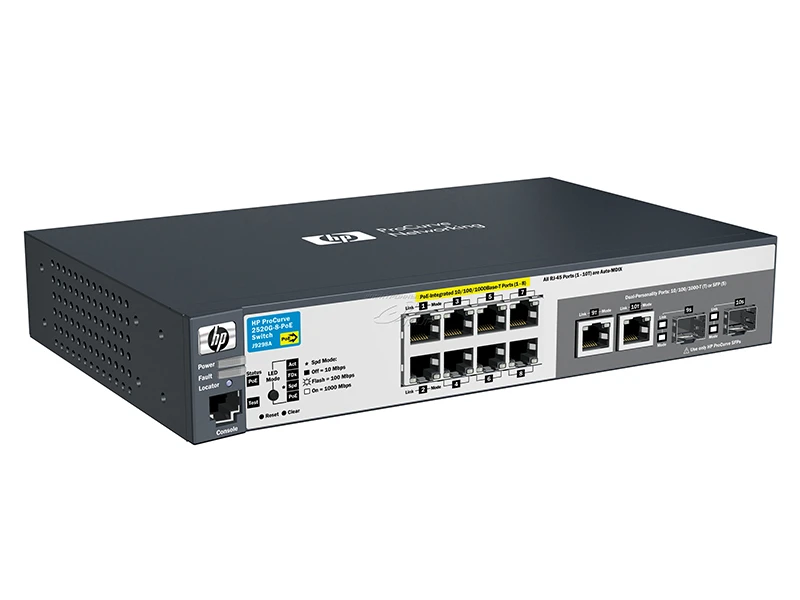

HP 2520 8G PoE J9298A 10/100/1000 PoE Switch
Teknik Özellikler
General Information |
Product Name : HPE ProCurve 2520G-8-PoE Switch |
Manufacturer Part Number : J9298A#ABA |
Product Line : ProCurve |
Product Series : 2520 |
Product Model : 2520-8G-PoE |
Product Type : Ethernet Switch |
Interfaces/Ports |
Total Number of Network Ports : 8 |
Uplink Port : Yes |
Modular : No |
Port / Expansion Slot Details: |
8 x Fast Ethernet Network |
2 x Gigabit Ethernet Expansion Slot |
2 x Gigabit Ethernet Network |
I/O Expansions |
Number of Total Expansion Slots : 2 |
Expansion Slot Type : SFP |
Shared SFP Slot : Yes |
Number of SFP Slots : 2 |
Media & Performance |
Media Type Supported : Twisted Pair |
Ethernet Technology : |
Network Technology : |
Gigabit Ethernet |
Fast Ethernet |
10/100/1000Base-T |
1000Base-X |
10/100Base-TX |
Network & Communication |
Layer Supported : 2 |
Power Description |
Power Source : Power Supply |
Management & Protocols |
Manageable : Yes |
Physical Characteristics |
Compatible Rack Unit : 1U |
Form Factor : Rack-mountable |
Height : 1.8" |
Width : 10" |
Depth : 6.3" |
Other Information |
Product Family : ProCurve 2520 |
PoE (RJ-45) Port : No |
Token Ring Port : No |
LRE Port : No |
Number of Network (RJ-45) Ports : 2 |
Management Port : Yes |
Number of PoE (RJ-45) Ports : 8 |
Bypass : No |
Memory Technology :DDR SDRAM |
Certifications & Standards |
Safety: |
cUL (CSA 22.2 No. 60950)CE LabeledUL |
60950-1UL ListedCAN/CSA 22.2 No. |
60950EN 60825AS/NZS 60950IEC |
60950-1EN 60950-1 |
Emissions |
FCC part 15 Class A |
VCCI Class A |
EN 55022 Class A |
CISPR 22 Class A |
ICES-003 (Canada) |
AS/NZS CISPR 22 |
IEC/EN 61000-3-2 |
IEC/EN 61000-3-3 |
IEC 61000:4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11 |
Back to top |
Immunity: |
Generic: EN 55024, CISPR 24 |
EN: EN 55024, CISPR 24 |
ESD: IEC 61000-4-2 |
Radiated: IEC 61000-4-3 |
EFT/Burst: IEC 61000-4-4 |
Surge: IEC 61000-4-5 |
Conducted: IEC 61000-4-6 |
Power frequency magnetic field: IEC 61000-4-8 |
Voltage dips and interruptions: IEC 61000-4-11 |
Harmonics: EN 61000-3-2, IEC 61000-3-2 |
Flicker: EN 61000-3-3, IEC 61000-3-3 |
IEEE Standards: |
802.1D |
802.1p |
802.1Q |
802.1s |
802.1w |
802.3 |
802.3ab |
802.3ad |
802.3af |
802.3x |
Management |
HP PCM+ |
HP PCM |
Command Line Interface (CLI) |
Web-based Management |
MIB |
SNMP |
RMON |
QoS |
Flash Memory : 32 MB |
Input Voltage : |
120 V AC |
230 V AC |
Standard Memory : 128 MB |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Desk Mount
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 50-130 Watt
