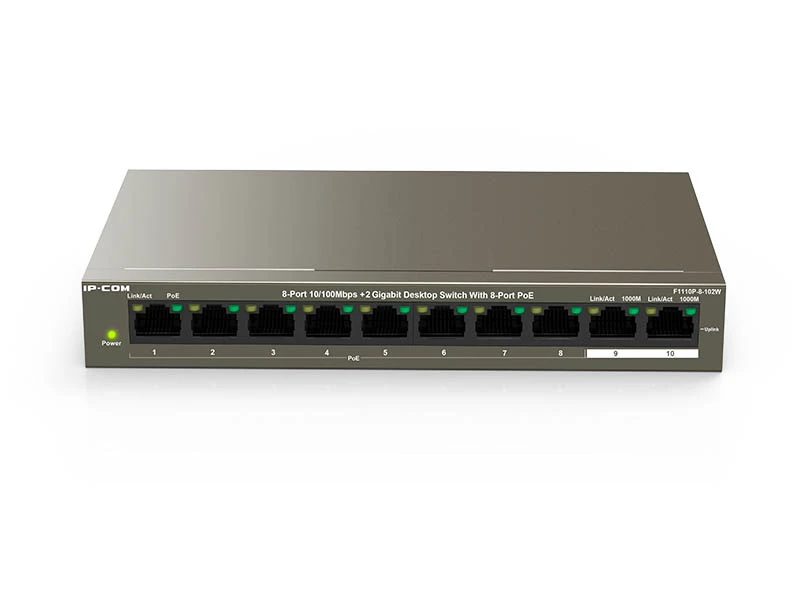

IP-COM F1110P 8 102W Gigabit PoE Switch
Özellikler
- 8 10/100BASE-TX RJ45 ports, 2 10/100/1000BASE-T RJ45 ports ;
- 6KV lightning protection;
- Up to 8 ports of IEEE 802.3af/802.3at devices powered;
- Supports PoE Power up to 30.8 watts for each PoE port;
- Each port supports 51V DC power to PoE Powered Device;
- 99-watt PoE budget;
- Extend Ethernet mode with 250m transmission distance;
- Plug and play design, no configuration required;
Teknik Özellikler
| Standard | IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at |
| MTBF | ≥50,000 hours(about 5 years) |
| Indicators | Link/Act, PoE Status, Power, 1000M |
| Fixed Ports | 8个10/100Base-TX RJ45 Ports(Data/Power) |
| 2个10/100/1000Base-T RJ45 Port(Data) | |
| lightning protection | 6KV |
| Wire-speed forwarding | Support |
| Switching capacity | 5.6 Gbit/s |
| Mac Address Table | 4K MAC |
| PoE Supply | Port 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W)，PoE power type is end-span(1245+, 3678- line pair) |
| in full configuration：<102W | |
| PoE Max Power Supply：99W | |
| Dimensions | 177.5mm*104mm*26mm (W × D × H) |
| Input Voltage | AC：100－240V～ 50/60Hz |
| DC：51V /2.1A （Power Adapter ） | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| One-key Mode | Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation. |
| VLAN Mode: 1-8 port can be isolated each other but 1-8 port can connect to 9/10 port after open VLAN to stop broadcast storm to increase forwarding rate of frame. | |
| Extend Mode: If Extend mode is enabled, VLAN isolation is enabled. Port 1-4 will be isolated respectively (10Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps). | |
| Certification | 3C、FCC、CE、RHOS |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 2
Aktarım Türü : Rj45
Çalışma Mesafesi : 250 Mt.
Montaj Tipi : Desk Mount
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
