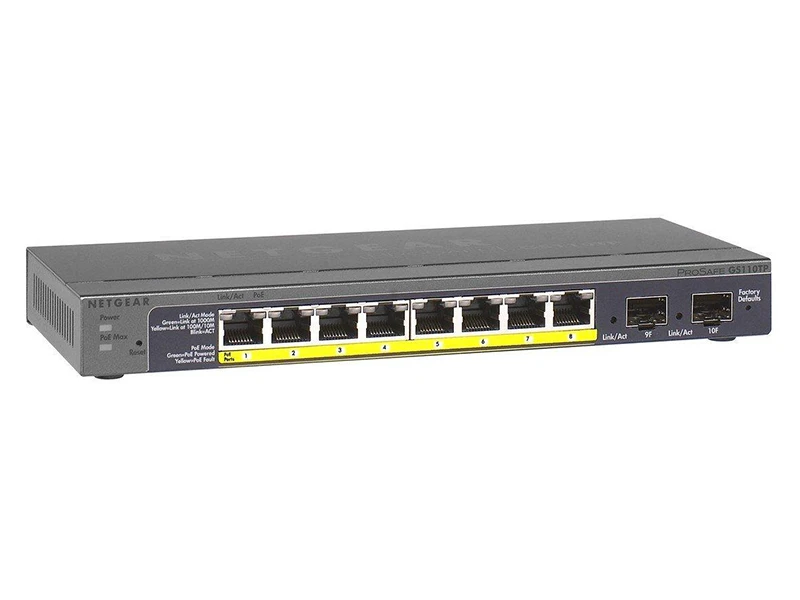

Netgear GS110TP PoE Switch
Teknik Özellikler
| Network Protocol and Standards Compatibility |
| IEEE 802.3i 10BASE-T |
| IEEE 802.3u 100BASE-TX |
| IEEE 802.3ab 1000BASE-T |
| IEEE 802.3z 1000BASE-X |
| IEEE 802.3x full-duplex flow control |
| IEEE 802.3af (DTE Power Via MDI) |
| Power Supply |
| Power consumption: 59.3W maximum |
| Network Ports |
| Eight (8) 10/100/1000 Mbps autosensing + 2 Gigabit SFP uplinks |
| Physical Specifications |
| Dimensions: (W x D x H): 236 x 101.6 x 27 mm (9.3 x 4 x 1.07 in) |
| Weight: 0.7 kg (1.55 lb) |
| Performance Specifications |
| Forwarding modes: Store-and-forward |
| Bandwidth: 20 Gbps full duplex |
| Network latency: Less than 4 μs for 64-byte frames in store-and-forward mode for 1000 Mbps to 1000 Mbps transmission |
| Buffer memory: 512 KB embedded memory per unit |
| Address database size: 4k media access control (MAC) addresses per system |
| Mean time between failures (MTBF): 157,004 hours (~18 years) |
| Acoustic noise: 0 dB |
| Electromagnetic Emissions |
| CE mark, commercial |
| FCC Part 15 Class B |
| VCCI Class B |
| C-Tick |
| Environmental Specifications |
| Operating temperature: 32° to 122° F (0° to 50° C) |
| Storage temperature: -4° to 158° F (-20° to 70° C) |
| Operating humidity: 90% maximum relative humidity, non-condensing |
| Storage humidity: 95% maximum relative humidity, non-condensing |
| Operating altitude: 10,000 ft (3,000 m) maximum |
| Storage altitude: 10,000 ft (3,000 m) maximum |
| Status LEDs |
| Per RJ45 port: Link/activity, speed, PoE status |
| Per SFP port: Link/speed |
| Per device: Power, PoE Max |
| Power Adapter |
| 48V, 1.25A external power adapter, localized to country of sale |
| Electromagnetic Immunity |
| EN 55024 |
| Safety |
| CE mark, commercial |
| cUL IEC 950/EN 60950 |
| CB |
| Administrative Switch Management |
| IEEE 802.1Q static VLAN (64 groups, static) |
| Protected ports |
| IEEE 802.1p Class of Service (CoS) |
| Port-based QoS |
| DSCP-based QoS |
| DiffServ |
| IEEE 802.3ad Link Aggregation (manual or LACP) |
| IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) |
| IEEE 802.1s Multiple Spanning Trees Protocol (MSTP) |
| IEEE 802.1ab Link Layer Discovery Protocol (LLDP) |
| LLDP-MED |
| SNMP v1, v2c, v3 |
| RFC 1213 MIB II |
| RFC 1643 Ethernet Interface MIB |
| RFC 1493 Bridge MIB |
| RMON group 1, 2, 3, 9 |
| Auto voice VLAN |
| DHCP Filtering |
| Auto denial-of-service (DoS) protection |
| HTTP and HTTPS |
| Ping and traceroute |
| Green features: Power saving by cable length |
| Power saving when link down |
| RFC 2131 DHCP client |
| DHCP filtering |
| IEEE 802.1x with Guest VLAN |
| Jumbo frame support |
| Port-based security by locked MAC addresses |
| MAC and IP-based ACL |
| Storm control for broadcast, multicast and unknown unicast packets |
| IGMP snooping v1/v2 |
| Port-based egress rate limiting |
| SNTP |
| Port mirroring support (many-to-one) |
| Web-based configuration |
| Configuration backup/restore |
| Password access control |
| TACACS+ and RADIUS support |
| Syslog |
| Firmware upgradeable |
| PoE (46 Watts of power budget) |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
