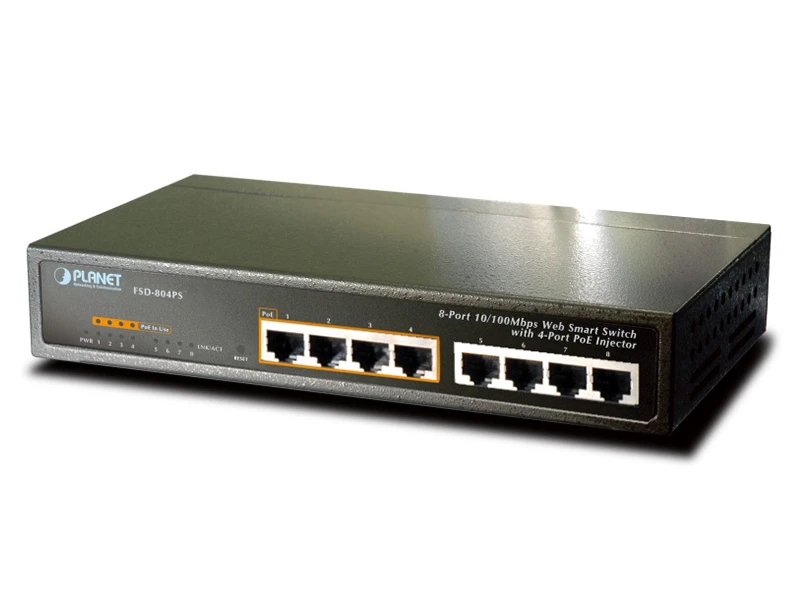

Planet FSD 804PS 10/100 PoE Switch

Teknik Özellikler

Hardware Specifications
8-port RJ-45 for 10/100Base-TX
PoE Inject Port
4-port with PoE injector function, Port-1 to Port-4
LED Display
One power
1-4 port PoE in-use, LNK / ACT
1-8 port LNK / ACT
Switch Architecture
Store and Forward switch architecture
Switch Fabric
1.6Gbps
MAC Address
1K MAC address table with auto learning function
Throughput
1.19Mpps
Power
AC 100~240V, 50/60Hz,
Power Consumption
Max. 65 watts / 221 BTU
Dimensions (W x D x H)
217 x 135 x 43 mm
Weight
1.0 kg
Power over Ethernet
PoE Standard
IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type
End-Span
PoE Power Output
Per Port 48V DC, 350mA . Max. 15.4 watts
Power Pin Assignment
1/2(+), 3/6(-)
PoE Power Budget
60 watts
Layer 2 Function
Management
Web management, SNMP Trap
VLAN
Port-based VLAN and IEEE 802.1Q Tag-based VLAN, up to 16 VLAN groups
QoS
2 priority queues for three type of Class of Service
 • Port-based
 • IEEE 802.1p priority tag
 • TCP / IP header's DSCP classifier
Weighted Round Robin queue scheduling
Bandwidth Control
Inbound Rate Limit and Outbound Traffic shaping
Storm Control
Disable, 12.5%, 25%, 50%, 62.5% 4 levels
Standard Conformance
EMI Safety
FCC Class A, CE
Operating Environment
0~40 degrees C, 10%~95%RH
Storage Environment
-40 ~70 degrees C, 95% RH
Operating Humidity
5% to 90% , relative humidity, non-condensing
Storage Humidity
5% to 90% , relative humidity, non-condensing
Standard Compliance
IEEE 802.3    Ethernet
IEEE 802.3u    Fast Ethernet
IEEE 802.3x    Flow Control
IEEE 802.3af   Power over Ethernet
IEEE 802.1p    Class of Service
IEEE 802.1Q    VLAN Tagging

pdfPlanet FSD 804PS 10/100 PoE Switch Pdf Dosyası330.07 KB



Teknik Kısa

PoE : Hibrid
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Montaj Tipi : Rack Mount
PoE Port Sayısı : Tooltip 4 Port
PoE Güç Bütçesi : 50-130 Watt
