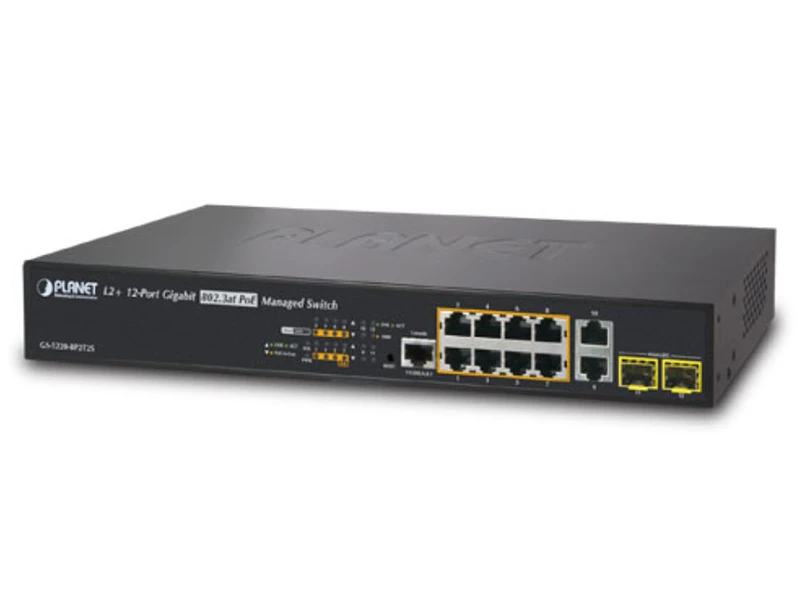

Planet GS 5220 8P2T2S 10/100/1000 PoE Switch
Teknik Özellikler
| Hardware Specifications |
| Copper Ports |
| 10 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots |
| 2 x 100/1000BASE-X SFP interfaces with Port-11 to Port-12 |
| Supports 100/1000Mbps dual mode and DDM |
| PoE Injector Port |
| 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8 |
| Console |
| 1 x RJ45 serial port (115200, 8, N, 1) |
| Switch Architecture |
| Store-and-Forward |
| Switch Fabric |
| 24Gbps / non-blocking |
| Throughput |
| 17.76Mpps @ 64Bytes |
| Address Table |
| 8K entries, automatic source address learning and aging |
| Shared Data Buffer |
| 1392KB |
| Flow Control |
| IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex |
| Jumbo Frame |
| 9KB |
| Reset Button |
| < 5 sec: System reboot |
| > 5 sec: Factory default |
| LED |
| System: |
| Fan Alert (Green), SYS (Green), PWR (Green) |
| 10/100/1000T RJ45 Interfaces (Port 1 to Port 8): |
| 10/100/1000Mbps LNK/ACT (Green) |
| PoE-in-Use (Orange) |
| 10/100/1000T RJ45 Interfaces (Port 9 to Port 10): |
| LNK/ACT (Green) |
| 1000Mbps (Orange) |
| 100/1000Mbps SFP Combo Interfaces (Port 11 to Port 12): |
| LNK/ACT (Green) |
| 1000Mbps (Orange) |
| Power Requirements |
| 100~240V AC, 50/60Hz |
| Power Consumption (Full Loading) |
| 320 watts/1091.9 BTU (max.) |
| ESD Protection |
| 6KV DC |
| Dimensions (W x D x H) |
| 330 x 200 x 43.5 mm, 1U height |
| Weight |
| 2kg |
| Power over Ethernet |
| PoE Standard |
| IEEE 802.3af/802.3at PoE/PSE |
| PoE Power Supply Type |
| End-span |
| PoE Power Output |
| Per port 54V DC, max. 30.8 watts |
| Power Pin Assignment |
| 1/2(+), 3/6(-) |
| PoE Power Budget |
| 240 watts (max.) @ 25 degrees C |
| 200 watts (max.) @ 50 degrees C |
| PoE Ability |
| PD @ 7 watts: 8 units |
| PD @ 15.4 watts: 8 units |
| PD @ 30.8 watts: 8 units |
| Layer2 Management Functions |
| Basic Management Interfaces |
| Console, Telnet, Web browser, SNMP v1, v2c |
| Secure Management Interfaces |
| SSH, SSL, SNMP v3 |
| Port Configuration |
| Port disable/enable |
| Auto-negotiation 10/100/1000Mbps full and half duplex mode selection |
| Flow Control disable/enable |
| Port Status |
| Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring |
| TX/RX/Both |
| Many-to-1 monitor |
| VLAN |
| 802.1Q tagged based VLAN, up to 255 VLAN groups |
| Q-in-Q tunneling |
| Private VLAN Edge (PVE) |
| MAC-based VLAN |
| Protocol-based VLAN |
| Voice VLAN |
| MVR (Multicast VLAN Registration) |
| Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation |
| IEEE 802.3ad LACP/Static Trunk |
| Supports 6 trunk groups with 8 ports per trunk |
| QoS |
| Traffic classification based, strict priority and WRR |
| 8-level priority for switching |
| - Port number |
| - 802.1p priority |
| - 802.1Q VLAN tag |
| - DSCP/TOS field in IP packet |
| IGMP Snooping |
| IGMP (v1/v2/v3) Snooping, up to 255 multicast groups |
| IGMP Querier mode support |
| MLD Snooping |
| MLD (v1/v2) Snooping, up to 255 multicast groups |
| MLD Querier mode support |
| Access Control List |
| IP-based ACL/MAC-based ACL |
| Up to 256 entries |
| Bandwidth Control |
| Per port bandwidth control |
| Ingress: 100Kbps~1000Mbps |
| Egress: 100Kbps~1000Mbps |
| SNMP MIBs |
| RFC 1213 MIB-II |
| RFC 2863 IF-MIB |
| RFC 1493 Bridge MIB |
| RFC 1643 Ethernet MIB |
| RFC 2863 Interface MIB |
| RFC 2665 Ether-Like MIB |
| RFC 2737 Entity MIB |
| RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) |
| RFC 2618 RADIUS Client MIB |
| RFC 3411 SNMP-Frameworks-MIB |
| IEEE 802.1X PAE |
| LLDP |
| MAU-MIB |
| Power over Ethernet MIB |
| Layer 3 Functions |
| IP Interfaces |
| Max. 8 VLAN interfaces |
| Routing Table |
| Max. 32 routing entries |
| Routing Protocols |
| IPv4 software static routing |
| IPv6 software static routing |
| Standards Conformance |
| Regulatory Compliance |
| FCC Part 15 Class A, CE |
| Standards Compliance |
| IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX/100BASE-FX |
| IEEE 802.3z 1000BASE-SX/LX |
| IEEE 802.3ab 1000BASE-T |
| IEEE 802.3x flow control and back pressure |
| IEEE 802.3ad port trunk with LACP |
| IEEE 802.1D Spanning Tree Protocol |
| IEEE 802.1w Rapid Spanning Tree Protocol |
| IEEE 802.1s Multiple Spanning Tree Protocol |
| IEEE 802.1p Class of Service |
| IEEE 802.1Q VLAN tagging |
| IEEE 802.1x Port Authentication Network Control |
| IEEE 802.1ab LLDP |
| IEEE 802.3af Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus |
| RFC 768 UDP |
| RFC 793 TFTP |
| RFC 791 IP |
| RFC 792 ICMP |
| RFC 2068 HTTP |
| RFC 1112 IGMP v1 |
| RFC 2236 IGMP v2 |
| RFC 3376 IGMP v3 |
| RFC 2710 MLD v1 |
| FRC 3810 MLD v2 |
| Environments |
| Operating Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage Temperature: -10 ~ 70 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) |
Planet GS 5220 8P2T2S 10/100/1000 PoE Switch Pdf Dosyası4.76 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2 Plus
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
PoE Güç Bütçesi : 200-400 Watt
PoE Port Sayısı :
8 Port
8 Port
