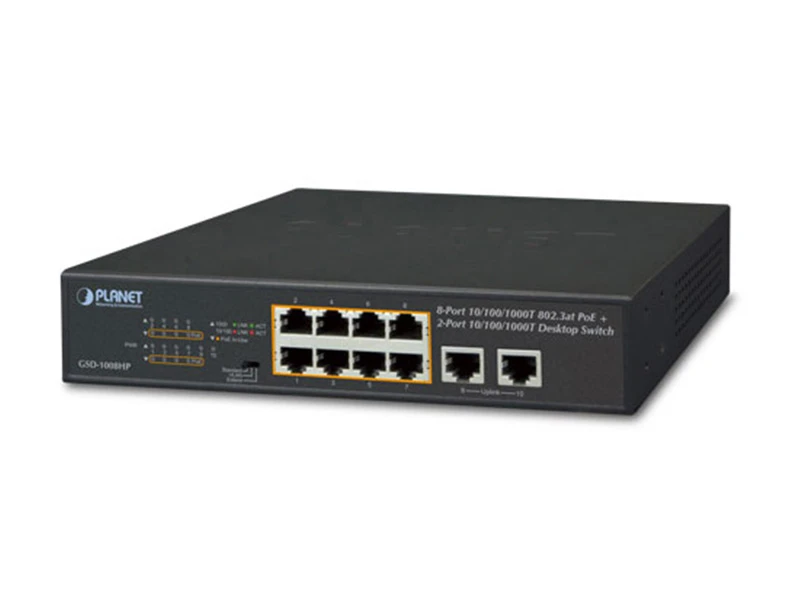

Planet GSD 1008HP PoE Switch

Özellikler

Physical Port

10-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper
8-port IEEE 802.3at PoE+ Injector (Port-1 to Port-8)

Power over Ethernet

Complies with IEEE 802.3at Power+ over Ethernet end-span PSE
Up to 8 ports of IEEE 802.3af/802.3at devices powered
Supports PoE power up to 30.8 watts for each PoE port
Each port supports 55V DC power to PoE powered device
120-watt PoE budget
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m in standard mode with 250m in extended mode

Switching

Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Flow control for full duplex operation and back pressure for half duplex operation
IEEE 802.1Q VLAN transparency
Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation (Only for Port-1 to Port-8)
Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing

Hardware

9-inch desktop size, 1U height, rack mountable
LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)

Teknik Özellikler

Hardware Specifications
Copper Port	10 10/100/1000BASE-T MDI/MDIX Ports
PoE Injector Port	8-port with 802.3at/af PoE injector function with Port-1 to Port-8
Switch Architecture	Store-and-Forward
Switch Fabric	20Gbps/non-blocking
Switch Throughput@64 bytes	14.88Mpps@64 bytes
MAC Address Table	8K entries, automatic source address learning and aging
Maximum Frame Size	9K bytes
Flow Control	IEEE 802.3x pause frame for full-duplex
Flow Control	Back pressure for half-duplex
LED	System:
	Power (Green)
	10/100/1000BASE-T RJ45 interfaces:
	10/100Mbps LNK/ACT (Red)
	1000Mbps LNK/ACT (Green)
	PoE interfaces:
	PoE-in-Use (Orange)
DIP Switch	Selectable operation mode
	Standard
	VLAN
	Extend
Dimensions (W x D x H)	220 x 150 x 43 mm (1U height)
Enclosure	Metal
Weight	1260 g
Power Requirements	AC 100~240V, 50/60Hz, 2.5A max.
Power Consumption/ Dissipation	System On: Max. 5.6 watts/19.1 BTU
	Ethernet Full Loading: Max. 10.6 watts/36.1 BTU
	PoE Full Loading: Max. 139 watts/474.2 BTU
ESD Protection	Contact discharge of 4KV DC
ESD Protection	Air discharge of 6KV DC
Thermal Fan	1
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet/PSE
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
PoE Power Output	Per port 55V DC, 540mA. max. 30 watts
Power Pin Assignment	1/2 (+), 3/6 (-)
PoE Power Budget	120 watts
Max. Number of Class 2 PDs	8
Max. Number of Class 3 PDs	8
Max. Number of Class 4 PDs	4
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX
	IEEE 802.3ab Gigabit 1000BASE-T
	IEEE 802.3x Flow control and back pressure
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
Operating	Temperature: 0 ~ 50 degrees C
Operating	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C
Storage	Relative Humidity: 5 ~ 95% (non-condensing)
