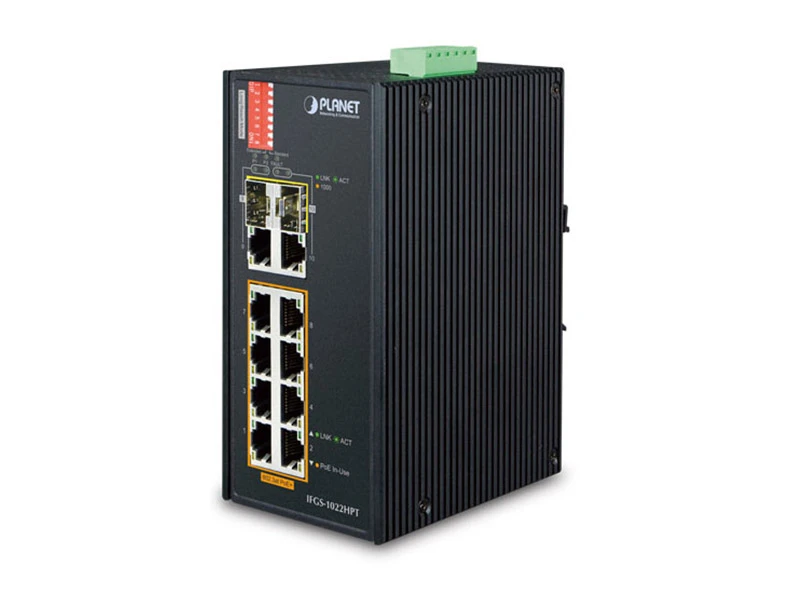

Planet IFGS 1022HPT Endüstriyel PoE Switch
Özellikler
Physical Port
- Eight 10/100BASE-TX Fast Ethernet RJ45 ports with IEEE 802.3at/af PoE+ Injector (Port-1 to Port-8)
- Two 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (Port-9 and Port-10)
- Two 1000BASE-X mini-GBIC/SFP slots for SFP type auto detection (Port-9 and Port-10)
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 8 ports of IEEE 802.3af/802.3at devices powered
- 240-watt PoE budget
- Supports PoE power up to 30 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
Industrial Case and Installation
- IP30 metal case
- DIN rail and wall-mount design
- 48~56V DC, redundant power with polarity reverse protect function
- Supports 6000V DC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
Switching
- Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 16K MAC address table size
- 10K jumbo frame
- IEEE 802.1Q VLAN transparency
- Hardware DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps
- Automatic address learning and address aging
- Supports CSMA/CD protocol
Planet IFGS 1022HPT Endüstriyel PoE Switch Pdf Dosyası1.71 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 4
Aktarım Türü : Rj45
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 200-400 Watt
Montaj Tipi : Wall Mount
Aktarım Türü : Gbit Fiber
Çalışma Mesafesi : 100Mt.
