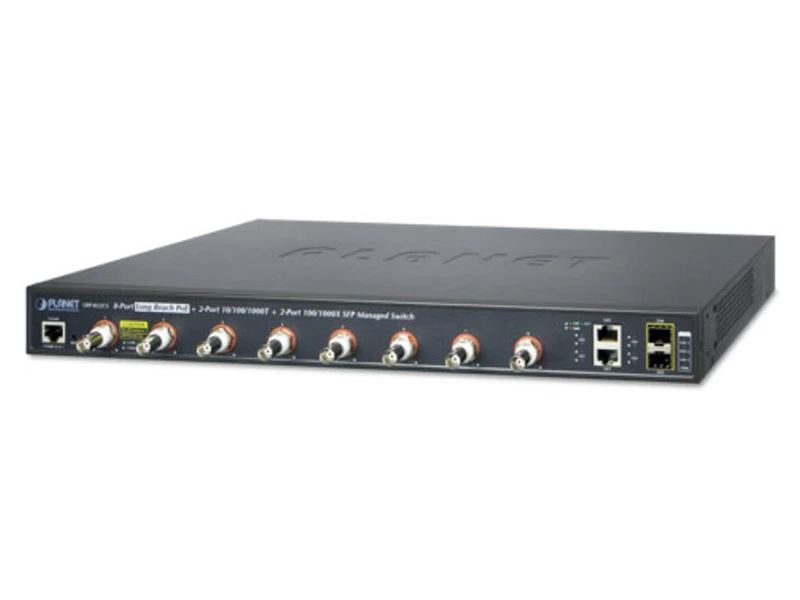

Planet LRP 822CS PoE Managed Switch

Teknik Özellikler

Physical Port
8 100Mbps BNC female ports with Long Reach PoE Injector function
2 10/100/1000BASE-T Gigabit RJ45 copper ports
2 100/1000BASE-X mini-GBIC/SFP slots
RJ45 console interface for switch basic management and setup
Long Reach Power over Ethernet
Supports PoE power up to 36 watts for each PoE port
Remote power feeding up to 1 kilometer with 5C2V/RG6 75Ω coaxial cable
Long Reach PoE Management
Total Long Reach PoE power budget control
Per port Long Reach PoE function enable/disable
Long Reach PoE port power feeding priority
Per Long Reach PoE port power limitation
Long Reach PD alive check
Long Reach PoE schedule
Layer 2 Features
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
Supports VLAN
IEEE 802.1Q tagged VLAN
Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
Protocol VLAN
Voice VLAN
Private VLAN
Management VLAN
GVRP
Supports Spanning Tree Protocol
STP (Spanning Tree Protocol)
RSTP (Rapid Spanning Tree Protocol)
MSTP (Multiple Spanning Tree Protocol)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
Supports Link Aggregation
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 4 trunk groups, up to 4 ports per trunk group
Provides port mirror (many-to-1)
Loop protection to avoid broadcast loops
Quality of Service
Ingress / Egress rate limit per port bandwidth control
Storm control support
Broadcast / Unknown unicast / Unknown multicast
Traffic classification
IEEE 802.1p CoS
ToS / DSCP / IP Precedence of IPv4/IPv6 packets
Strict priority and Weighted Round Robin (WRR) CoS policies
 Multicast
Supports IGMP snooping v2 and v3
Supports MLD snooping v1, v2
IGMP querier mode support
IGMP snooping port filtering
MLD snooping port filtering
Security
Authentication
IEEE 802.1X Port-based network access authentication
Built-in RADIUS client to co-operate with the RADIUS servers
RADIUS / TACACS+ login user access authentication
Access Control List
IPv4 / IPv6 IP-based ACL
MAC-based ACL
MAC Security
Static MAC
MAC filtering
Port security for source MAC address entries filtering
DHCP snooping to filter untrusted DHCP messages
Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
IP source guard prevents IP spoofing attacks
DoS attack prevention
SSH / SSL
Management
IPv4 and IPv6 dual stack management
Switch management interface
Web switch management
Telnet command line interface
SNMP v1, v2c and v3
SSH / SSL secure access
User privilege levels control
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
System maintenance
Firmware upload/download via HTTP / TFTP
Configuration upload/download through Web interface
Dual images
Hardware reset button for system reboot or reset to factory default
SNTP Network Time Protocol
Cable diagnostics
Link Layer Discovery Protocol (LLDP) and LLDP-MED
SNMP trap for interface linkup and linkdown notification
Event message logging to remote Syslog server
Four RMON groups (history, statistics, alarms and events)
PLANET Smart Discovery utility
Smart fan with speed control

pdfPlanet LRP 822CS PoE Managed Switch Pdf Dosyası1.44 MB

Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Rj45
PoE Güç Bütçesi : 200-400 Watt
PoE Port Sayısı : Tooltip 8 Port
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
