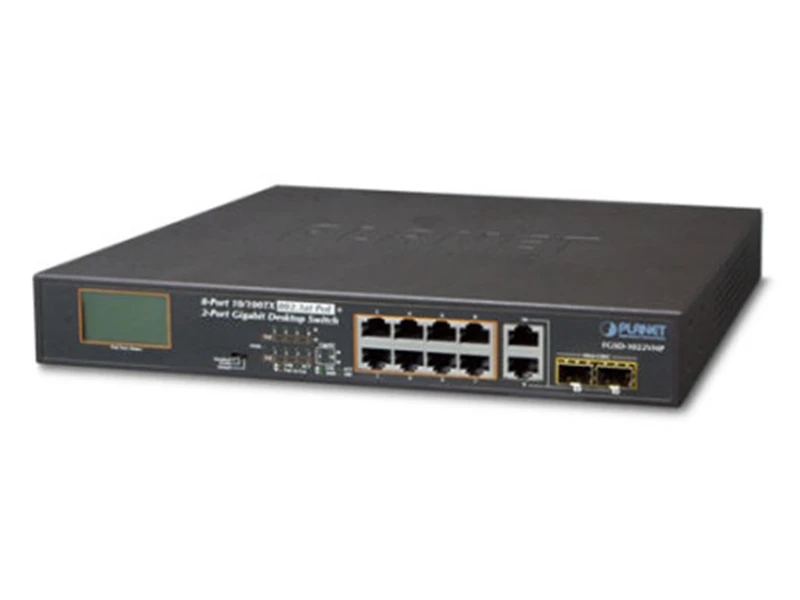

Planet PL FGSD 1022VHP PoE Switch
Özellikler
- 8-port 10/100BASE-TX Fast Ethernet RJ45 copper
- 2 10/100/1000BASE-T TP
- 2 1000BASE-X mini-GBIC SFP shared combo interfaces
- LCD PoE Monitor özelliği
- Up to 8 ports of IEEE 802.3af/802.3at devices powered
Teknik Özellikler
Hardware Specifications | |
802.3af/802.3at PoE Injector Port | 8 |
10/100BASE-TX MDI/MDIX Ports | 8 |
10/100/1000BASE-T MDI/MDIX Ports | 2 (Combo Port) |
1000BASE-X SFP/mini-GBIC Slots | 2 (Combo Port) |
DIP Switch | 1 for standard mode/VLAN mode/extend mode operation |
Switch Architecture | Store-and-Forward |
Switch Fabric | 5.6Gbps/non-blocking |
Switch Throughput@64 bytes | 4.16Mpps@64Bytes |
MAC Address Table | 4K entries |
Maximum Frame Size | 1536 bytes |
Flow Control | IEEE 802.3x pause frame for full-duplex; back pressure for half-duplex |
LED | System: |
Power (Green) | |
10/100BASE-TX RJ45 Interfaces: | |
10/100Mbps LNK/ACT (Green) | |
PoE-in-Use (Orange) | |
10/100/1000BASE-T RJ45/SFP Interfaces: | |
LNK/ACT (Green) | |
100/1000 (Green) | |
LCD Monitor | ■ Total PoE budget |
■ Total PoE usage | |
■ Per port PoE usage | |
■ PD light load protection/PD over load protection | |
■ Short-circuit protection(SCP) | |
■ Power supply Low voltage alarm/High voltage alarm | |
Dimensions (W x D x H) | 180 x 280 x 44 mm (1U height) |
Enclosure | Metal |
Weight | 1.8kg |
Power Requirements | AC 100~240V, 50/60Hz, 2.5A max. |
Power Consumption/Dissipation | Max. 130 watts/443 BTU |
Thermal Fan | 1 |
ESD Protection | Contact Discharge of ±4KV DC |
Air Discharge of ±6KV DC | |
Surge Immunity | ±4KV |
Power over Ethernet | |
PoE Standard | IEEE 802.3af Power over Ethernet/PSE |
IEEE 802.3at Power over Ethernet Plus/PSE | |
PoE Power Supply Type | End-span |
PoE Power Output | Per port 53V DC, 300mA. max. 15.4 watts (IEEE 802.3af) |
Per port 53V DC, 600mA. max. 30 watts (IEEE 802.3at) | |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | 120 watts |
Max. Number of Class 2 PDs | 8 |
Max. Number of Class 3 PDs | 8 |
Max. Number of Class 4 PDs | 4 |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 10BASE-T |
IEEE 802.3u 100BASE-TX | |
IEEE 802.3ab Gigabit 1000BASE-T | |
IEEE 802.3z Gigabit SX/LX | |
IEEE 802.3x flow control and back pressure | |
IEEE 802.3af Power over Ethernet | |
IEEE 802.3at High Power over Ethernet Plus | |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) | |
Storage | Temperature: -10 ~ 70 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
Çalışma Mesafesi : 100Mt.
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 50-130 Watt
Montaj Tipi : Rack Mount
