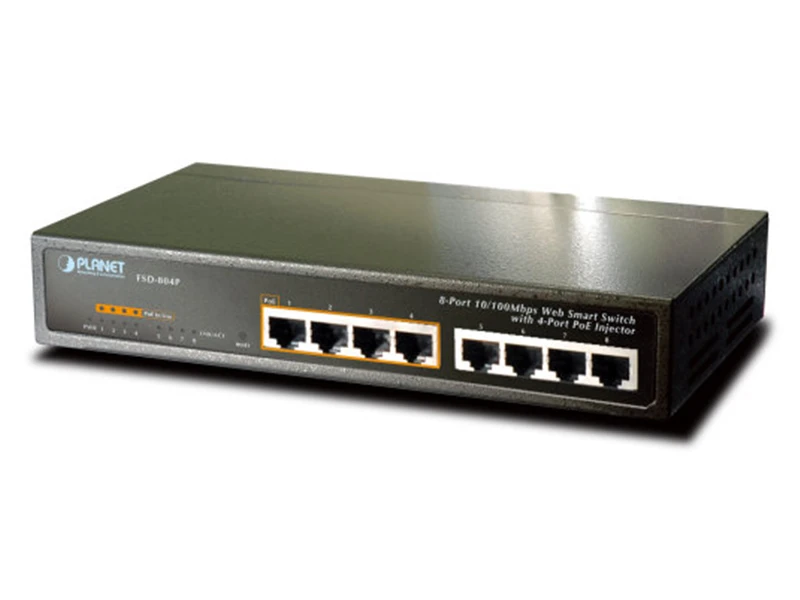

Planet PL FSD 804PS PoE Switch
Özellikler
Teknik Özellikler
| Hardware Specification | |
| Network Connector | 8-Port RJ-45 for 10/100Base-TX |
| PoE Inject Port | 4-Port with PoE injector function, Port-1 to Port-4 |
| LED Display | One power |
| 1-4 port PoE in-use, LNK / ACT | |
| 1-8 port LNK / ACT | |
| Switch Architecture | Store and Forward switch architecture |
| Switch Fabric | 1.6Gbps |
| MAC Address | 1K MAC address table with Auto learning function |
| Throughput | 1.19Mpps |
| Power | AC 100~240V, 50/60Hz, |
| Power Consumption | Max. 65 watts / 221 BTU |
| Dimension (W x D x H) | 217 x 135 x 43 mm |
| Weight | 1.0 kg |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet / PSE |
| PoE Power Supply Type | End-Span |
| PoE Power Output | Per Port 48V DC, 350mA . Max. 15.4 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 60 watts |
| Layer 2 Function | |
| Management | Web management, SNMP Trap |
| VLAN | Port-Based VLAN and IEEE 802.1Q Tag-Based VLAN, up to 16 VLAN groups |
| QoS | 2 priority queues for three type of Class of Service |
| • Port-Based | |
| • IEEE 802.1p priority tag | |
| • TCP / IP header's DSCP classifier | |
| Weighted Round Robin queue scheduling | |
| Bandwidth Control | Inbound Rate Limit and Outbound Traffic shaping |
| Storm Control | Disable, 12.5%, 25%, 50%, 62.5% 4 levels |
| Standard Conformance | |
| EMI Safety | FCC Class A, CE |
| Operating environment | 0~40 degree C, 10%~95%RH |
| Storage environment | -40 ~70 degree C, 95% RH |
| Operating Humidity | 5% to 90% , relative humidity, non-condensing |
| Storage Humidity | 5% to 90% , relative humidity, non-condensing |
| Standard Compliance | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3x Flow Control | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.1p Class of Service | |
| IEEE 802.1Q VLAN Tagging | |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Çalışma Mesafesi : 100Mt.
Montaj Tipi : Rack Mount
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 50-130 Watt
Yönetilebilirlik : Yönetilebilir Layer 2
