Açıklama

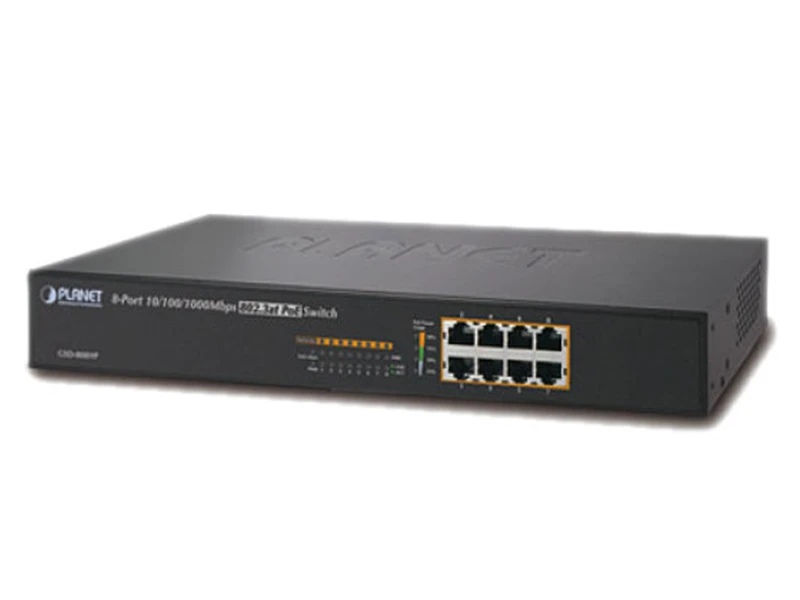

Planet PL GSD 808HP PoE Switch
Özellikler
- 8 Port 10/100/1000Base-T IEEE 802.3at/af PoE injector
- Per port 30.8 watt
- PoE Power Budget 130 watt
- Up to 8 IEEE 802.3af / IEEE 802.3at devices powered
- Supports PoE Power up to 30 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- PoE Usage Alarm LED
- Remote power feeding up to 100m
Teknik Özellikler
| Hardware Specification | |
| Hardware Version | 4 |
| Network Connector | 8-Port RJ45 for 10/100/1000Base-TX |
| PoE Inject Port | 8-Port with 802.3af / 802.3at PoE injector function |
| LED Display | System: Power (Green) |
| PoE Usage Alarm: | |
| • 1-4 (Orange) | |
| • 5-8 (Orange) | |
| Per port : | |
| • PoE in-use (Green) | |
| • LNK/ACT (Green) | |
| Switch Architecture | Store and Forward switch architecture |
| MAC Address | 8K MAC address table with auto learning function |
| Switch Fabric | 16Gbps |
| Switch Throughput | 11.9Mpps@64Bytes |
| Power Requirements | 100~240V AC, 50/60Hz, 2A (max.) |
| Power Consumption | Max. 150 Watts / 511 BTU |
| Dimensions (W x D x H) | 280 x 180 x 44mm |
| Weight | 1.67kg |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet / PSE |
| IEEE 802.3at Enhancement Power over Ethernet / PSE | |
| PoE Power Output | Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) |
| Per Port 52V DC, 590mA. max. 30 watts (IEEE 802.3at) | |
| PoE Power Supply Type | End-Span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 130 watts |
| Max. number of Class 2 PD | 8 |
| Max. number of Class 3 PD | 8 |
| Max. number of Class 4 PD | 4 |
| Environment | |
| Operating environment | 0 ~ 50 degrees C |
| Storage environment | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Standard Conformance | |
| Standard Compliance | IEEE 802.3: Ethernet |
| IEEE 802.3u: Fast Ethernet | |
| IEEE 802.3ab: Gigabit Ethernet | |
| IEEE 802.3x: Flow Control | |
| IEEE 802.3af: Power over Ethernet | |
| IEEE 802.3at: Enhancement Power over Ethernet | |
| IEEE 802.3az: Energy-Efficient Ethernet | |
| EMI Safety | FCC Class A, CE |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
PoE Güç Bütçesi : 50-130 Watt
PoE Port Sayısı :
8 Port
8 Port Montaj Tipi : Rack Mount
Çalışma Mesafesi : 100Mt.
