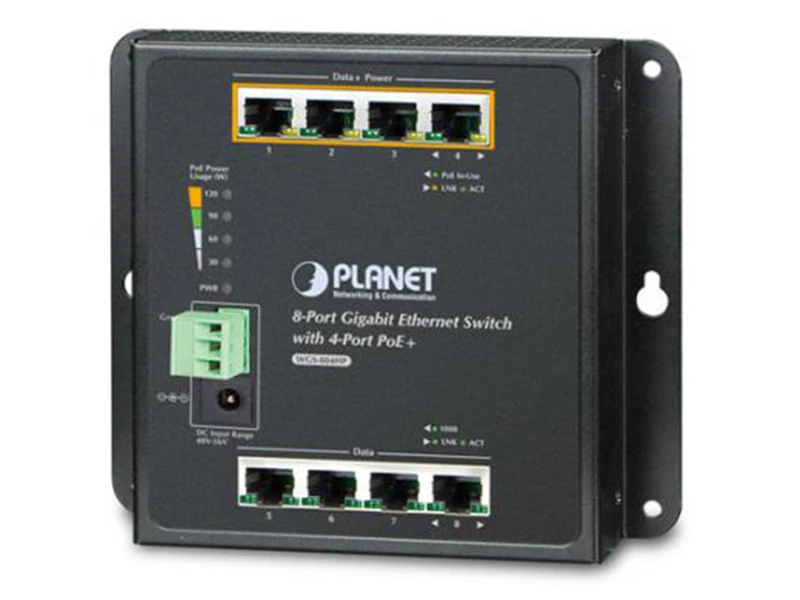

Planet WGS 804HP PoE Switch
Özellikler
Physical Port
- 8-Port 10/100/1000BASE-T Gigabit RJ-45 copper with 4-Port IEEE 802.3at / af PoE Injector (Port-1 to Port-4)
- Complies with IEEE 802.3at High Power over Ethernet end-span PSE
- Backward compliant with IEEE 802.3af Power over Ethernet end-span PSE
- Up to 4 ports of IEEE 802.3af / 802.3at devices powered
- Supports PoE Power up to 30.8 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
Layer 2 Features
- High performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 9K Jumbo frame supports in 1000Mbps duplex mode
- Automatic address learning and address aging
Industrial Case / Installation
- Compact size, wall-mounted, magnetic wall mount and DIN-rail design
- IP30 metal chassis
- Supports -10 to 60 degrees C operating temperature
- Supports EFT 6000VDC protection for power line
- Supports ESD 6000VDC Ethernet protection
- LED indicators for real-time PoE usage
- 48V~56V DC input range for booting with polarity reverse protect function
Teknik Özellikler
Hardware Specifications | |
Network Connector | 8-Port RJ45 for 10/100/1000BASE-T |
PoE Inject Port | 4-Port with 802.3af / 802.3at PoE injector function (Port-1 to Port-4) |
Switch Architecture | Store and forward |
MAC Address Table | 8K MAC address table with auto learning function |
Data Buffer | 1Mbit |
Switch Fabric | 16Gbps / non-blocking |
Switch Throughput | 11.9Mpps@64Bytes |
Jumbo Frame | 9Kbytes |
Flow Control | IEEE 802.3x pause frame for full duplex |
Back pressure for half duplex | |
LED Indicators | Power LED: Power (Green) |
PoE Power Usage LED: 30W, 60W, 90W, 120W (Green) | |
PoE Port(Port-1 to Port-4): PoE-in-Use (Orange) | |
LNK/ACT (Green) | |
10/100/1000BASE-TX Port (Port-5 to Port-8): 1000 (Green) | |
LNK/ACT (Green) | |
Connector | Removable 3-pin terminal block for power input |
- Pin 1/2 for DC Power | |
- Pin 3 for earth ground | |
DC power jack with 2.0mm central pole | |
Power Requirements | 48~56V DC, 3A (max.) |
Power Consumption | 140 watts / 478BTU |
ESD Protection | 6KV DC |
EFT Protection | 6KV DC |
Enclosure | IP30 metal |
Dimensions (W x D x H) | 148 x 24.2 x 134 mm |
Weight | 510g |
Installation | Wall mount, magnetic wall mount and DIN-rail kit |
Power over Ethernet | |
PoE Standard | IEEE 802.3af / 802.3at Power over Ethernet PSE |
PoE Power Supply Type | End-span |
PoE Power Output | IEEE 802.3af Standard |
- Per port 48V~56V DC (depending on the power supply), max. 30 watts | |
IEEE 802.3at Standard | |
- Per port 50V~56V DC (depending on the power supply), max. 30 watts | |
Power Pin Assignment | 1/2(+), 3/6(-) |
* PoE Power Budget | 120 watts (depends on power input) |
Max. Number of Class 2 PD | 4 |
Max. Number of Class 3 PD | 4 |
Max. Number of Class 4 PD | 4 |
Standard Conformance | |
Standard Compliance | IEEE 802.3: Ethernet |
IEEE 802.3u: Fast Ethernet | |
IEEE 802.3ab: Gigabit Ethernet | |
IEEE 802.3x: Flow Control | |
IEEE 802.3af: Power over Ethernet | |
IEEE 802.3at: High Power over Ethernet | |
Regulation Compliance | FCC Part 15 Class A, CE |
Stability Testing | IEC 60068-2-32 (Free fall) |
IEC 60068-2-27 (Shock) | |
IEC 60068-2-6 (Vibration) | |
Environment | |
Operating | Temperature: -10 ~ 60 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) | |
Storage | Temperature: -20 ~ 70 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) | |
Accessory | |
Standard Accessories | User’s manual x1 |
Magnetic kit x 1 | |
DIN-rail kit x 1 | |
Wall-mounted Kit x 1 | |
Dust cap x 8 | |
3-pin Terminal Block Connector x 1 |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Çalışma Mesafesi : 100Mt.
Montaj Tipi : Wall Mount
PoE Port Sayısı : 4 Port
PoE Güç Bütçesi : 50-130 Watt
PoE : Hibrid
