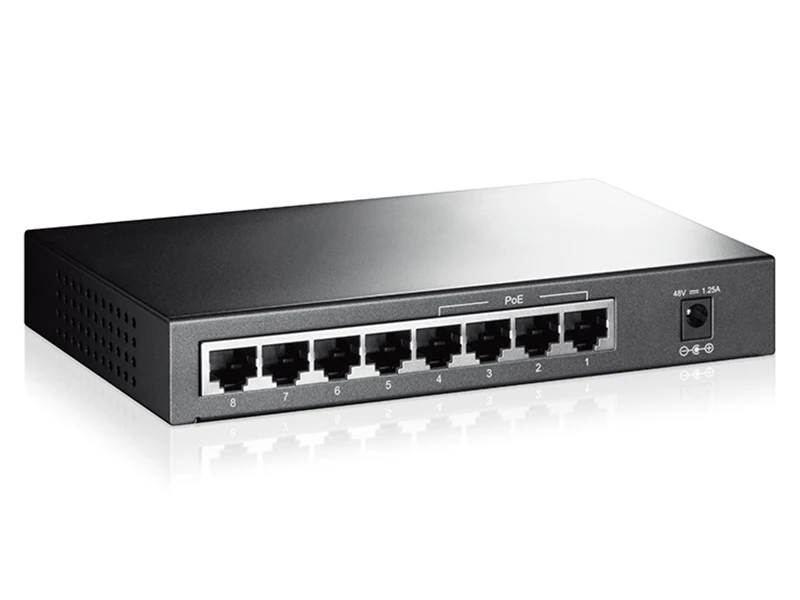

TP-LINK TL SF1008P 10/100 PoE Switch
Özellikler
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 57W for all PoE ports
- Supports PoE IEEE 802.3af compliant PDs
- Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 2K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity
- External power adapter supply
Teknik Özellikler
| HARDWARE FEATURES | |
| Interface | 8 10/100Mbps RJ45 Ports |
| AUTO Negotiation/AUTO MDI/MDIX | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| Fan Quantity | Fanless |
| Power Consumption | Maximum (PoE on): 60.2W (220V/50Hz) |
| Maximum (PoE off): 3.2W (220V/50Hz) | |
| External Power Supply | External Power Adapter(Output: 48VDC / 1.25A) |
| PoE Ports (RJ45) | Standard: 802.3 af compliant |
| PoE Ports: Port1- Port4 | |
| Power Supply: 57W | |
| Backbound Bandwidth | 1.6Gbps |
| Mac Address Table | 2K |
| Dimensions ( W x D x H ) | 6.7*3.9*1.1 in. (171*98*27 mm) |
| Max Power Consumption | 2.66(220/50Hz. no PD connected) |
| 65.92(220/50Hz. with 57W PD connected) | |
| Max Heat Dissipation | 9.08BTU/h(no PD connected) |
| 224.92BTU/h(with 57W PD connected) | |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af Compliant PDs |
| Priority Function | |
| Mac Address Auto-Learning And Auto-Aging | |
| IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode | |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SF1008P, Power Adapter, User Guide |
| Consumption | 2.3 watts (max. no PD connected) |
| 59.3 watts (max. with 57w PD connected) | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
