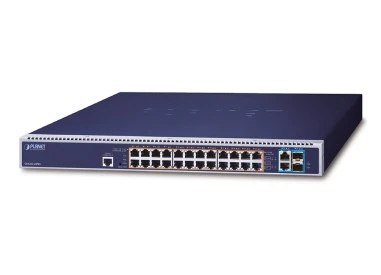

Planet MGSW-28240F Layer 3 Ethernet Switch

Teknik Özellikler

Hardware Specifications
Copper Ports	4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with Port-1 to Port-4
SFP Ports	14 100/1000BASE-X SFP interfaces (Port-1 to Port-14)
	Compatible with 100BASE-FX SFP transceiver
	10 100/1000/2500BASE-X SFP interfaces (Port-15 to Port-24)
	Compatible with 100BASE-FX and 2500BASE-X SFP transceiver
SFP+ Ports	4 10GbBASE-SR/LR SFP+ interfaces (Port-25 to Port-28)
SFP+ Ports	Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver
Console	1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Reset Button	< 5 sec: System reboot
Reset Button	> 5 sec: Factory default
Dimensions (W x D x H)	440 x 200 x 44.5 mm, 1U height
Weight	2.935kg
Power Consumption	AC input: Max. 36.5 watts/125.2 BTU
Power Consumption	DC input: Max. 38.7 watts/132.7 BTU
Power Requirements – AC	AC 100~240V, 50/60Hz 1A
Power Requirements – DC	DC 36~60V, 1.2A
DI and DO	2 digital input (DI):
	Level 0: -24~2.1V
	Level 1: 2.1~24V
	Max. input current: 10mA
	2 digital output (DO): Open collector to 24VDC, 100mA
EFT Protection	6KV DC
ESD Protection	6KV DC
LED Indicator	System:
	AC (Green), DC1 (Green), DC2 (Green), Fault (Red)
	Ring (Green), R.O. (Green)
	10/100/1000T RJ45 Interfaces (Port 1 to Port 4):
	1000Mbps LNK/ACT (Green)
	10/100Mbps LNK/ACT (Amber)
	100/1Gbps SFP Combo Interfaces (Port 1 to Port 14):
	1000Mbps LNK/ACT (Green)
	100Mbps LNK/ACT (Amber)
	100/1G/2.5Gbps SFP Combo Interfaces (Port 15 to Port 24):
	1G/2.5Gbps LNK/ACT (Green)
	100Mbps LNK/ACT (Amber)
	1G/2.5G/10Gbps SFP+ Interfaces (Port 25 to Port 28):
	10Gbps LNK/ACT (Green)
	1G/2.5Gbps LNK/ACT (Amber)
Switching Specifications
Switch Architecture	Store-and-Forward
Switch Fabric	158Gbps/non-blocking
Throughput	117Mpps@64Bytes
Address Table	32K entries, automatic source address learning and aging
Shared Data Buffer	32M bits
Flow Control	IEEE 802.3x pause frame for full duplex
Flow Control	Back pressure for half duplex
Jumbo Frame	10K bytes
Layer 3 Functions
IP Interfaces	Max. 128 VLAN interfaces
Routing Table	Max. 128 routing entries
Routing Protocols	IPv4 hardware static routing
	IPv6 hardware static routing
	OSPFv2 dynamic routing
Layer 2 Management Functions
Port Configuration	Port disable/enable
	Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
	Flow control disable/enable
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port Mirroring	TX/RX/Both
Port Mirroring	Many-to-1 monitor
VLAN	IEEE 802.1Q tagged VLAN
	IEEE 802.1ad Q-in-Q tunneling
	Private VLAN Edge (PVE)
	MAC-based VLAN
	Protocol-based VLAN
	Voice VLAN
	IP Subnet-based VLAN
	MVR (Multicast VLAN registration)
	Up to 4K VLAN groups, out of 4096 VLAN IDs
	GVRP
Link Aggregation	IEEE 802.3ad LACP/static trunk
Link Aggregation	14 trunk groups with 16 ports per trunk group
Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol
	IEEE 802.1w Rapid Spanning Tree Protocol
	IEEE 802.1s Multiple Spanning Tree Protocol
QoS	Traffic classification based, strict priority and WRR
	8-level priority for switching:
	Port number
	802.1p priority
	802.1Q VLAN tag
	DSCP/ToS field in IP packet
IGMP Snooping	IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP Snooping	IGMP querier mode support
MLD Snooping	MLD (v1/v2) snooping, up to 255 multicast groups
MLD Snooping	MLD querier mode support
Bandwidth Control	Per port bandwidth control
	Ingress: 100Kbps~1000Mbps
	Egress: 100Kbps~1000Mbps
Ring	Supports ERPS, and complies with ITU-T G.8032
Ring	Recovery time < 10ms
Synchronization	IEEE 1588v2 PTP (Precision Time Protocol)
	Peer-to-peer transparent clock
	End-to-end transparent clock
Security Functions
Access Control List	IP-based ACL/MAC-based ACL
	ACL based on:
	MAC Address
	IP Address
	Ethertype
	Protocol Type
	VLAN ID
	DSCP
	802.1p Priority
	Up to 256 entries
Security	Port security
	IP source guard
	Dynamic ARP inspection
	Command line authority control based on user level
AAA	RADIUS client
AAA	TACACS+ client
Network Access Control	IEEE 802.1x port-based network access control
	MAC-based authentication
	Local/RADIUS authentication
Switch Management
Basic Management Interfaces	Local console and Telnet
	Web browser
	SNMP v1, v2c
Secure Management Interfaces	SSHv2
	TLSv1.2
	SNMPv3
System Management	Firmware upgrade by HTTP protocol through Ethernet network
	Configuration upload/download through HTTP
	Remote syslog
	System log
	LLDP protocol
	NTP
	PLANET Smart Discovery Utility
	PLANET NMS-500 and NMS-1000V hardware-based controller
	PLANET CloudViewer app
Event Management	Remote syslog
	Local system log
	SMTP
SNMP MIBs	RFC 1213 MIB-II
	RFC 1493 Bridge MIB
	RFC 1643 Ethernet MIB
	RFC 2863 Interface MIB
	RFC 2665 Ether-Like MIB
	RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
	RFC 2737 Entity MIB
	RFC 2618 RADIUS Client MIB
	RFC 2863 IF-MIB
	RFC 2933 IGMP-STD-MIB
	RFC 3411 SNMP-Frameworks-MIB
	RFC 4292 IP Forward MIB
	RFC 4293 IP MIB
	RFC 4836 MAU-MIB
	IEEE 802.1X PAE
	LLDP
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX/100BASE-FX
	IEEE 802.3z Gigabit SX/LX
	IEEE 802.3ab Gigabit 1000T
	IEEE 802.3bz 2.5GBASE-X
	IEEE 802.3ae 10Gb/s Ethernet
	IEEE 802.3x flow control and back pressure
	IEEE 802.3ad port trunk with LACP
	IEEE 802.1D Spanning Tree Protocol
	IEEE 802.1w Rapid Spanning Tree Protocol
	IEEE 802.1s Multiple Spanning Tree Protocol
	IEEE 802.1p Class of Service
	IEEE 802.1Q VLAN tagging
	IEEE 802.1X Port Authentication Network Control
	IEEE 802.1ab LLDP
	RFC 768 UDP
	RFC 793 TFTP
	RFC 791 IP
	RFC 792 ICMP
	RFC 2068 HTTP
	RFC 1112 IGMP v1
	RFC 2236 IGMP v2
	RFC 2328 OSPF v2
	RFC 3376 IGMP v3
	RFC 2710 MLD v1
	RFC 3810 MLD v2
	ITU G.8032 Ethernet Ring Protection Switching
Environment
Operating	Temperature: -10 ~ 60 degrees C for AC power input
	-40 ~ 75 degrees C for DC power input
	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -40 ~ 80 degrees C
Storage	Relative Humidity: 5 ~ 95% (non-condensing)
