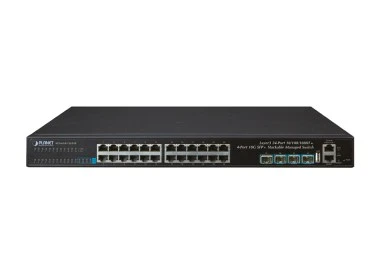

Planet SGS-6341-24T4X Layer 3 Ethernet Switch

Teknik Özellikler

Hardware Specifications
Hardware Version	2
Copper Ports	24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP+ Slots	4 10GBASE-SR/LR SFP+ interfaces (port-25 to port-28)
SFP+ Slots	Compatible with 1000BASE-SX/LX/BX SFP transceiver
Console	1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-forward
Switch Fabric	128Gbps/non-blocking
Switch Throughput	95.23Mpps
Address Table	16K MAC address table with auto learning function
ARP Table	4K
Routing Table	1024 (IPv4 + IPv6)
IP Interface	1024
ACL Table	1024
Shared Data Buffer	1.5MB
Flow Control	Back pressure for half duplex
Flow Control	IEEE 802.3x pause frame for full duplex
Jumbo Frame	10KB
LED	System:
	PWR/DC/MGMT/SYS
	Ports:
	10/100/1000T RJ45 Port: LNK/ACT
	1/10G SFP+ slot: LNK/ACT
Dimensions (W x D x H)	440 x 240 x 43.6 mm, 1U height
Weight	3170g
Power Consumption	26 watts/88.66 BTU
Power Requirements	AC 100~240V, 50/60Hz
Fan	Fanless design
IPv4 Layer 3 Functions
IP Routing Protocol	Static route
	RIPv1/v2
	OSPFv2
	BGPv4
	Policy-based routing (PBR)
	LPM routing (MD5 authentication)
	Hardware-based Layer 3 routing
Multicast Routing Protocol	IGMP v1/v2/v3
	DVMRP
	PIM-DM/SM
	PIM-SSM
Layer 3 Protocol	VRRP v1/v3
	ARP
	ARP Proxy
	IGMP Proxy
IPv6 Layer 3 Functions
IP Routing Protocol	RIPng
	OSPFv3
	BGPv4+
	IPv6 LPM Routing
	IPv6 Policy-based Routing (PBR)
	IPv6 VRRPv3
	IPv6 URPF
	IPv6 RA
	Hardware-based Layer 3 routing
Multicast Routing Protocol	PIM-SM/DM for IPv6
	MLD for IPv6 (v1)
	MLDv1/v2
	MLD Snooping, 6 to 4 Tunnels
	IPv6 Any Cast RP
	Multicast receive control
	Illegal multicast source detect
Layer 3 Protocol	Configured Tunnels
	ISATAP
	GRE Tunnel
Other	ICMPv6,ND,DNSv6
Layer 2 Function
Port Configuration	Port disable/enable
	Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
	Flow control disable/enable
	Bandwidth control on each port
	Port loopback detect
Port Status	Display each port’s speed duplex mode, link status, flow control status and auto negotiation status
VLAN	802.1Q tagged based VLAN, up to 4K VLAN groups
	802.1ad Q-in-Q (VLAN stacking)
	GVRP for VLAN management
	Private VLAN Edge (PVE) supported
	Protocol-based VLAN
	MAC-based VLAN
	IP subnet VLAN
Bandwidth Control	TX/RX/Both
Link Aggregation	IEEE 802.3ad LACP/static trunk
Link Aggregation	Supports 128 groups with 8 ports per trunk group
QoS	8 priority queues on all switch ports
	Supports strict priority and Weighted Round Robin (WRR) CoS policies
	Traffic classification:
	- IEEE 802.1p CoS/ToS
	- IPv4/IPv6 DSCP
	- Port-based WRR
Ring	Supports ITU-G G.8032 ERPS
Multicast	IPv4 IGMP v1/v2/v3 snooping
	IPv4 Querier mode support
	IPv6 MLD v1/v2 snooping
	Multicast VLAN Register (MVR)
	Up to 4K multicast groups (IPv4 + IPv6)
Access Control List	Supports Standard and Expanded ACL
	IP-based ACL/MAC-based ACL
	Time-based ACL
	Up to 1K entries
Security	Port isolation
	Supports IP + MAC + port binding
	Identification and filtering of L2/L3/L4 based ACL
	Defend against DOS or TCP attacks
	Suppression of broadcast, multicast and unknown unicast packet
	DHCP Snooping, DHCP Option 82
	Command line authority control based on user levels
Authentication	IEEE 802.1x port-based network access control
Authentication	AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS
Management Function
System Configuration	Console, Telnet, SSHv2, Web browser, SSL, SNMP v1, v2c and v3
Secure Management Intefaces	SSHv1/v2, SSL, SNMPv3
Management	Supports both IPv4 and IPv6 addressing
	Supports the user IP security inspection for IPv4/IPv6 SNMP
	Supports MIB and TRAP
	Supports IPv4/IPv6 FTP/TFTP
	Supports IPv4/IPv6 NTP
	Supports RMON 1, 2, 3, 9 four groups
	Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password
	Supports IPv4/IPv6 SSH
	The right configuration for users to adopt RADIUS server’s shell management
	Supports CLI, console, Telnet
	Supports SNMP v1, v2c and v3
	Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area
	Supports Syslog server for IPv4 and IPv6
	Supports TACACS+
	Supports IPv4 and IPv6 DHCP server
IP Cluster (Stacking) Compatibility List	XGS3-24242v2
	XGS3-24042v3
	SGS-6341-24T4Xv2
	SGS-6341-24P4Xv2
	SGS-6341-16S8C4XR
	SGS-6341-48T4X
	XGS-5240-24X2QR
Hardware Stacking Compatibility List	SGS-6341-24T4Xv2
	SGS-6341-24P4Xv2
	SGS-6341-16S8C4XR
	SGS-6341-48T4X
SNMP MIBs	RFC 1213 MIB-II
	RFC 1215 Internet Engineering Task Force
	RFC 1271 RMON
	RFC 1354 IP-Forwarding MIB
	RFC 1493 Bridge MIB
	RFC 1643 Ether-like MIB
	RFC 1907 SNMP v2
	RFC 2011 IP/ICMP MIB
	RFC 2012 TCP MIB
	RFC 2013 UDP MIB
	RFC 2096 IP forward MIB
	RFC 2233 if MIB
	RFC 2452 TCP6 MIB
	RFC 2454 UDP6 MIB
	RFC 2465 IPv6 MIB
	RFC 2466 ICMP6 MIB
	RFC 2573 SNMP v3 notify
	RFC 2574 SNMP v3 vacm
	RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB)
	RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB)
Standard Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX
	IEEE 802.3z Gigabit 1000BASE-SX/LX
	IEEE 802.3ab Gigabit 1000BASE-T
	IEEE 802.3ae 10Gb/s Ethernet
	IEEE 802.3x flow control and back pressure
	IEEE 802.3ad port trunk with LACP
	IEEE 802.1ag CFM
	IEEE 802.1D Spanning Tree Protocol
	IEEE 802.1w Rapid Spanning Tree Protocol
	IEEE 802.1s Multiple Spanning Tree Protocol
	IEEE 802.1p Class of Service
	IEEE 802.1Q VLAN tagging
	IEEE 802.1X port authentication network control
	IEEE 802.1ab LLDP
	RFC 768 UDP
	RFC 783 TFTP
	RFC 793 TCP
	RFC 791 IP
	RFC 792 ICMP
	RFC 2068 HTTP
	RFC 1112 IGMP v1
	RFC 2236 IGMP v2
	RFC 3376 IGMP v3
	RFC 2710 MLD v1
	FRC 3810 MLD v2
	RFC 2328 OSPF v2
	RFC 1058 RIP v1
	RFC 2453 RIP v2
	ITU-T G.8032 ERPS Ring
Environment
Operating	Temperature: 0 ~ 50 degrees C
Operating	Relative Humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C
Storage	Relative Humidity: 5 ~ 90% (non-condensing)
Ordering Information
SGS-6341-24T4X	Layer 3 24-Port 10/100/1000T + 4-Port 10G SFP+ Stackable Managed Switch
