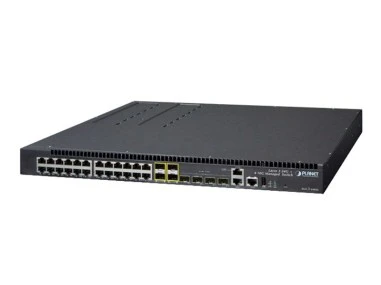

Planet XGS3-24242 Layer 3 Ethernet Switch
Özellikler
Physical Port
- 24-port 100/1000BASE-X mini-GBIC/SFP slots
- 16 10/100/1000BASE-T RJ45 copper ports, shared with port-1 to port-16
- 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
- 2 20Gbps Hardware Stacking ports
- RJ45 to DB9 console interface for switch basic management and setup
- 1 RJ45 Ethernet management port for switch basic management and setup
- 1 USB 2.0 for backup/upload configuration and firmware upgrade
IP Stacking
- Connects with stack member via both Gigabit TP/SFP interface and 10G SFP+ slots
- Single IP address management, supporting up to 24 units stacked together
- Hardware Stacking
- Connects with stack member via QSFP+ slots
- Supporting up to 6 units stacked together
IP Routing Features
- IP routing protocol supports RIPv1/v2, RIPng, OSPFv2/v3, BGP4/4+
- Routing interface provides per VLAN routing mode
- VRRPv1/v3 protocol for redundant routing deployment
- Supports route redistribution
Multicast Routing Features
- Supports PIM-DM (Protocol Independent Multicast – Dense Mode) and PIM-SM (Protocol Independent Multicast – Sparse Mode) and PIM-SSM (Protocol Independent Multicast – Source Specific Multicast)
- Supports DVMRP (Distance Vector Multicast Routing Protocol)
- Supports IGMP v1/v2/v3 and MLD v1/v2
Layer 2 Features
- Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet and IEEE 802.3ae 10Gb/s Ethernet standard
- Supports auto-negotiation and half-duplex/full-duplex modes for all 10BASE-T, 100BASE-TX and 1000BASE-T ports
- Auto-MDI/MDI-X detection on each RJ45 port
- Prevents packet loss flow control
- IEEE 802.3x pause frame flow control in full-duplex mode- Back-pressure flow control in half-duplex mode
- High performance Store-and-Forward architecture, broadcast storm control, port loopback detect
- 32K MAC address table, automatic source address learning and aging
- Supports VLAN
- IEEE 802.1Q tag-based VLAN- GVRP for dynamic VLAN management- Up to 256 VLANs groups, out of 4041 VLAN IDs- Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported- Private VLAN Edge (PVE) supported- GVRP protocol for Management VLAN- Protocol-based VLAN- MAC-based VLAN- IP subnet VLAN
- Supports Link Aggregation
- Maximum 128 trunk groups with up to 8 ports per trunk group- IEEE 802.3ad LACP (Link Aggregation Control Protocol)- Cisco ether-channel (static trunk)
- Supports Spanning Tree Protocol
- IEEE 802.1D Classic Spanning Tree Protocol (STP)- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN- BPDU & root guard
- Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
- Provides port mirror (many-to-1)
Quality of Service
- 8 priority queues on all switch ports
- Supports strict priority and WRR (Weighted Round Robin) CoS policies
- Traffic classification
- IEEE 802.1p CoS/ToS- IPv4/IPv6 DSCP- Port-based WRR
- Strict priority and WRR CoS policies
Multicast
- Supports IPv4 IGMP snooping v1, v2 and v3, and IPv6 MLD v1 and v2 snooping
- Querier mode supports
- Supports Multicast VLAN Register (MVR)
Security
- IEEE 802.1x port-based network access authentication
- MAC-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
- TACACS+ login users access authentication
- IP-based Access Control List (ACL)
- MAC-based Access Control List
- Supports DHCP snooping
- Supports ARP inspection
- IP Source Guard prevents IP spoofing attacks
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- Supports URPF to avoid IP address clone
- IPv6 ND snooping
Management
- Management IP for IPv4 and IPv6
- Switch Management Interface
- Console/Telnet Command Line Interface- Web switch management- SNMP v1, v2c and v3 switch management- SSH/SSL secure access
- BOOTP and DHCP for IP address assignment
- DHCP relay and option 82
- Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
- SNTP (Simple Network Time Protocol) for IPv4 and IPv6
- User privilege levels control
- Syslog server for IPv4 and IPv6
- Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
- Supports ping, trace route function for IPv4 and IPv6
- User Privilege levels control
- Link Layer Discovery Protocol (LLDP) and LLDP-MED
Redundant Power System
- 100~240V AC, -40V~-60V DC (optional) dual redundant power
Teknik Özellikler
| Hardware Specifications | |
| SFP/Mini-GBIC Slots | 24 1000BASE- X SFP interface |
| Compatible with 100BASE-X SFP transceiver | |
| Copper Ports | 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, |
| shared with Port-1 to Port-16 | |
| SFP+/Mini-GBIC Slots | 4 10GBASE-SR/LR SFP+ interface (Port-25 to Port-28) |
| Compatible with 1000BASE-X SFP transceiver | |
| QSFP+ Stacking Slots | 2 20Gbps Hardware Stacking ports via QSFP+ Interface |
| Switch Processing Scheme | Store-and-Forward |
| Switch Fabric | 208Gbps |
| Throughput | 154Mpps@64bytes |
| Address Table | 32K entries |
| Shared Data Buffer | 32Mbits |
| VLAN Table | 4K |
| Routing Table | IPv4 for 16K |
| IPv6 for 6K | |
| Layer 3 Interface | 1K |
| Port Queues | 8 |
| Flow Control | IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex | |
| Jumbo Frame | 16Kbytes |
| LED | System: |
| PWR1, PWR2, Mode, SYS | |
| Ports: | |
| Link/Act | |
| Dimensions (W x D x H) | 440 x 350 x 44.5 mm, 1U height |
| Weight | 4.78kg |
| Power Requirements | AC: 100 ~ 240VAC, 50/60Hz, auto-sensing |
| DC: -48V ~ -60V DC (optional) | |
| Power Consumption | 53 watts (max.) |
| IPv4 Layer 3 functions | |
| IP Routing Protocol | Static route, RIPv1/v2, OSPFv2, BGPv4 |
| Policy-based routing (PBR) | |
| LPM routing (MD5 authentication) | |
| Multicast Routing Protocol | IGMP v1/v2/v3, DVMRP, PIM-DM/SM, PIM-SSM |
| Layer 3 Protocol | VRRP v1/v3, ARP, ARP Proxy |
| Routing Interface | Per VLAN |
| IPv6 Layer 3 functions | |
| IP Routing Protocol | RIPng, OSPFv3, BGPv4+ |
| Multicast Routing Protocol | PIM-SM/DM for IPv6 |
| MLD for IPv6 (v1) | |
| MLDv1/v2 | |
| MLD Snooping, 6 to 4 Tunnels | |
| Multicast receive control | |
| Illegal multicast source detect | |
| Layer 3 Protocol | Configured Tunnels, ISATAP, CIDR |
| Layer 2 Functions | |
| Port Configuration | Port disable/enable |
| Auto-negotiation 10/100/1000Mbps full and half duplex mode selection | |
| Bandwidth control on each port | |
| Port Loopback detect | |
| VLAN | 802.1Q tagged based VLAN, up to 4K VLAN groups |
| Q-in-Q | |
| GVRP | |
| Private VLAN | |
| Voice VLAN | |
| MAC-based VLAN | |
| Protocol-based VLAN | |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) |
| IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) | |
| IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), Spanning Tree by VLAN | |
| Root Guard | |
| BPDU Guard | |
| Link Aggregation | Static trunk |
| IEEE 802.3ad LACP | |
| Supports 128 groups with 8 ports per trunk group | |
| QoS | Traffic classification based, strict priority, SWRR, WRR, DWRR, SDWRR, WRED |
| 8-level priority for switching | |
| - Port number | |
| - 802.1p priority | |
| - DSCP/TOS field in IP packet | |
| Policy-based DiffServ | |
| Multicast | IGMP v1/v2/v3 snooping |
| IGMP proxy | |
| IGMP querier mode support | |
| MLD v1/v2, MLD v1/v2 snooping | |
| Access Control List | Support standard and expanded ACL |
| IP-based ACL/MAC-based ACL | |
| Time-based ACL | |
| ACL pool can be used for QoS classification | |
| Security | Supports MAC+ port binding |
| IPv4/IPv6 + MAC+ port binding | |
| IPv4/IPv6 + port binding | |
| Supports MAC filter | |
| ARP spoofing prevention | |
| ARP scanning prevention | |
| IP source guard | |
| IPv6 ND snooping | |
| Authentication | IEEE 802.1x Port-based network access control |
| AAA Authentication: IPv4/IPv6 over TACACS+/RADIUS | |
| SNMP MIBs | RFC-1213 MIB-II |
| IF-MIB | |
| RFC-1493 Bridge MIB | |
| RFC-1643 Ethernet MIB | |
| RFC-2863 Interface MIB | |
| RFC-2665 Ether-Like MIB | |
| RFC-2674 Extended Bridge MIB | |
| RFC-2819 RMON MIB (Group 1, 2, 3 and 9) | |
| RFC-2737 Entity MIB | |
| RFC-2618 RADIUS Client MIB | |
| RFC-2933 IGMP-STD-MIB | |
| RFC-3411 SNMP-Frameworks-MIB | |
| IEEE 802.1X PAE | |
| LLDP | |
| MAU-MIB | |
| Management Functions | |
| System Configuration | Console, Telnet, SSH, Web browser, SSL, SNMPv1, v2c and v3 |
| Management | Supports the unit for IPv4/IPv6 HTTP and SSL |
| Supports the user IP security inspection for IPv4/IPv6 SNMP | |
| Supports MIB and TRAP | |
| Supports IPv4/IPv6 FTP/TFTP | |
| Supports IPv4/IPv6 NTP | |
| Supports RMOM 1, 2, 3, 9 four group | |
| Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password | |
| Supports IPv4/IPv6 SSH | |
| The right configuration for users to adopt RADIUS server’s shell management | |
| Supports the function for timing-reset bases needs | |
| Supports CLI, Console (RS232), Telnet | |
| Supports SNMPv1/v2c/v3 | |
| Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area | |
| Supports TACACS+ | |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.3z Gigabit SX/LX | |
| IEEE 802.3ab Gigabit 1000BASE-T | |
| IEEE 802.3ae 10 Gigabit Ethernet | |
| IEEE 802.3ba 40GBASE-LR4 | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3ad port trunk with LACP | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.1s Multiple Spanning Tree Protocol | |
| IEEE 802.1p Class of Service | |
| IEEE 802.1Q VLAN tagging | |
| IEEE 802.1x Port Authentication Network Control | |
| IEEE 802.1ab LLDP | |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C |
| Storage | Relative Humidity: 5 ~ 90% (non-condensing) |
| Temperature: -10 ~ 70 degrees C | |
| Relative Humidity: 5 ~ 90% (non-condensing) | |
Planet XGS3-24242 Layer 3 Ethernet Switch Pdf Dosyası20.26 MB
