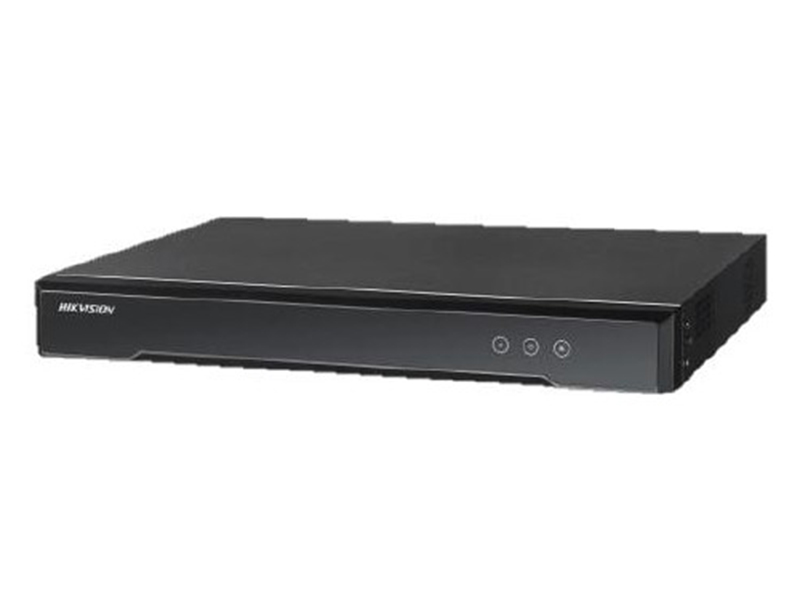

Haikon DS 6708HQHI SATA Video Encoder
Özellikler
Teknik Özellikler
| Video/Audio input | |
| Video Compression: | H.264 |
| Video input: | 8-ch, |
| BNC (1.0 Vp-p, 75 Ω) | |
| Audio compression: | G.711 |
| Audio input: | 4-ch, |
| Line input interface | |
| (2.0 Vp-p, 1 kΩ) | |
| Two-way audio: | 1-ch, RCA (2.0Vp-p, 1kΩ) |
| Video/Audio output | |
| Audio output: | 1-ch, RCA (Linear, 1 KΩ) |
| Encoding resolution: | 1080P/720P/WD1/4CIF/VGA/CIF |
| Frame rate: | 1/16 fps to real-time frame rate |
| Video bit rate: | 32 Kbps to 10 Mbps |
| Audio bit rate: | 64 Kbps |
| Dual Stream: | Support |
| Stream Type: | Video/ Video&Audio |
| Network protocols | |
| Protocols Supported: | IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnPTM, |
| Data storage | |
| Type: | SATA, NAS, ISCSI, IPSAN |
| Capacity: | Up to 6 TB for each disk |
| External interface | |
| Network interface: | 1 RJ-45 10 M / 100 M /1000 Mbps adaptive |
| Ethernet interface | |
| Serial interface: | 1, RS-485; half-duplex |
| SATA interface: | 2 SATA interfaces |
| Alarm in: | 8-ch input |
| Alarm out: | 4-ch output |
| General | |
| Chassis: | 380 mm 1U chassis |
| Power supply: | 12 VDC |
| Consumption: | ≤ 30 W(without HDD) |
| Working temperature: | -10°C~+55°C(14°F~131°F) |
| Working humidity: | 10%~90% |
| Dimension(W×D×H): | 380 mm × 290 mm × 48 mm (14.96" × 11.42" × 1.89") |
| Weight(without HDD): | ≤ 2 Kg (4.41 lb) |
