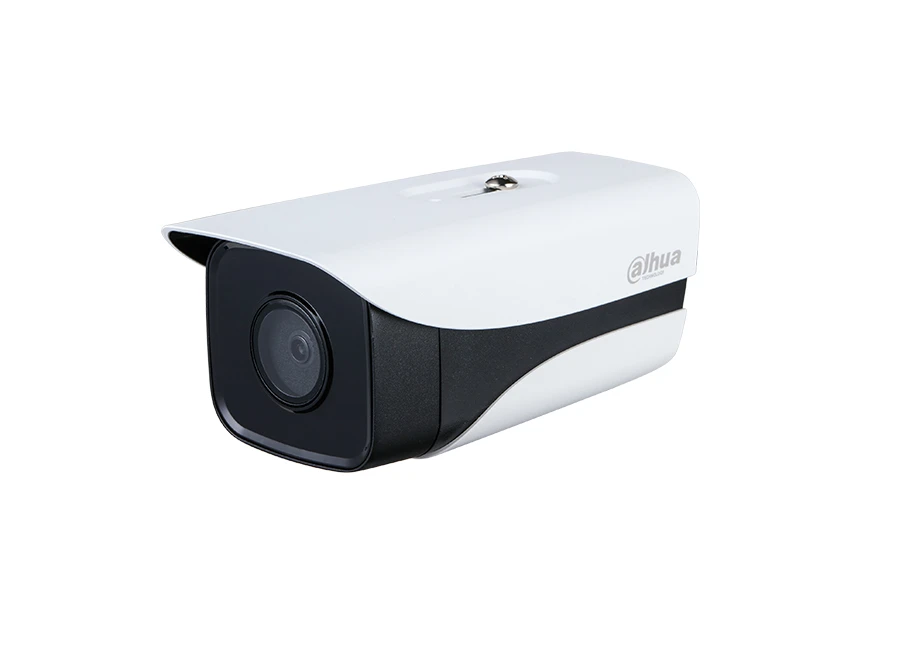

Dahua IPC HFW3441M AS SFC I2 IR IP Bullet Kamera
Özellikler
- 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
- Outputs max. 4MP (2688 × 1520)@30 fps
- H.265 codec, high compression rate, low bit rate
- Built-in IR LED, max. IR distance: 50 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
- Alarm: 2 in, 2 out; Audio: In, out; supports max. 256 G Micro SD card
- 12V DC/PoE power support, 12V power output, max. current 165mA
- IP67 protection
- SMD
- With anti-oil feature on front glass, it supports quick detachment for washing
Teknik Özellikler
| Camera | |||||
| Image Sensor | 1/3” 4Megapixel progressive CMOS | ||||
| Effective Pixels | 2688 (H) ×1520 (V) | ||||
| ROM | 128 MB | ||||
| RAM | 512 MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s | ||||
| Min. Illumination | 0.005 Lux@F1.6 | ||||
| IR Distance | 50m (164.0ft) | ||||
| IR On/Off Control | Auto/Manual | ||||
| IR LEDs Number | 2 (IR LEDs) | ||||
| Lens | |||||
| Lens Type | Fixed focal | ||||
| Mount Type | M12 | ||||
| Focal Length | 3.6 mm; 6 mm; 8 mm | ||||
| Max. Aperture | 3.6 mm, 6 mm, 8 mm: F1.6 | ||||
| Field of View | 3.6 mm: Horizontal: 84°; vertical: 45°; diagonal: 100° | ||||
| 6 mm: Horizontal: 52°; vertical: 28°; diagonal: 61° | |||||
| 8 mm: Horizontal: 40°; vertical: 23°; diagonal: 45° | |||||
| Iris Type | Fixed aperture | ||||
| Close Focus Distance | 3.6 mm: 1.6 m (5.2 ft) | ||||
| 6 mm: 3.2 m (10.5 ft) | |||||
| 8 mm: 4.5 m (14.8 ft) | |||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 3.6mm | 80.0 m(262.5 ft) | 32.0 m(105.0 ft) | 16.0 m(52.5 ft) | 8.0 m(26.3 ft) | |
| 6mm | 120.0 m (393.7 ft) | 48.0 m(157.5 ft) | 24.0 m(78.7 ft) | 12.0 m (39.4ft) | |
| 8 mm | 160.0 m (524.9 ft) | 64.0 m(210.0 ft) | 32.0 m(105.0 ft) | 16.0 m(52.5 ft) | |
| Professional, Intelligent | |||||
| Perimeter Protection | Tripwire; intrusion (Recognition of human and vehicle) | ||||
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||
| Video | |||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG | ||||
| Smart Codec | Yes | ||||
| Video Frame Rate | Main stream (2688 × 1520@1–25/30 fps) | ||||
| sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |||||
| third stream (1280 × 720@1–25/30 fps) | |||||
| Stream Capability | 3 streams | ||||
| Resolution | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||
| Bit Rate Control | CBR/VBR | ||||
| Video Bit Rate | H.264: 3 Kbps–8192 Kbps | ||||
| H.265: 3 Kbps–8192 Kbps | |||||
| Day/Night | Auto(ICR)/Color/B/W | ||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| WDR | 120 dB | ||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D DNR | ||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||
| Region of Interest(RoI) | Yes (4 areas) | ||||
| Smart IR | Yes | ||||
| Image Rotation | °/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) | ||||
| Mirror | Yes | ||||
| Privacy Masking | 4 areas | ||||
| Audio | |||||
| Audio Compression | G.711a; G.711Mu; G726; AAC | ||||
| Network | |||||
| Network | RJ-45 (10/100 Base-T) | ||||
| Protocol | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP | ||||
| Interoperability | ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec | ||||
| Scene Self-adaptation | Yes | ||||
| User/Host | 20 (Total bandwidth: 64 M) | ||||
| Edge Storage | FTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS | ||||
| Browser | IE: IE8, IE9, IE11 | ||||
| Chrome | |||||
| Firefox | |||||
| Management Software | Smart PSS, DSS, DMSS | ||||
| Mobile Phone | IOS; Android | ||||
| Certification | |||||
| Certifications | CE-LVD: EN60950-1 | ||||
| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | |||||
| FCC: 47 CFR FCC Part 15, Subpart B | |||||
| UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | |||||
| Port | |||||
| Audio Input | 1-channel (RCA port) | ||||
| Audio Output | 1-channel (RCA port) | ||||
| Alarm Input | 2 channels in: 5mA 3V–5V DC | ||||
| Alarm Output | 2 channels out: 300mA 12V DC | ||||
| Power | |||||
| Power Supply | 12V DC/PoE (802.3af) | ||||
| Power Consumption | <11.6W | ||||
| Environment | |||||
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than≤95% | ||||
| Strorage Conditions | -40°C to +60°C (-40°F to +140°F) | ||||
| Ingress Protection | IP67 | ||||
| Structure | |||||
| Casing | Metal + Plastic | ||||
| Dimensions | 194.4 mm × 96.6 mm × 89.5 mm | ||||
| (7.7" × 3.8" × 3.5") (L × W × H) | |||||
| Net Weight | 755g (1.7 lb) | ||||
| Gross Weight | 875g (1.9 lb) | ||||
Dahua IPC HFW3441M AS SFC I2 IR IP Bullet Kamera Pdf Dosyası465.99 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 4MP
Irled : Var
