Açıklama

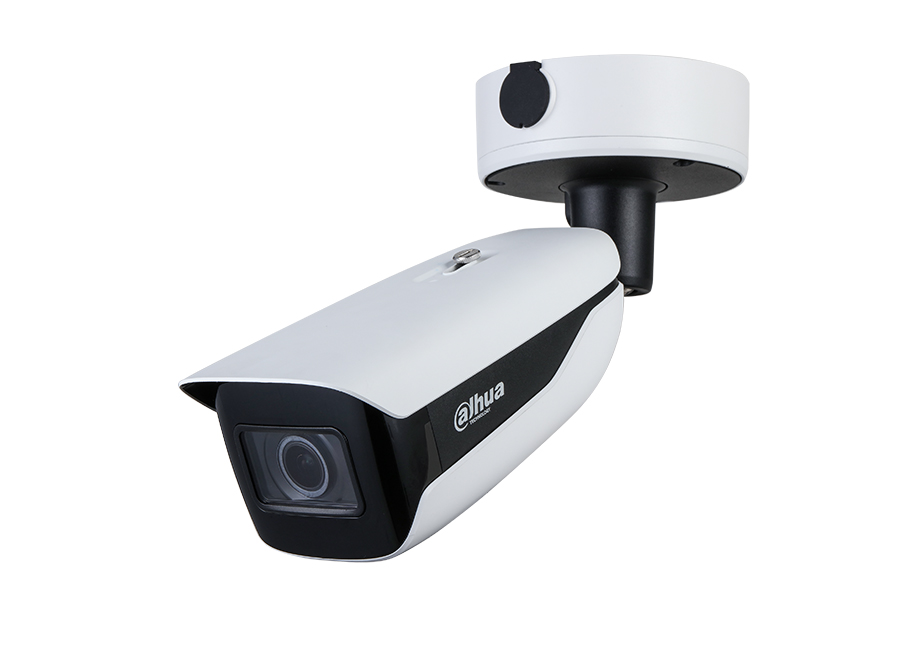

Dahua IPC HFW7442H ZFR IR IP Bullet Kamera
Özellikler
- 4MP, 1/1.8" CMOS image sensor,low illuminance, high image definition
- Max outputs 4MP (2688 × 1520) @25 fps/30 fps, meets high frame rate requirement, and max. supports 60 fps · H.264 & H.265 coding, high compression ration · WDR, day/night, 3D DNR, AWB, HLC, BLC
- ROI, SVC, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- With deep learning algorithm, it supports people counting, face recognition, perimeter protection,and video metadata.
- 24V AC/POE/12V DC power support
- Five streams for three-channel HD video dispaly · IP67, IK10 protection grad
Teknik Özellikler
Camera | |||||
Image Sensor | 1/1.8” 4Megapixel progressive CMOS | ||||
Effective Pixels | 2688 (H) × 1520 (V) | ||||
ROM | 16 GB | ||||
RAM | 2 GB | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s | ||||
Min. Illumination | 0.001 Lux@F1.2 (Color, 1/3 s, 30IRE) | ||||
IR Distance | Distance up to 50 m (164.04 ft) | ||||
IR On/Off Control | Auto | ||||
IR LEDs Number | 4 (IR LEDs) | ||||
Pan/Tilt/Rotation Range | Horizontal: 0°–360° | ||||
Vertical: 0°–90° | |||||
Rotation: 0°–360° | |||||
Lens | |||||
Lens Type | Electric zoom | ||||
Mount Type | Module interface | ||||
Focal Length | 2.7–12 mm | ||||
Max. Aperture | F1.2 | ||||
Field of View | Horizontal:111° (W)–47° (T) | ||||
Vertical: 59° (W)–26° (T) | |||||
Diagonal: 135° (W)–51° (T) | |||||
Optical Zoom | 4 times | ||||
Iris Type | Auto aperture | ||||
Close Focus Distance | W: 1 m (3.29ft) | ||||
T: 2.5 m (8.20ft) | |||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
W | 60.1 m (187.19 ft) | 24 m(78.74 ft) | 12 m(39.37 ft) | 6 m(19.69 ft) | |
T | 128.6 m (421.92 ft) | 51.4 m (168.64 ft) | 25.7 m (84.32 ft) | 12.8 m (41.99 ft) | |
Smart event | |||||
General IVS Analytics | Abandoned object, moving object | ||||
Professional, intelligent | |||||
Perimeter Protection | Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering. | ||||
Face Snapshot | Yes | ||||
Face Recognition | Face recognition, track, priority, snapshot, face enhancement, face exposure, face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, sadness, disgust, fear, surprise, calm, happiness and confusion), mask, beard | ||||
Face matting setting: face, single inch photo | |||||
Two snapshot strategies: priority snapshot, recognition | |||||
Face angle filter Priority time setting Management of 5 group face libraries Single person register and person register in batch Face recognition and similarity setting | |||||
Max supports face contrast in face library with 200,000 faces | |||||
Video Structurization | Vehicle detection, non-motor vehicle detection, personnel detection, face detection, track, snapshot, optimization, report high quality picture, vehicle attributes (license plate, vehicle type, vehicle color, and vehicle brand), other attributes (sun visor, seatbelt, smoking, phoning, in-car accessories, and annual vehicle inspection mark), non-motor vehicle attributes: vehicle type, vehicle color,driver number, cloth type, cloth color, and hat), personnel attribute (cloth type, trousers type, cloth color, trousers color, knapsack, and gender), face attribute (gender, age , glasses, mask, and beard) | ||||
People Counting | People counting (count the entry number, exit number and pass number), display and output daily/monthly/annual statistics, No. in area | ||||
Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. | ||||
Video | |||||
Video Compression | H.265, H.264, H.264H, H.264B, MJPEG | ||||
Smart Codec | H.264: Yes | ||||
H.265: Yes | |||||
Video Frame Rate | Main Stream: 2688 × 1520 (1–50/60 fps) | ||||
sub stream 1: 704 × 576 (1–25/30 fps) | |||||
sub stream 2: 1920 × 1080 (1–25/30 fps) | |||||
sub stream 3: 1920 × 1080 (1–25/30 fps) | |||||
sub stream 4: 704 × 576 (1–25/30 fps) | |||||
Stream Capability | 5 streams | ||||
Resolution | 4M (2688 × 1520), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) | ||||
Bit Rate Control | CBR/VBR | ||||
Video Bit Rate | H.264: 32–10240 kbps | ||||
H.265: 12–10240 kbps | |||||
Day/Night | ICR switch | ||||
BLC | Yes | ||||
WDR | 140 dB | ||||
White Balance | Auto/aatural/street lamp/outdoor/manual/regional custom | ||||
Gain Control | Manual/Auto | ||||
Noise Reduction | 3D DNR | ||||
Motion Detection | Yes | ||||
Region of Interest(RoI) | Yes (4 areas) | ||||
Electronic Image Stabilization(EIS) | Yes | ||||
Smart IR | Yes (Adjust by user) | ||||
Defog | Yes | ||||
Image Rotation | °/90°/180°/270° (Supports 90°/270° with 1080p resolution or below.) | ||||
Mirror | Yes | ||||
Privacy Masking | 4 areas | ||||
Audio | |||||
Audio Compression | G.711a, G.711Mu, G726, AAC | ||||
Network | |||||
Network | RJ-45 (100/1000 Base-T) | ||||
Protocol | HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP | ||||
Interoperability | ONVIF(Profile S/Profile G); CGI; P2P; RTMP | ||||
Scene self-adaptation | Yes | ||||
User/Host | 20 | ||||
Edge Storage | FTP; Micro SD card (256 G); NAS; SFTP | ||||
Browser | IE: Versions later than IE9 | ||||
Google: Versions later than Chrome 42 | |||||
Firefox: Versions later than Firefox 48.0.2 | |||||
Management Software | Smart PSS, DSS PRO, NVR, IVSS | ||||
Mobile Phone | IOS, Android | ||||
Certification | |||||
Certifications | CE-LVD: EN60950-1 | ||||
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | |||||
FCC: 47 CFR FCC Part 15, Subpart B | |||||
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | |||||
Port | |||||
RS-485 | 1 (Bit rate: 1200 bps–115200 bps) | ||||
Audio Input | Audio Interface: 1/1 channel In/Out | ||||
Audio Output | |||||
Alarm Input | 3 channel In: 5mA 5V DC | ||||
Alarm Output | 2 channel Out: 1000mA 30V DC/500mA 50V AC | ||||
Power | |||||
Power Supply | 12V DC/24V AC/POE | ||||
Power Consumption | <17.3W | ||||
Environment | |||||
Operating Temperature | -40°C to +60°C (-40°F to +140°F) | ||||
Operating Humidity | ≤95% | ||||
Storage Temperature | -40°C to +60°C (-40°F to +140°F) | ||||
Ingress Protection | IP67, IK10 | ||||
Structure | |||||
Casing | Metal + Plastic | ||||
Dimensions | 340.1 mm × 108.5 mm × 92.9 mm (13.39" × 4.27" × 3.66") (L × W × H) | ||||
Net Weight | 1.6 kg (3.53 lb) | ||||
Gross Weight | 2.4 kg (5.29 lb) |
Dahua IPC HFW7442H ZFR IR IP Bullet Kamera Pdf Dosyası649.51 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 4MP
Irled : Var
