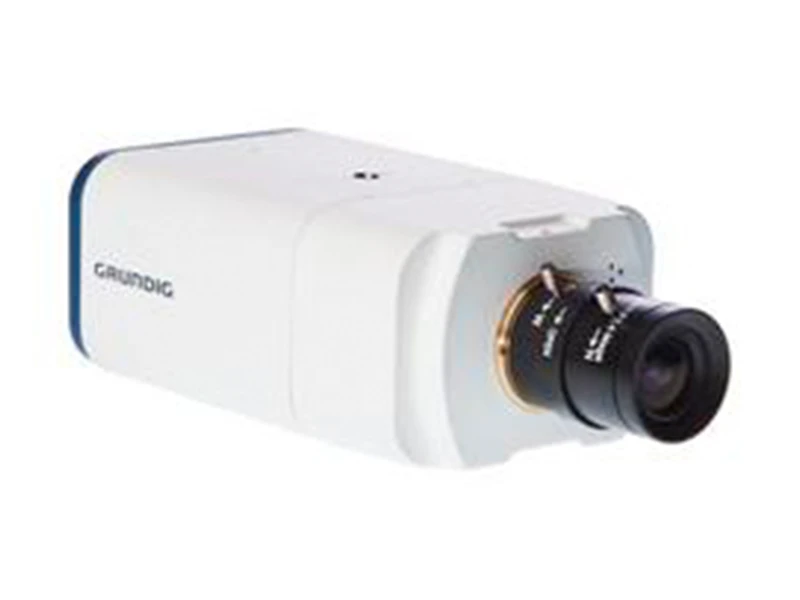

Grundig GCI F0505B IP HD Box Kamera

Teknik Özellikler

Image Sensor : 1/2.8" Progressive Scan CMOS, 3 Megapixels
Pixels - Total : 2048 (H) x 1536 (V)
Col/B&W : On/Off/Auto, IR-cut filter : removable (ICR)
Sensitivity Colour : 0.5 Lux @ F1.2 (IRE50), 0.2 Lux @ F1.2 (IRE30)
Sensitivity : B&W    0.1 Lux @ F1.2 (IRE50), 0.02 Lux @ F1.2 (IRE30)
Lens Mount : C/CS mount
Lens Drive : Type    Auto iris (DC)
Shutter Speed : 1 sec to 1/10,000 sec
BLC : On/Off
WDR : Off/Low/Middle/High
Digital Noise Reduction (DNR) : On/off 2D/3D Noise Filter
Motion Detection : On/ Off/ Sensitivity/ Area setting
Tampering Alarm : On/Off
Privacy zones : 5 zones, rectangle
White Balance : ATW, AWB, Manual
Digital Zoom : Yes
Camera ID : 20 character
Alarm Inputs : 1
Alarm Outputs : 1
Web Browser : MS Internet Explorer 6.0 (or higher), Firefox, Google Chrome, Safari
Number of Clients : Up to 20 user
Video Compression : H.264, MJPEG
Video Resolution : 2048x1536 (10fps), 1920x1080p(25fps), 1280x1024(25fps), 1280x720(25fps), 1024x768(25fps),etc.
Video Streaming    Quad stream: max.: H.264+H.264+H.264+H.264 or H.264+H.264+H.264+MJPEG
Network Protocol : IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, DHCP, PPPoE, UPnP, SMTP, ICMP, IGMP, SNMP, IEEE802.1x, QoS, ONVIF, FTP
SD memory : supports up to 32 GB capacity of micro SD/SDHC memory
Alarm Event : Alarm Input, Motion Detection or Schedule: Image transfer or alarm message by FTP, Image transfer or alarm message by E-mail, recording on SD-card and enable alarm output
Audio Compression : G.726, G.711
LED Indicator : Power, link, active
Video Outputs : 1Vpp, BNC
Input/Output sockets : Video OUT(BNC), Power(DC Jack), RJ-45, Micro SD Card Slot, Alarm Terminal 4-Pin(Alarm In 2-Pin, Alarm Out 2-Pin), Audio (2 mini Jack 3.5mm)
Firmware Upgrade : Firmware upgrade by Web Browser
Configuration : Upload & Download configuration on remote PC
Operating Temperature : -10°C ~ +50°C
Humidity : 10 ~ 90% no condensation
Regulation : CE, FCC, RoHS Compliant
Supply Voltage : 12 VDC / PoE IEEE 802.3af
Power Consumption : 4 W
Weight : 0.36 kg
Dimensions w*h*d : 76 x 53 x 126 mm

pdfGrundig GCI F0505B IP HD Box Kamera Pdf Dosyası280.45 KB

Teknik Kısa

Çözünürlük : 3MP
Depolama : Var
Ses : Var
Depolama : Var
