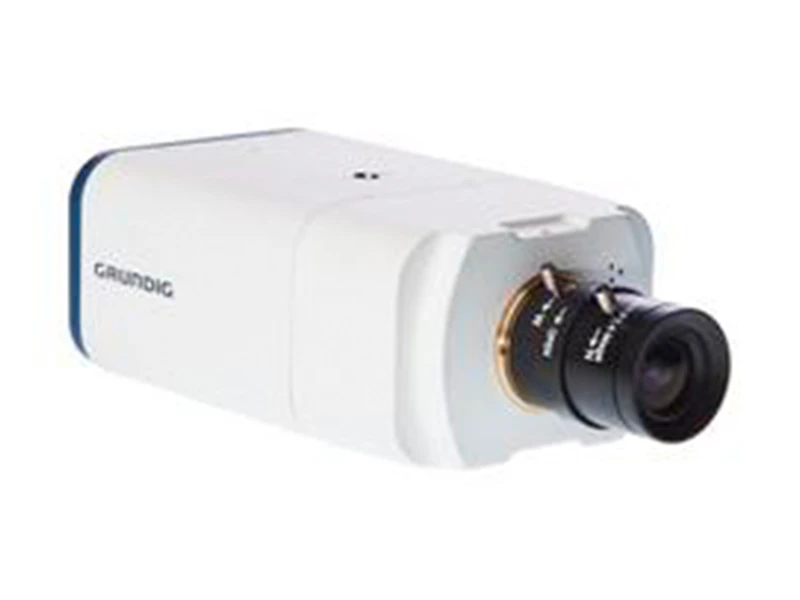

Grundig GCI G0509B IP HD Box Kamera
Teknik Özellikler
| Image Sensor | 1/3.2" Progressive Scan CMOS Omnivision, 5 Megapixels |
| Pixels - Total | 2592 (H) x 1944 (V) |
| Col/B&W | On/Off/Auto, IR-cut filter removable (ICR) |
| Sensitivity Colour | 0.5 Lux @ F1.2 (IRE50), 0.2 Lux @ F1.2 (IRE30) |
| Sensitivity B&W | 0.1 Lux @ F1.2 (IRE50), 0.02 Lux @ F1.2 (IRE30) |
| Lens Mount | C/CS mount |
| Lens Drive Type | Auto iris (DC) |
| Shutter Speed | 1 sec to 1/10,000 sec |
| BLC | On/Off |
| WDR | Off/Low/Middle/High |
| Digital Noise Reduction (DNR) | On/off 2D/3D Noise Filter |
| Motion Detection | On/ Off/ Sensitivity/ Area setting |
| Tampering Alarm | On/Off |
| Privacy zones | 5 zones, rectangle |
| White Balance | ATW, AWB, Manual |
| Digital Zoom | Yes |
| Camera ID | 20 character |
| Alarm Inputs | 1 |
| Alarm Outputs | 1 |
| Web Browser | MS Internet Explorer 6.0 (or higher), Firefox, Google Chrome, Safari |
| Number of Clients | Up to 20 user |
| Video Compression | H.264, MJPEG |
| Video Resolution | 2592x1944 (10fps), 2048x1536 (15fps), 1920x1080 (25fps), etc. |
| Video Streaming | Quad stream: max.: H.264+H.264+H.264+H.264 or H.264+H.264+H.264+MJPEG |
| Network Protocol | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, DHCP, PPPoE, UPnP, SMTP, ICMP, IGMP, SNMP, IEEE802.1x, QoS, ONVIF, FTP |
| SD memory | supports up to 32 GB capacity of micro SD/SDHC memory |
| Alarm Event | Alarm Input, Motion Detection or Schedule: Image transfer or alarm message by FTP, |
| Image transfer or alarm message by E-mail, recording on SD-card and enable alarm output | |
| Audio Compression | G.726, G.711 |
| LED Indicator | Power, link, active |
| Video Outputs | 1Vpp, BNC |
| Input/Output sockets | Video Out(BNC), Power(3-Pin Term), RJ-45, Micro SD Card Slot, |
| Terminal 7-Pin (Alarm In 2-Pin, Alarm Out 2-Pin, RS485 2-Pin), Audio (2 mini Jack 3.5mm), Auto-Iris (4Pin) | |
| Interfaces | RS-485 |
| Protocol | Pelco D, Pelco P |
| PTZ Control | Pan/Tilt/Zoom/Focus/Preset/Sequence, Pelco D/P |
| Firmware Upgrade | Firmware upgrade by Web Browser |
| Configuration | Upload & Download configuration on remote PC |
| Operating Temperature | -10°C ~ +50°C |
| Humidity | 10 ~ 90% no condensation |
| Regulation | CE, FCC, RoHS Compliant |
| Supply Voltage | 12 VDC / 24 VAC / PoE IEEE 802.3af |
| Power Consumption | 4 W |
| Weight | 0.36 kg |
| Dimensions w*h*d | 76 x 53 x 126 mm |
Teknik Kısa
Çözünürlük : 5MP
