Açıklama

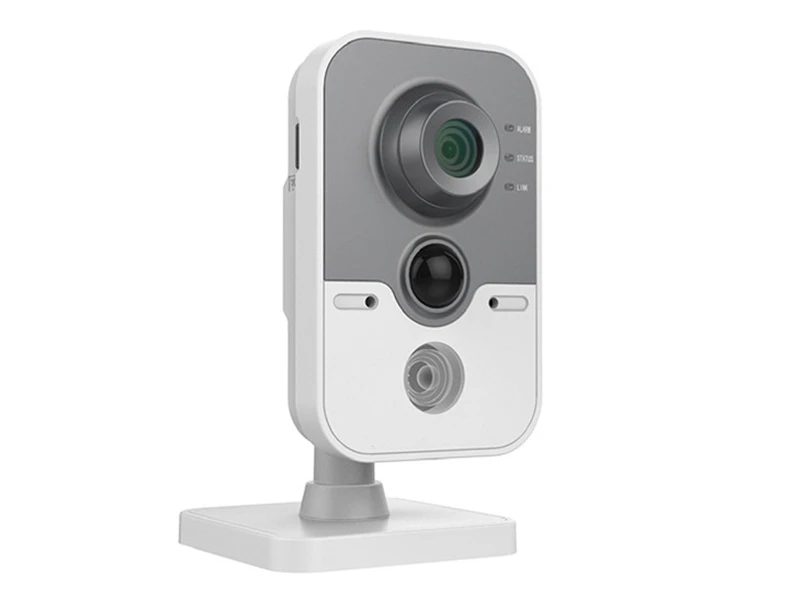

Haikon DS 2CD2432F I IP HD Küp Kamera
Özellikler
Teknik Özellikler
| Image Sensor: 1/3" Progressive Scan CMOS |
| Min. Illumination: 0.07Lux @(F1.2,AGC ON) ,0 Lux with IR |
| Shutter time: 1/3 s to 1/100,000 s |
| Lens Mount: M12 |
| Day& Night: IR cut filter with auto switch |
| Wide Dynamic Range: Digital WDR |
| Digital noise reduction: 3D DNR |
| Video Compression: H.264/MJPEG |
| Video bit rate: 32Kbps~12Mbps |
| Audio Compression: G.711/G.722.1/G.726/MP2L2 |
| Dual Stream: Yes |
| Max. Image Resolution: 2048×1536 |
| Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: Yes, zone configurable |
| ROI: Support |
| Network Storage: NAS (Support NFS,SMB/CIFS) |
| Security: User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| System Compatibility: ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Audio: Internal Microphone and Speaker |
| Communication Interface: 1 RJ45 10M / 100M Ethernet interface |
| On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: Yes |
| Wireless Standards: IEEE802.11b, 802.11g, 802.11n |
| Frequency Range: 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth: 20/40MHz Support |
| Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Wireless Range: 50m(depend on environment) |
| Power Supply: 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: 5W MAX |
| IR Range: 10 meters |
| PIR: Angle of detection: 80°,Detection range: 10 meters |
| Dimensions: 72.3×91.5×131.3(2.85”×3.60” ×5.17”) |
| Weight: 400g(0.88lbs) |
Haikon DS 2CD2432F I IP HD Küp Kamera Pdf Dosyası951.15 KB
Teknik Kısa
Çözünürlük : 3MP
Irled : Var
Depolama : Var
