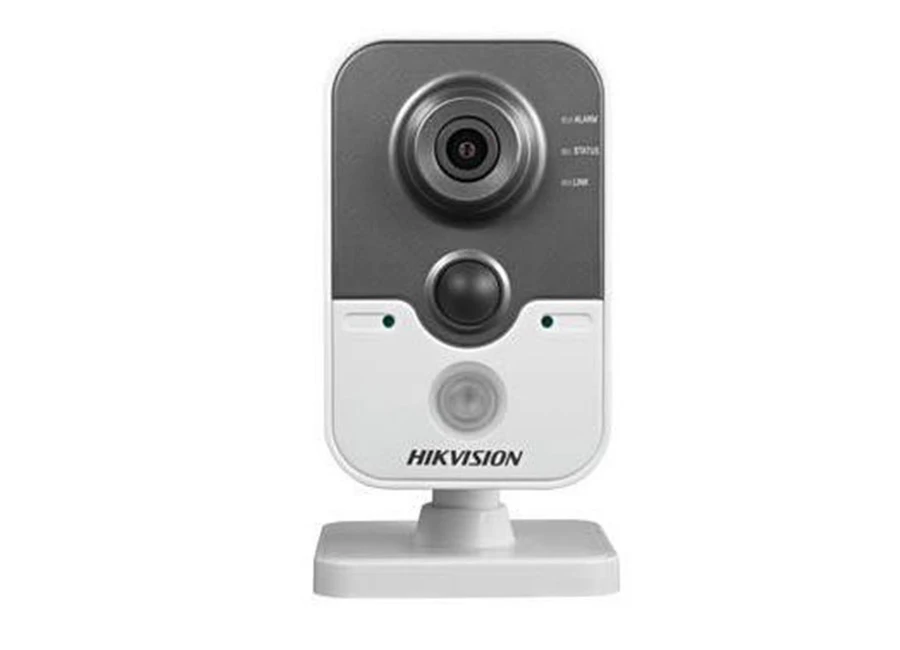

Hikvision DS 2CD2412F I IP Küp Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Minimum Aydınlatma | 0.01Lux @ (F1.2, AGC ON),0 Lux with IR |
Objektif Hızı | 1/3 s to 1/100,000 s |
Lens | 4mm@ F2.0 (2.8mm, 6mm optional) |
Angle of view: 92.5°(2.8mm), 73.1°(4mm), 46°(6mm) | |
Lens Mount | M12 |
Day& Night | IR cut filter with auto switch |
Wide Dynamic Range | Digital WDR |
Dijtal Gürültü Azaltma | 3D DNR |
Compression Standard | |
Video Compression | H.264/MJPEG |
Video bit rate | 32Kbps~12Mbps |
Audio Compression | G.711/G.722.1/G.726/MP2L2 |
Çift Akış | Yes |
Image | |
Max. Image Resolution | 1280x960 |
Çerçeve Hızı | 50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720), 25 fps (704 x 576), |
25 fps (640 x 480) | |
60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720), 30 fps (704 x 576), | |
30 fps (640 x 480) | |
Image Settings | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
BLC | Yes, zone configurable |
ROI | Support |
Network | |
Network Storage | NAS (Support NFS,SMB/CIFS) |
Alarm Trigger | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
Protokoller | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
General Function | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Interface | |
Audio | Internal Microphone and Speaker |
Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
Dahili Depolama | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB |
Reset Butonu | Yes |
Wi-Fi Specification (-W) | |
Kablosuz Standartlar | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
Kanal Bant Genişliği | 20/40MHz Support |
Modulation Mode | 802.11b: CCK, QPSK, BPSK |
802.11g/n: OFDM | |
Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
Güç İletim | 11b: 17±1.5dBm @ 11Mbps |
11g: 14±1.5dBm @ 54Mbps | |
11n: 12.5±1.5dBm | |
Alıcı Hassasiyeti | 11b: -90dBm @ 11Mbps (Typical) |
11g: -75dBm @ 54Mpbs (Typical) | |
11n: -74dBm (Typical) | |
Transmission Rate | 11b: 11Mbps |
11g: 54Mbps | |
11n: up to 150Mbps | |
Kablosuz Menzil | 50m(depend on environment) |
General | |
Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Humidity 95% or less (non-condensing) | |
Power Supply | 12 VDC ± 10%, PoE (802.3af) |
GÜç Tüketimi | 5W MAX |
IR Range | 10 meters |
PIR | Angle of detection: 80° |
Detection range: 10 meters | |
Boyutlar | 72.3×91.5×131.3(2.85”×3.60” ×5.17”) |
Ağırlık | 400g(0.88lbs) |
Hikvision DS 2CD2412F I IP Küp Kamera Pdf Dosyası467.91 KB
Teknik Kısa
Çözünürlük : 1.3MP
Irled : Var
