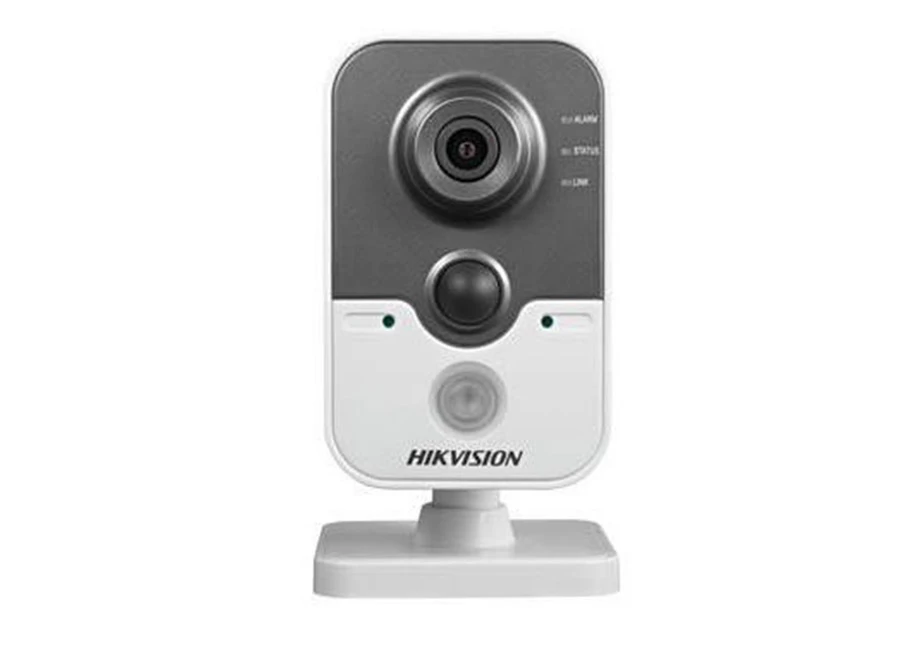

Hikvision DS 2CD2432F I IP Küp Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Minimum Aydınlatma | 0.07Lux @(F1.2,AGC ON) ,0 Lux with IR |
| Objektif Hızı | 1/3 s to 1/100,000 s |
| Lens | 4mm@ F2.0 (2.8mm, 6mm optional) |
| 2048 × 1536: | |
| Angle of view: 86°(4mm), 70°(4mm), 43.3°(6mm) | |
| 1920 × 1080: | |
| Angle of view: 98.5°(4mm), 79°(4mm), 49°(6mm) | |
| Lens Mount | M12 |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | Digital WDR |
| Dijtal Gürültü Azaltma | 3D DNR |
| Compression Standard | |
| Video Compression | H.264/MJPEG |
| Video bit rate | 32Kbps~12Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Çift Akış | Yes |
| Image | |
| Max. Image Resolution | 2048×1536 |
| Çerçeve Hızı | 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720) |
| 60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720) | |
| Image Settings | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC | Yes, zone configurable |
| ROI | Support |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protokoller | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| General Function | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | |
| Audio | Internal Microphone and Speaker |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| Dahili Depolama | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB |
| Reset Butonu | Yes |
| Wi-Fi Specification (-W) | |
| Kablosuz Standartlar | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Kanal Bant Genişliği | 20/40MHz Support |
| Modulation Mode | 802.11b: CCK, QPSK, BPSK |
| 802.11g/n: OFDM | |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Güç İletim | 11b: 17±1.5dBm @ 11Mbps |
| 11g: 14±1.5dBm @ 54Mbps | |
| 11n: 12.5±1.5dBm | |
| Alıcı Hassasiyeti | 11b: -90dBm @ 11Mbps (Typical) |
| 11g: -75dBm @ 54Mpbs (Typical) | |
| 11n: -74dBm (Typical) | |
| Transmission Rate | 11b: 11Mbps |
| 11g: 54Mbps | |
| 11n: up to 150Mbps | |
| Kablosuz Menzil | 50m(depend on environment) |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 10%, PoE (802.3af) |
| GÜç Tüketimi | 5W MAX |
| IR Range | 10 meters |
| PIR | Angle of detection: 80° |
| Detection range: 10 meters | |
| Boyutlar | 72.3×91.5×131.3(2.85”×3.60” ×5.17”) |
| Ağırlık | 400g(0.88lbs) |
Hikvision DS 2CD2432F I IP Küp Kamera Pdf Dosyası465.81 KB
Teknik Kısa
Çözünürlük : 3MP
Irled : Var
