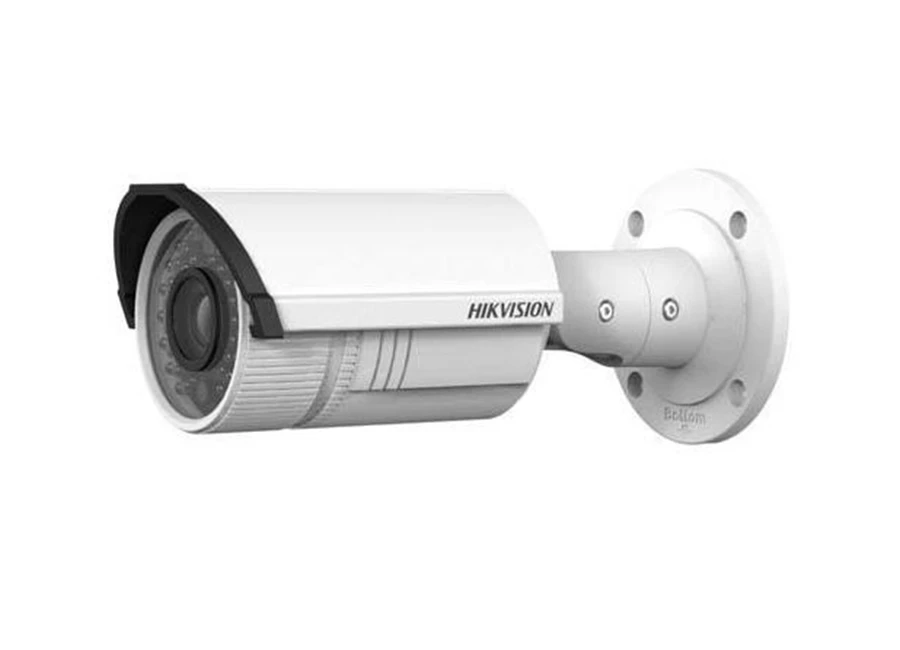

Hikvision DS 2CD2620F I IP Bullet Kamera
Özellikler
- 2 megapixel high resolution
- 2.8-12mm vari-focal lens
- 3D DNR & DWDR & BLC
- IP67 rating
- IR range: up to 30m
- Audio and alarm optional
- True day / night
Teknik Özellikler
Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Minimum Aydınlatma | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
0.014 Lux @(F1.4,AGC ON), 0 Lux with IR | |
Objektif Hızı | 1/3s ~ 1/100,000s |
Lens | 2.8 - 12 mm @ F1.4,Angle of view: 113°-33.8° |
Lens Mount | φ14 |
Day& Night | IR cut filter with auto switch |
Wide Dynamic Range | Digital WDR |
Dijtal Gürültü Azaltma | 3D DNR |
Compression Standard | |
Video Compression | H.264/MJPEG |
Video bit rate | 32Kbps~8Mbps |
Audio Compression | -S: G.711/G.722.1/G.726/MP2L2 |
Çift Akış | Yes |
Image | |
Max. Image Resolution | 1920 x 1080 |
Çerçeve Hızı | 50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) |
60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) | |
Image Settings | Saturation, brightness, contrast adjustable through client software or web browser |
BLC | Yes, zone configurable |
ROI | Support |
Network | |
Network Storage | NAS (Support NFS,SMB/CIFS) |
Alarm Trigger | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
Protokoller | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
General Function | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Interface | |
Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
Dahili Depolama | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Reset Butonu | Yes |
General | |
Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Humidity 95% or less (non-condensing) | |
Power Supply | 12 VDC ± 10%, PoE (802.3af) |
GÜç Tüketimi | Max. 7.1 W |
Weather Proof | IP67 |
IR Range | Up to 30m |
Boyutlar | 95×105×258.6 mm (3.74” × 4.13” × 10.18”) |
Ağırlık | 1200g |
NOT | * “-S” series support 1-ch audio I/O and 1-ch alarm I/O |
Hikvision DS 2CD2620F I IP Bullet Kamera Pdf Dosyası485.17 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
