Açıklama

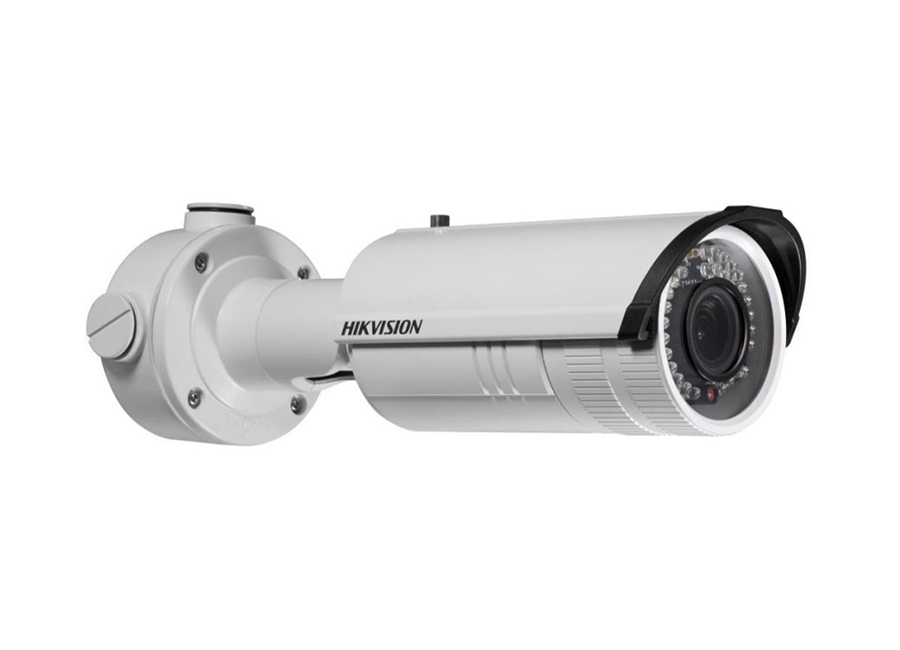

Hikvision DS 2CD4232FWD I IR IP Bullet Kamera

Özellikler

1/3" progressive scan CMOS
Up to 2048 × 1536 resolution
120dB WDR, 3D DNR
Smart Codec
Smart IR
Smart Focus: Motorized VF lens(-Z)
Smart VQD
Smart Face Detection
Smart Audio Detection(-S)
Intrusion Detection
Defog, EIS, BLC
built-in heater(-H)

Teknik Özellikler

Camera
Image Sensor	1/3" Progressive Scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	0.1 Lux @ (F1.2, AGC ON), 0 lux with IR
Minimum Aydınlatma	0.14 Lux @ (F1.4, AGC ON), 0 lux with IR
Objektif Hızı	1 s to 1/100,000 s
Lens	Non -Z: 2.8-12mm @ F1.4, angle of view: 91.2-28.3°
	8-20mm @ F1.6, angle of view: 33.2°-13.8°(optional)
	-Z: 2.8-12mm @ F1.4, angle of view: 91.2-28.3°
	8-32mm @ F1.4, angle of view: 26°-8.54°(optional)
Lens Mount	φ14
Auto Iris	DC drive
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Dijtal Gürültü Azaltma	3D DNR
Focus	Motorized VF lens(-Z model)
Compression Standard
Video Compression	H.264/MPEG4/MJPEG
Video bit rate	32Kbps~16Mbps
Audio Compression	-S: G.711/G.722.1/G.726/MP2L2
Üçüncü Akım	Yes
Max. Image Resolution	2048×1536
Çerçeve Hızı	50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)
Çerçeve Hızı	60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720)
Üçüncül Akış	Independent with Main Stream and Sub Stream, up to
	50Hz: 20fps (2048 × 1536)
	60Hz: 20fps (2048 × 1536)
Image Settings	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC	Support
Akıllı Buğu Giderme	Support
EIS	Support
ROI	Support
Resim Yerleşimi	128 × 128, BMP 24bit, zone configurable
Network
Network Storage	NAS (Support NFS,SMB/CIFS)
Alarm Trigger	Line crossing detection, Intrusion detection, Defocus detection, Scene change detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protokoller	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
Protokoller	PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General Function	User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
System Compatibility	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M / 100M Ethernet interface
Dahili Depolama	Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
General
Operating Conditions	-30 °C – 60 °C (-22 °F – 140 °F)
	Humidity 95% or less (non-condensing)
	-H: -40 °C – 60 °C (-40 °F – 140 °F) with smart heater on
Power Supply	12 VDC ± 10%, PoE (802.3af)
GÜç Tüketimi	Max. 11.5 W
GÜç Tüketimi	-Z/-H: Max. 12.5W
Weather Proof	IP66
IR Range	2.8-12mm: Approx. 20 to 30 meters;
IR Range	8-20mm/8-32mm: Approx. 50 to 80 meters
Boyutlar	98 × 105 × 328.8 mm (3.86” × 4.13” × 12.94”)
Ağırlık	2000g (4.41 lbs)
