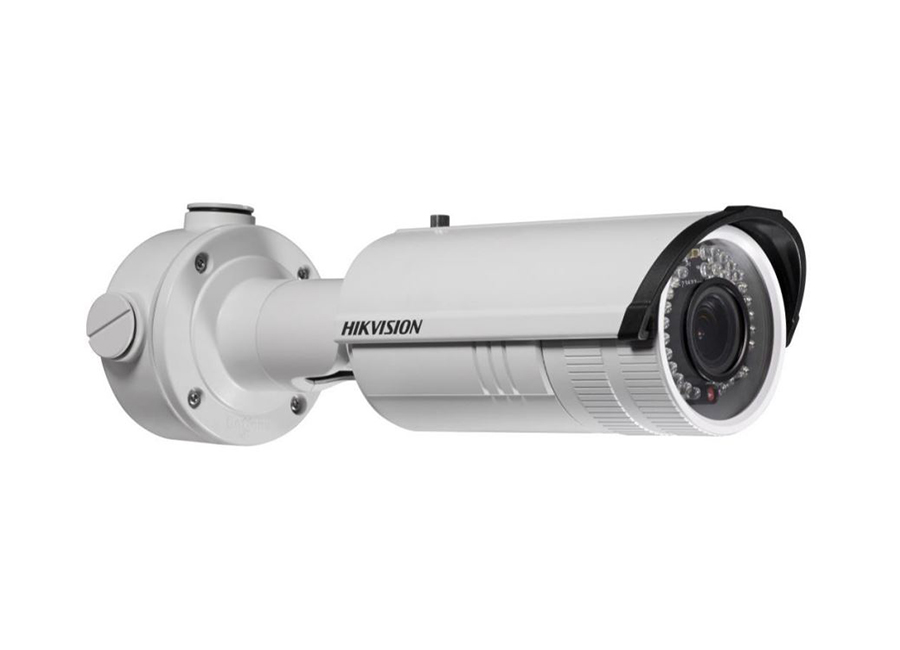

Hikvision DS 2CD4232FWD IZ IR IP Bullet Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor: | 1/3" Progressive Scan CMOS |
İşaret Sistemi: | PAL/NTSC |
Minimum Aydınlatma | 0.1 Lux @ (F1.2, AGC ON), 0 lux with IR |
0.14 Lux @ (F1.4, AGC ON), 0 lux with IR | |
Objektif Hızı | 1 s to 1/100,000 s |
Lens: | Non -Z: 2.8-12mm @ F1.4, angle of view: 91.2-28.3° |
8-20mm @ F1.6, angle of view: 33.2°-13.8°(optional) | |
-Z: 2.8-12mm @ F1.4, angle of view: 91.2-28.3° | |
8-32mm @ F1.4, angle of view: 26°-8.54°(optional) | |
Lens Mount | φ14 |
Auto Iris | DC drive |
Day& Night | IR cut filter with auto switch |
Wide Dynamic Range | 120 dB |
Dijtal Gürültü Azaltma | 3D DNR |
Focus | Motorized VF lens(-Z model) |
Compression Standard | |
Video Compression | H.264/MPEG4/MJPEG |
Video bit rate | 32Kbps~16Mbps |
Audio Compression | -S: G.711/G.722.1/G.726/MP2L2 |
Üçüncü Akım | Yes |
Image | |
Max. Image Resolution | 2048×1536 |
Çerçeve Hızı | 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720) |
60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720) | |
Üçüncül Akış | Independent with Main Stream and Sub Stream, up to |
50Hz: 20fps (2048 × 1536) | |
60Hz: 20fps (2048 × 1536) | |
Image Settings | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
BLC | Support |
Akıllı Buğu Giderme | Support |
EIS | Support |
ROI | Support |
Resim Yerleşimi | 128 × 128, BMP 24bit, zone configurable |
Network | |
Network Storage | NAS (Support NFS,SMB/CIFS) |
Alarm Trigger | Line crossing detection, Intrusion detection, Defocus detection, Scene change detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
Protokoller | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
General Function | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Interface | |
Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
Dahili Depolama | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB |
General | |
Operating Conditions | -30 °C – 60 °C (-22 °F – 140 °F) |
Humidity 95% or less (non-condensing) | |
-H: -40 °C – 60 °C (-40 °F – 140 °F) with smart heater on | |
Power Supply | 12 VDC ± 10%, PoE (802.3af) |
Güç Tüketimi | Max. 11.5 W |
-Z/-H: Max. 12.5W | |
Weather Proof | IP66 |
IR Range | 2.8-12mm: Approx. 20 to 30 meters; |
8-20mm/8-32mm: Approx. 50 to 80 meters | |
Boyutlar | 98 × 105 × 328.8 mm (3.86” × 4.13” × 12.94”) |
Ağırlık | 2000g (4.41 lbs) |
Hikvision DS 2CD4232FWD IZ IR IP Bullet Kamera Pdf Dosyası452.93 KB
Teknik Kısa
Çözünürlük : 3MP
Irled : Var
