Açıklama

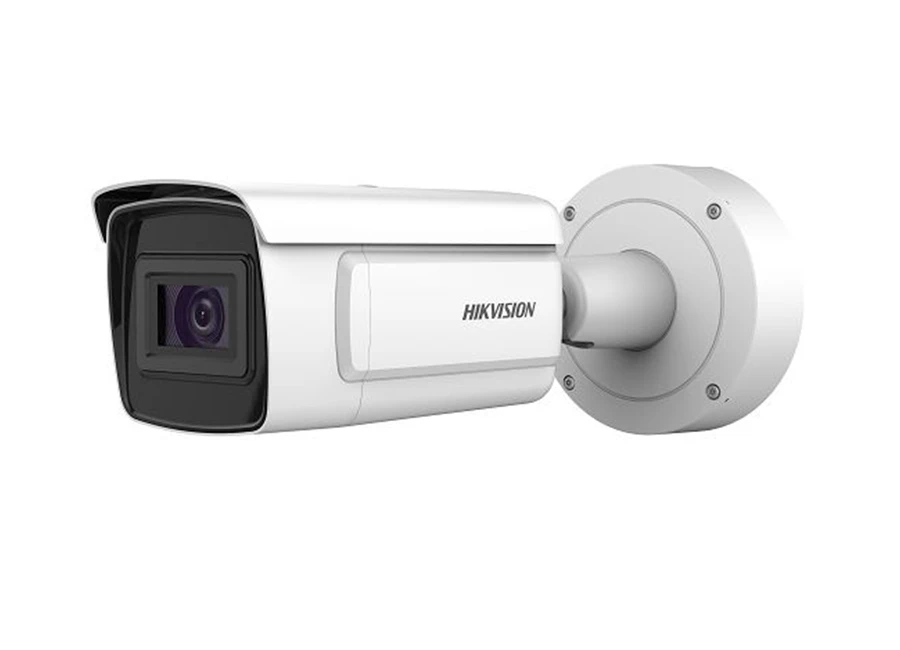

Hikvision DS 2CD5A46G0 IZ/UH IP Bullet Kamera

Özellikler

1/1.8” Progressive Scan CMOS
2560 × 1440 @ 30 fps
2.8 to 12 mm motorized lens
H.265, H.265+, H.264, H.264+
5 defined streams and up to 5 custom streams
120dB WDR
IP67
Built-in microSD/SDHC/SDXC card slot, up to 256 GB

Teknik Özellikler

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	Color: 0.0036 Lux @ (F1.6, AGC ON), 0 Lux with IR
Slow shutter	1 s to 1/100,000 s
Objektif Hızı	Yes
Lens	Motorized lens, 2.8 to 12 mm
Lens Mount	φ14
Ayarlanan Aralık	Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night	IR Cut Filter
Wide Dynamic Range	120 dB
Focus	Semi-auto
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 Türü	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~16Mbps
Çift Akış	Yes
Üçüncü Akım	Yes
Max. Image Resolution	2560 × 1440
Ana Akış	50Hz: 25fps (704 × 576, 640 × 480)
Ana Akış	60Hz: 30fps (704 × 480, 640 × 480)
Çerçeve Hızı	50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Çerçeve Hızı	60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Üçüncül Akış	50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
Üçüncül Akış	60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Görüntü İyileştirme	BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
Image Settings	Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Görüntü Düzeltme	Support
Bölgesel Kırpma	Yes
Resim Yerleşimi	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Gündüz / Gece Anahtarı	Day/Night/Auto/Schedule
Network
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage	microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR;Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Interface
Video Output	1Vp-p Composite Output(75Ω/CVBS) (For adjustment only)
Dahili Depolama	Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Smart Feature-set
Region of Interest	Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions for each stream and dynamic face tracking
Linkage Method	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Basic Event	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event	Line crossing detection, up to 4 lines configurable
	Intrusion detection, up to 4 regions configurable
	Region entrance detection, up to 4 regions configurable
	Region exiting detection, up to 4 regions configurable
	Unattended baggage detection, up to 4 regions configurable
	Object removal detection, up to 4 regions configurable
	Face detection: detects faces and upload images
	Scene change detection, defocus detection
Statistics	Counting which calculates the number of targets entering and exiting a configured area
General
Power Supply	12 VDC ± 10%, three-core terminal block, reverse polarity protection
GÜç Tüketimi	12 VDC, 3.84 A, max. 46 W
Weather Proof	IP67
Boyutlar	Camera: Φ140 × 368 mm (Φ5.5″ × 14.5″)
Boyutlar	With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
Ağırlık	Camera: approx. 1.9 kg (5.1 lb.)
Ağırlık	With package: approx. 2.45 kg (6.6 lb.)
