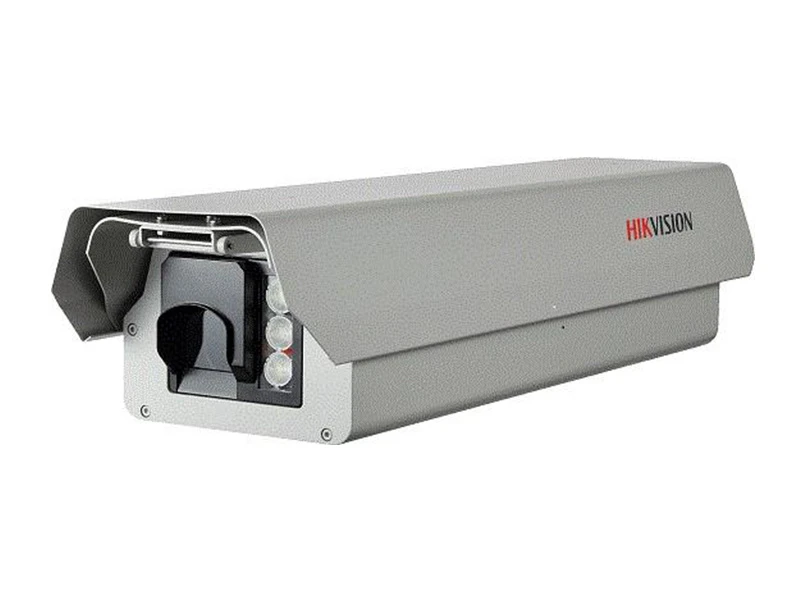

Hikvision VCU 7012 ITIR IP Trafik Bullet Kamera
Özellikler
- 1/1.8” Progressive Scan CCD
- Auto-iris
- 2048 × 1536 @ 25fps
- H.264/MJPEG
- Support white light or IR light
- Support Radar Speed Measurement
- Wrong-way Detection
- Support most of the countries and regions of Mid-East, Africa, Asia-Pacific, America and Europe, Australia
Teknik Özellikler
| Interface | |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Video Output | 1Vp-p composite output (75 Ω/BNC) |
| Trigger Output | 7 ( photoelectric coupling isolation 2500VAC), 2 relay output |
| Trigger Input | 7 external input |
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port, 5 RS-485 interface, 1 RS-232 interface |
| Camera | |
| Digital Noise Reduction | 3D DNR |
| Day & Night | IR Cut Filter |
| Image Sensor | 1/1.8″ Progressive Scan CCD |
| Shutter Speed | 1 s - 1/100,000 s |
| Network | |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage, ANR |
| API | ONVIF (Version 2.1), PSIA, ISAPI |
| Protocols | TCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP, |
| General | |
| Protection Level | IP54 |
| Weight | 6.5±0.5kg(14.3lb±1.1lb) |
| Dimensions | 180mm(W)×152.7mm(H)×636mm(D)(7.09×6.01×25.04 inch) |
| Power Consumption and Current | ＜30W |
| Power Supply | 100VAC～240VAC；Frequency: 48Hz～52Hz |
| Operating Conditions | -20 °C – 60 °C(-4°F to +140°F )， 5%~95%@40℃ (104°F ), non-condensing |
| Smart Feature-set | |
| Function | Support license plate recognition, Radar Speed Measurement, Wrong-way Detection |
| Light Supplement Control | Supplement light synchronous with White or IR LED strobe-flash light |
| Image | |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| SVC | Support |
| Sub Stream | 50Hz: 25fps (352 × 288) |
| Max. Resolution | 2048× 1536 |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser |
| Compression Standard | |
| Video Compression | H.264/MJPEG |
| Picture Format | JPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| Video Bit Rate | 32 Kbps – 16 Mbps |
Hikvision VCU 7012 ITIR IP Trafik Bullet Kamera Pdf Dosyası761.74 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 3MP
