Açıklama

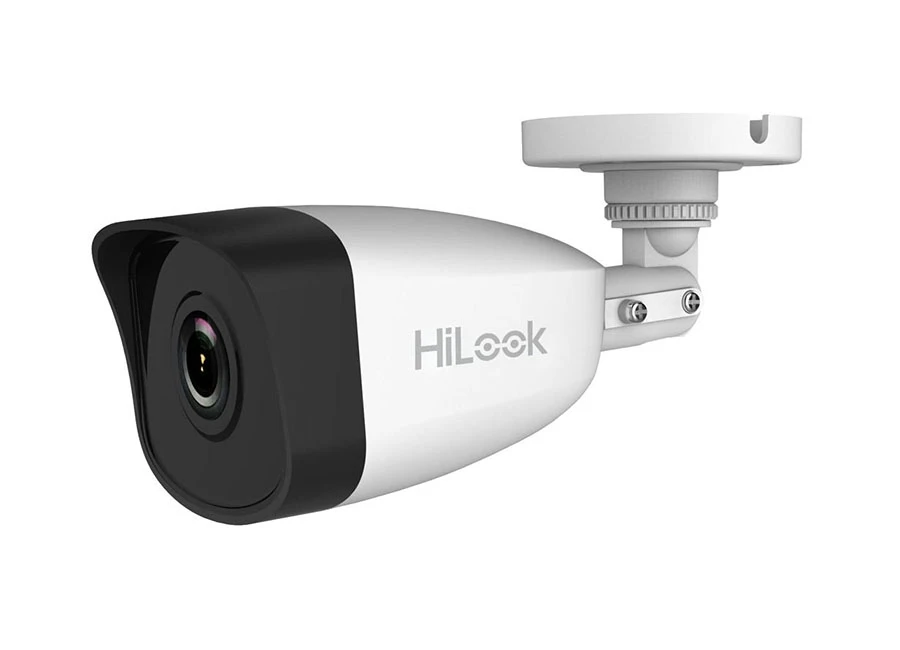

HiLook IPC B140H M IR IP Bullet Kamera

Özellikler

Teknik Özellikler

1/3" progressive scan CMOS
2560 × 1440@20fps
2.8 mm/4 mm/6 mm fixed lens
H.265+, H.265, H.264+, H.264
Dual stream
120dB WDR (Wide Dynamic Range)
3D DNR (Digital Noise Reduction)
Up to 30 m IR range
PoE (Power over Ethernet)
IP67

Camera
Image Sensor	1/3" Progressive Scan CMOS
Minimum Aydınlatma	Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
Slow shutter	Support
Objektif Hızı	1/3 s to 1/100, 000 s
Lens	2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
	4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
	6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°
Lens Mount	M12
Ayarlanan Aralık	Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
Day& Night	IR Cut Filter
Wide Dynamic Range	120 dB
Dijtal Gürültü Azaltma	3D DNR
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 Türü	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~8Mbps
Max. Image Resolution	2560 × 1440
Ana Akış	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
Ana Akış	60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Çerçeve Hızı	50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Çerçeve Hızı	60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Görüntü İyileştirme	BLC, 3D DNR
Image Settings	Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
BLC	Support
Gündüz / Gece Anahtarı	Auto, scheduled
Network
Alarm Trigger	Motion detection, video tampering alarm, illegal login
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
General Function	Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
System Compatibility	ONVIF (Profile S, Profile G), ISAPI
General
Operating Conditions	-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE (802.3af Class3)
GÜç Tüketimi	12 VDC, 0.4 A, Max: 5 W
GÜç Tüketimi	PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
Weather Proof	IP67
IR Range	Up to 30m
Boyutlar	Camera: ? 70 mm × 191.3mm (? 2.7" × 7.5")
Boyutlar	With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Ağırlık	Without –M model:
	Camera: approx. 280 g (0.6 lb.)
	With package: approx: 530 g (1.2 lb.)
	–M model:
	Camera: approx. 402 g (0.9 lb.)
	With package: approx: 641 g (1.4 lb.)
