Açıklama

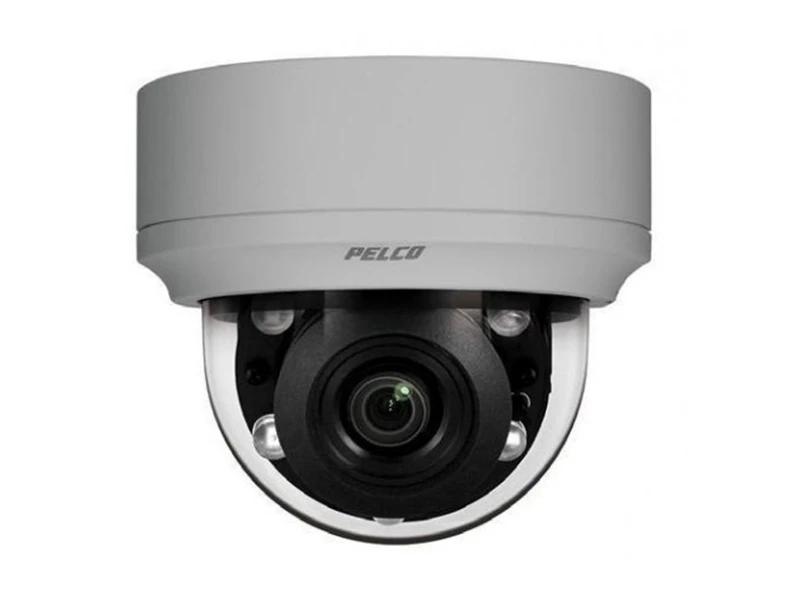

Pelco IME222 1RS IP Dome Kamera
Özellikler
- SureVision 3.0 Technology, Including:
– 130dB Wide Dynamic Range (WDR)
– Advanced Low-Light Performance, 0.05 lux
– Anti-Bloom Technology
– 3D Noise Filtering
– Enhanced Tone Mapping - Power over Ethernet (PoE), IEEE 802.3af, 24 VAC, 12 VDC
- Pelco H.264 Smart Compression Technology
- Built-in Analytics Suite
- Up to 128 GB Edge Storage with SD Card
- Compatible with Pelco and Third-Party Video Systems
- ONVIF Profile S, Profile G, and Profile Q Conformant
- Attaches to 4S Electrical Box with Adapter
- Meets IP66
- Meets Type 4X (with IMEEBAP adapter plate accessory and IMEPM-E pendant mount accessory)
- Meets IK10 (20J)
- Aluminum Construction
- Telegray 4, RAL 7047
- Heater
Teknik Özellikler
SKU | IME222-1RS |
Manufacturer | Pelco |
Features | Auto Gain Control, Day/Night, Digital Noise Reduction, Heater & Fan, Mirror, On Screen Display Menu, ONVIF, Vandal Resistant, Wide Dynamic Range |
Camera Signal | Network IP |
Connection Type | Wired |
Infrared Distance | 61~100 Feet |
Resolution | 2 Megapixel |
Lens Type | Varifocal |
Lens Size | 9-22mm |
Mount Type | Ceiling, Wall |
Compression Method | H.264, M-JPEG |
Durability | Vandal Resistant, Weather Resistant |
Voltage | 12vDC, 24vAC, PoE |
Electronic Shutter | 1/20000 sec (or faster) to 2 sec |
Image Device | 1/2.8-inch Progressive scan CMOS |
IR LEDs | 850nm |
Minimum Scene Illumination | Color (33 ms): 0.200 lux, Color (500 ms): 0.010 lux, Mono (33 ms): 0.100 lux, Mono (500 ms): 0.0025 lux, Mono (IR on): 0.000 lux |
Operating Humidity | 5 to 95%, RH noncondensing |
Operating Temperature | –40° to 55°C (–40° to 131°F)† |
OSD Menu | Arabic, English, French, Italian, German, Korean, Spanish, Portuguese, Russian, Simplified Chinese, Turkish |
Power Consumption | Up to 12 W nominal |
Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS,SSH, SSL, SMTP, FTP, ARP, ICMP, and 802.1x (EAP) ,NTCIP 1205 |
S/N Ratio | >60 dB |
Weatherproof | IP66 |
Digital Noise Reduction | 3D |
Mirror | 180°, 90° and 270° (H.264 only |
Processor | Intel® Core™ i3 processor, 2.4 GHz |
Angle of View | Wide Horizontal: 33°,Vertical: 24°, Tele Horizontal: 14°,Vertical: 10° |
Rotation Angle | 340° |
Automatic White Balance | 2,000° to 10,000°K |
IR Distance | 30m/100ft |
Audio | Yes |
Auto Gain Control | Yes |
Day/Night | Yes |
Digital Noise Reduction | Yes |
Automatic White Balance | Yes |
Heater & Fan | Yes |
Wide Dynamic Range | Yes |
ONVIF | Yes |
Teknik Kısa
Çözünürlük : 2MP (1080P)
