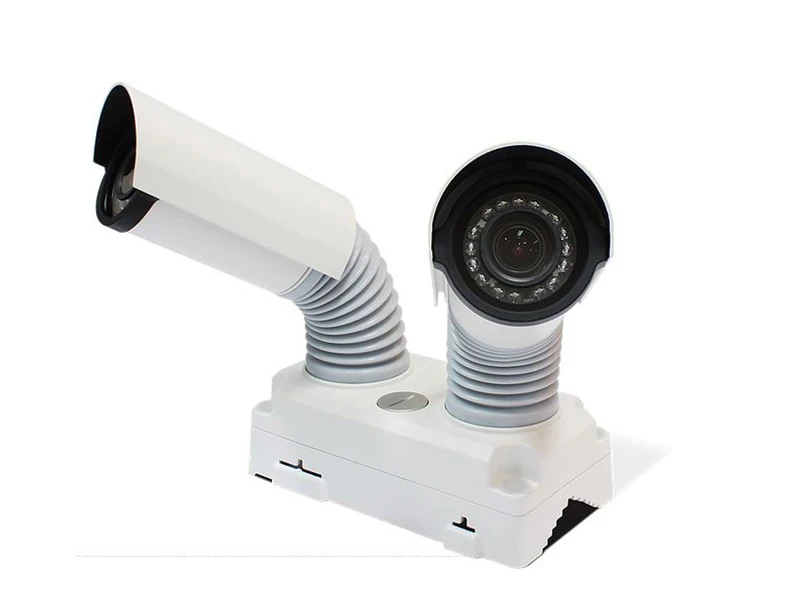

Probe PHIB H300TW IP Bullet Kamera
Özellikler
New Concept of Two Sensor Camera System
- Twin-One camera is combine two image into each ROI. It combines with one image and transmits it to high definition Full HD video
Using Ultra-Low Light senor
- With 2M 1/1.9”CMOS image sensor, you can check High image quality and clear color images in dim light environment. It also has the ability to powerful low noise effect and outstanding noise reduction.
Weather Proof Design
- With IP66 protection, the camera ensures normal operation regardless of rain, snow or storm.
Useful zoom capability
- x3 optical zoom, x12 digital zoom, excellent automatic focusing, and 3.6 ~10 mm focus range. Especially, since the aperture is F1.5~F2.5, it is possible to acquire better quality image than any other camera.
Easily adjustable two-Universal joint camera gimbal
- It is designed with two universal joint structures that enable camera angle to be adjusted freely.
Triple codec, Simultaneous multi steaming
- Triple H/W codec enables to transmit max 3 independent streams with different settings for different requirements. Therefore, it is possible to combine seamless remote video monitoring using H.264/H.265 with simultaneous transmission to Network Video Recorder.
System additional Benefits
- By connecting of Full-HD image with two cameras via one Ethernet, the bandwidth, license of recoding server, storage and installation cost are reduced by 50%.
Teknik Özellikler
| CAMERA | |
| Image Device | 1/1.9“ Progressive Scan CMOS |
| Total Pixels | 1,956(H)X1,266(V) |
| Effective Pixels | Approx. 2.35 Mega pixels |
| Aspect Ratio | HD: 16:9 |
| Zoom Ratio | Optical x3, Digital x12 |
| Focal Length | f = 3.6 ~ 10.0 mm |
| Horizontal FOV | 102.5°(W) ~ 59.8°(T) |
| Aperture | F1.5 ~ F2.5 |
| Color MIN. Illumination | 0.005 Lux@F1.5 |
| B/W MIN. Illumination | 0.0005 Lux@F1.5, 0 Lux(IR) |
| Day & Night | Auto(CDS or CAM) / Day / Night(ICR) |
| Focus | Auto/Semi Auto/Manual/One Push |
| DNR(2D/3D) | OFF/LOW/MIDDLE/HIGH |
| Shutter Speed | 1 sec ~ 1/10,000sec(60/30 mode) / 1 sec ~ 1/10,000sec(50/25 mode) |
| AGC | Auto/Manual |
| White Balance | Auto/Indoor/Outdoor/Manual |
| WDR/BLC | OFF/BLC/WDR(Digital) |
| Other Function | Defog(Digital), HLC, Dynamic slow shutter |
| GENERAL | |
| Digital In /Out | 2 Alarm Sensor In / 1 Out |
| Audio In / Out | 1 Audio In / 1 Audio Out |
| Video Out | BNC: VBS 1.0 Vp-p |
| IR distance | 30M |
| Power | DC 12V 1.5A(Max. 18W) / Optional: PoE IEEE802.3at |
| Approvals | KC, IP67 |
| Housing | Weather proof/Vandal Proof Structure |
| Material | Body: Aluminum Die-casting |
| Dimension | 210 x 118 x 304 (mm) |
| Weight | 3Kg (approx.) |
| Operating Temp. | -20°C ~ 50°C |
| NETWORK | |
| Ethernet | 10Base-T/100Base-Tx |
| Video Compression | H.265/H.264 /MJPEG |
| Main Video Stream | 1080p/720p |
| Second Video Stream | D1/CIF/QCIF |
| Third Video Stream | 1080p/720p/D1/CIF/QCIF |
| Stream Type | Video/Complex(Video/Audio) Stream |
| Frame Rate | Max. 30 /25 fps for 1080P/720P/D1/CIF/QCIF |
| Bitrate | 30Kbps ~ 16Mbps. Supports CBR/VBR/FIX QP |
| Audio Compression | Two way, G.711 A-law, G.711 μ-law, 128kbps, sampling rate 8kHz |
| Local Storage | Micro SD/SDHC/SDXC card. Support up to 128GB |
| IVA | Motion Detection, Occlusion Detection |
| Line Crossing*, Region entrance/exiting*, Intrusion*, Tampering*, etc | |
| Alarm actions | Email, Micro SD/SDCH/SDXC Record, Relay Output, Snapshot, Notification of Client |
| Alarm | Pre-Post Alarm |
| Max No. of Clients | 10 users(Depending on user bandwidth) |
| Web Brower | IE 6.0 above |
| IPv4 Protocols | IPv4/IPv6*, TCP/IP, UDP, RTP, RTSP, RTMP, NTP, HTTP, HTTPS*, SSL*, |
| DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMP* | |
| DDNS Protocols | Pubblic DDNS services Suport: www.dyndns.com |
| ONVIF Protocols | PROFILE S |
| Security Protocols | User Authentication(ID/PW), IP Address/Mac Address filtering* |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
Ses : Var
