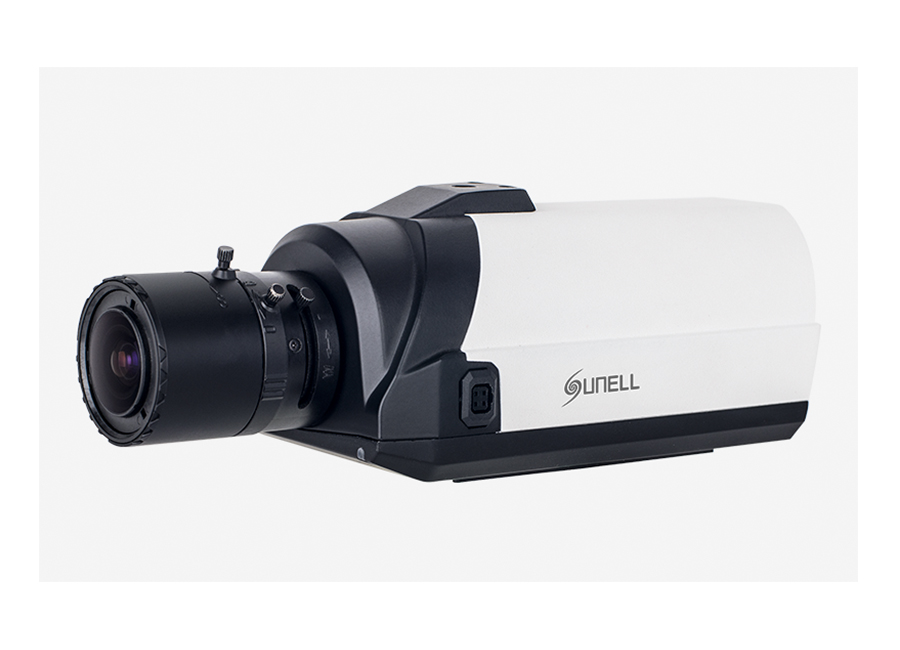

Sunell SN IPC57/20HDN/FT IP Box Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H)×1080(V) |
| Electronic Shutter | 1/5-1/20,000s |
| Min. illumination | Color:0.001Lux @(F1.2,AGC ON) |
| B/W:0.0001Lux @(F1.2,AGC ON) | |
| S/N Ratio | 55dB |
| Day/Night | ICR |
| Wide Dynamic | Ture WDR >120dB |
| Range | |
| IR Range | N/A |
| IR On/Off Control | N/A |
| IR LEDs | N/A |
| Auto Back Focus | Support |
| Lens | |
| Lens Type | N/A |
| Iris | DC Auto Iris |
| Focal Length | N/A |
| F Number | N/A |
| Angle of View | N/A |
| Focus Control | N/A |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Max. Resolution | 1080P(1920×1080) |
| Streaming Capability | 3 Streams |
| Stream / | Stream1:1920×1080/1280×720 @25/30fps |
| Frame Rate | Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps |
| Stream3: VGA/CIF/QVGA @25/30fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream1: 200kbps~12000kbps |
| Stream2: 100kbps~6000kbps | |
| Stream3: 100kbps~6000kbps | |
| Image Enhancement | HLC / BLC / Anti-shake / Defog / WDR (>120dB) |
| White Balance | Support |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Mirror | Support |
| Aisle Mode | Support |
| Region of Interest | Support |
| Motion Detection | Support |
| Privacy Masking | Support |
| Audio | |
| Compression | G.711 ,RAW_PCM |
| Bit Rate | 64kbps (G.711), 128kps (RAW_PCM) |
| Network | |
| Protocols: | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP |
| Interoperability | ONVIF, SDK, CGI |
| Streaming Method | Unicast |
| Max. User Access | 10 Users |
| Web Viewer | <IE11, Chrome, Firefox |
| Management Software | SunView |
| Smart Phone | IOS, Android |
| Intelligence | |
| Intelligent Video | Embed ANPR, Marx recognition speed of 50Km/h, 1000 whitelist & black list, FTP image upload. |
| Interface | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio | 1ch Input, 1ch Output, 1ch Built-in MIC |
| Alarm | 1ch Output |
| RS485 | Support |
| CVBS Output | N/A |
| Reset Button | Support |
| Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128G |
| Electrical | |
| Power Supply | AC24V/DC12V/POE (IEEE 802.3af) |
| Power Consumption | ≤5W |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F ) |
| Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F) | |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | N/A |
| Certifications | CE / FCC |
| Casing | Metal |
| Dimensions | 150.2mm x75mm x69.7mm |
| Net Weight | 400g |
Sunell SN IPC57/20HDN/FT IP Box Kamera Pdf Dosyası487.6 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 2MP (1080P)
Irled : Var
