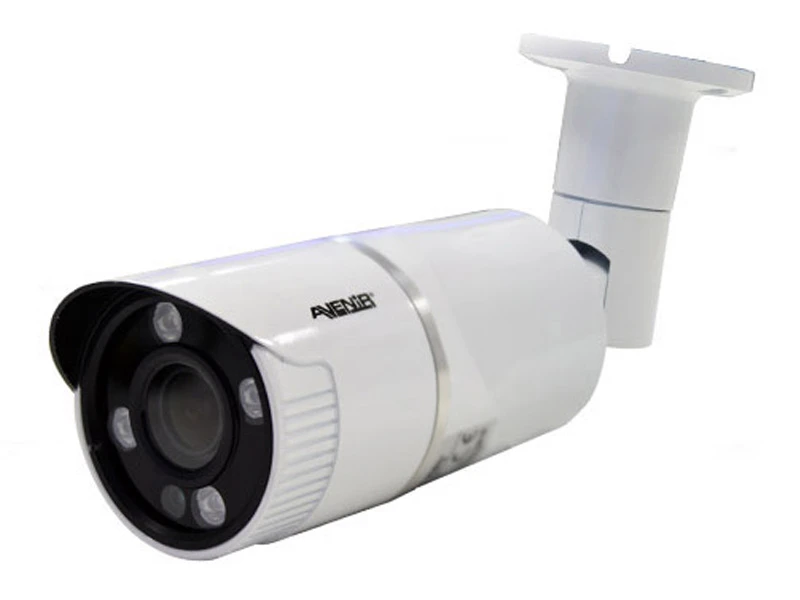

Avenir AV 5050P IP HD Bullet Kamera

Teknik Özellikler

Kamera
Image Sensor 1/2.8” 1.3 Megapixel progressive scan Exmor CMOS
Effective Pixels 1280(H)x960(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/50 1/1000s
Min. Illumination 0. 1Lux/F1.2 (Color), 0.01Lux/F1.2(B/W); 0Lux/F1.2(IR on)
S/N Ratio More than 50dB
Video Output N/A
Kamera Özellikleri
Max. IR LEDs Length 30m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 2.8-12 mm
Max Aperture F1.4
Focus Control Manual
Lens Type Manual
Mount Type Board-in Type
Video
Compression H.264/MJPEG
Resolution 1080P(1280×960)/720P(1280×720)/SVGA(800×600/704×480)/
  CIF(352×288/352×240)
Frame Rate 960P/720P(1 25/30fps)
  D1/CIF(1 25/30fps)
Bit Rate H.264: 16K 20000Kbps
Ses
Compression G.711a/ G.711u/ PCM
Interface 1/1 channel In/Out
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,
Compatibility ONVIF
Max. User Access 10 users
Smart Phone iPhone, iPad, Android, Windows Phone
Yardımcı Arayüz
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
Genel
Power Supply DC12V, PoE (802.3af)
Power Consumption Max 7.5W
Working Environment -20°C +60°C (-H: 40°C +60°C) , Less than 95% RH
Ingress Protection IP66
Vandal Resistance N/A
Dimensions φ101mm×280.7mm
Weight 810gR



Teknik Kısa

Çözünürlük : 1.3MP
Irled : Var
