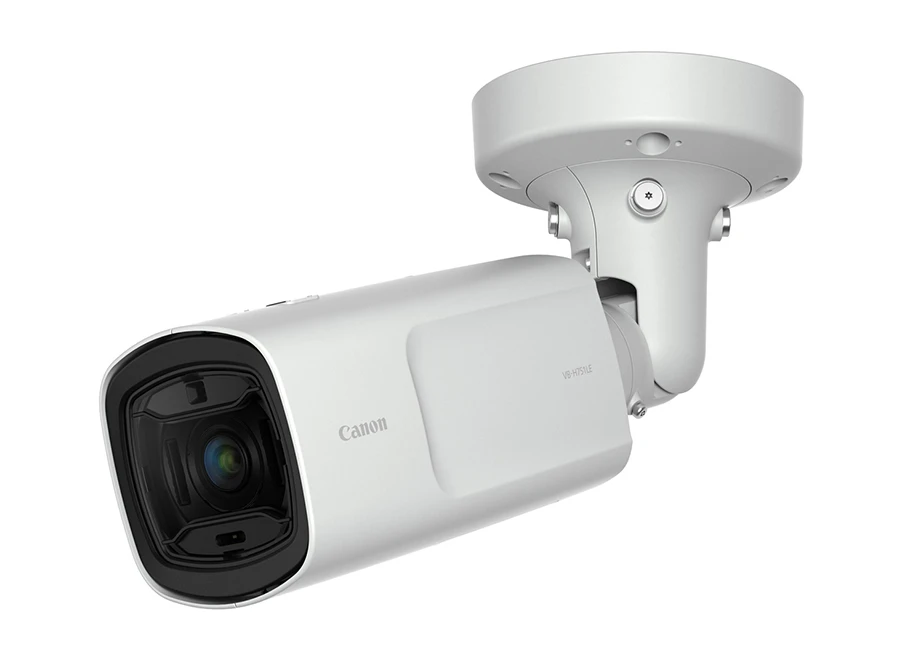

Canon VB M741LE IP Bullet Kamera
Özellikler
- A fully featured IR bullet camera for high quality images day or night
- See in zero light with inbuilt IR illumination plus ultra wide coverage
- Outdoor-ready with additional environmental protection
- Extreme low temperature start up and operation
- Easy installation with remote set up, and simple cable connections
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" CMOS (RGB) |
| Number of Effective Pixels | Approximately 1.3 MP |
| Scanning Method | Progressive scan |
| Lens | 2.4x optical zoom lens (electric drive) |
| Focal Length | 2.55 to 6.12mm (Wide to tele) |
| F-Number (f) | f/1.2 to 1.8 (Wide to tele) |
| Digital Zoom | 4x |
| Horizontal Viewing Angle | 113.4 to 46.5° (Wide to tele) |
| Vertical Viewing Angle | 61.4 to 26.2° (Wide to tele) |
| Day/Night | Supported |
| IR Cut Filter | Automatically removable IR cut filter |
| Minimum Illumination | Day: 0.02 lux (f/1.2, shutter speed 1/30 sec, when smart shade control is off, 50 IRE) |
| Night: 0 lux (f/1.2, shutter speed 1/30 sec, when smart shade control is off, 50 IRE with IR lamp on) | |
| 0.001 lux (f/1.2, shutter speed 1/30 sec, when smart shade control is off, 50 IRE with IR lamp off) | |
| Focus Modes | Auto/one-shot AF/manual/fixed at infinity |
| Shooting Distance Range | Day Mode: 0.9' (0.3 m) to infinity |
| Night Mode: 0.9' (0.3 m) to infinity | |
| Shutter Speed | 1 to 1/16000 sec |
| Exposure Modes | Auto/auto (flickerless)/auto (shutter-priority AE)/manual (shutter speed, aperture, gain) |
| White Balance | Auto/light source/manual |
| Light Source: Daylight fluorescent/white fluorescent/warm fluorescent/mercury lamp/sodium lamp/halogen lamp | |
| Manual: One-shot WB/R gain/B gain | |
| Metering Modes | Center-weighted/average/spot |
| Exposure Compensation | 9 levels |
| Smart Shade Control | Auto/manual/disable |
| Auto: 3 levels | |
| Manual: 7 levels | |
| Haze Level | Auto/manual/disable |
| Auto: 3 levels | |
| Manual: 7 levels | |
| AGC Level | 6 |
| Image Stabilizer | Digital (2 levels) |
| Pan & Tilt | Pan: 344° (±172°) |
| Tilt: 93° (-3 to 90°) | |
| Rotation: 344° (±172°) | |
| IR Illumination | Range: 98' (30 m) (When using 24 VAC, PoE+) |
| Server | |
| Video Compression Format | JPEG, H.264 |
| Bit Rate | Target Bit Rate: 64 to 16384 kb/s |
| Video | Size: |
| JPEG, H.264: 1280 x 720, 640 x 360, 320 x 180, 1280 x 960, 640 x 480, 320 x 240 | |
| Video Quality | JPEG, H.264: 10 levels |
| Frame Rate | JPEG: 0.1 to 30 fps |
| H.264: 1/2/3/5/6/10/15/30 fps | |
| Maximum Frame Rate | 30 fps: 1280 x 960 |
| Output Data Size | Area-Specific Data Size Reduction: 8 windows maximum specified |
| I-Frame Interval | 0.5/1/1.5/2/3/4/5 sec |
| Simultaneous Client Access | Maximum 30 clients + 1 admin client |
| H.264: Maximum 10 clients | |
| Camera Control | Administrator, authorized user, guest user |
| Level of control varies depending on user | |
| Access Control | User authority (user name and password), host access restrictions (IPv4, IPv6) |
| Encrypted Communications | SSL/TLS, IPsec |
| IEEE 802.1X | EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP |
| ONVIF | Version 2.4.2, profile G, profile S |
| Protocols Supported | IPv4: TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (client), DHCP (client), DNS (client), mDNS,ARP, ICMP, POP3 (client), NTP (client), SMTP authentication (POP before SMTP, SMTP-AUTH), AutoIP, RTP/RTCP, RTSP, SSL/TLS, IPsec, WV-HTTP (proprietary), ONVIF (profile S, profile G) |
| IPv6: TCP/IP, UDP, HTTP, FTP, SMTP (client), DHCPv6 (client), DNS (client), mDNS, ICMPv6, POP3 (client), NTP (client), SMTP authentication (POP before SMTP, SMTP-AUTH), RTP/RTCP, RTSP,SSL/TLS, IPsec, WV-HTTP (proprietary), ONVIF (profile S, profile G) | |
| IP | Auto IP supported |
| Audio Compression Method | G.711 μ-law (64 kb/s) |
| Audio Communication | Full-duplex (two-way) - Echo cancellation function compliant |
| RTP, sound transfer protocol | |
| Audio Playback | Available |
| Audio files can be played back when an event is triggered by the intelligent function or external device input | |
| Privacy Masking | Number of Registration: 8 places maximum |
| Number of Mask Colors: 1 (select from 9 colors) | |
| Presets | Number of Registers: 20 positions maximum (+home position) |
| Items to Register: Digital pan/digital tilt/digital zoom, exposure, smart shade control, focus, white balance, video quality adjustment, day/night, haze compensation | |
| Number of Preset Tour Route: 1 maximum | |
| Intelligent Function | Video: |
| Detection Types: Moving object detection, abandoned object detection, removed object detection, camera tampering detection, passing detection, and intrusion detection | |
| Detection Settings: 15 maximum | |
| Audio: Volume detection, scream detection | |
| Event Trigger Type | External device input, intelligent function (video), intelligent function (audio), timer, day/night switch |
| Number of Linked Events: 2 | |
| Linked Event Conditions: AND, OR (whether or not there is a sequence to events) | |
| Image Upload | FTP/HTTP/SMTP (email) |
| Event Notification | HTTP/SMTP (email) |
| On-Screen Display | Supported |
| Cropping | Digital PTZ Cropping Sizes: 640 x 360/512 x 288/384 x 216/256 x 144/128 x 72 |
| 640 x 480/512 x 384/384 x 288/256 x 192/128 x 96 | |
| Daylight savings | Supported |
| Interface | |
| Network Terminal | 1 x LAN (RJ45, 100Base-TX (auto/full-duplex/half-duplex)) |
| Audio Input Terminals | 3.5 mm (0.14") mini-jack connector (monaural) |
| Switch line-in/mic-in in the setting page | |
| Audio Output Terminals | 3.5 mm (0.14") mini-jack connector (monaural) |
| Line-out (connect to an amplifier speaker) | |
| External Device I/O Terminals | 2 x input, 2 x output |
| Memory Card | Type: SD memory card, SDHC memory card, SDXC memory card compatible |
| Content: Log, video (event, manual, ONVIF, timer, upload) | |
| Recorded Frame Rate: 1 fps maximum for JPEG and 30 fps maximum for H.264 | |
| Environment and Power Requirements | |
| Temperature | Operating Environment: |
| Temperature (Including Direct Sun Exposure): | |
| AC, PoE+: -58 to 131°F (-50 to 55°C) | |
| DC, PoE: 14 to 131°F (-10 to 55°C) | |
| Humidity: 5 to 85% RH (without condensation) | |
| Start-Up (Including Direct Sun Exposure): | |
| AC, PoE+: -22 to 131°F (-30 to 55°C) | |
| DC, PoE: 14 to 131°F (-10 to 55°C) | |
| Storage Environment: | |
| Temperature: -22 to 140°F (-30 to 60°C) | |
| Humidity: 5 to 90% RH (without condensation) | |
| Power Supply | PoE: PoE power supply via LAN connector (IEEE 802.3at type1 PoE/type2 PoE+) |
| AC Adapter | PA-V18 (100 to 240 VAC) (available separately) |
| Power Source | External: 24 VAC/12 VDC |
| Power Consumption | PoE: 10.1 W maximum |
| AC Adapter PA-V18: 12.8 W (100 VAC) approximately, 12.8 W (240 VAC) approximately | |
| 12 VDC: 11.1 W approximately | |
| PoE+: 21.2 W approximately | |
| 24 VAC: 22.2 W approximately | |
| General | |
| Outdoor Use | Yes |
| IP Rating | IP66 |
| Mount Position | Ceiling/surface |
| Dimensions | Camera Body Only: 4.37 x 4.02 x 8.43" (11.10 x 10.20 x 21.40 cm) |
| Length when Joint Fully Extended (Depth): 15.12" (38.40 cm) | |
| Weight | 4.68 lb (2.12 kg) approximately |
Teknik Kısa
Çözünürlük : 1.3MP
Irled : Var
