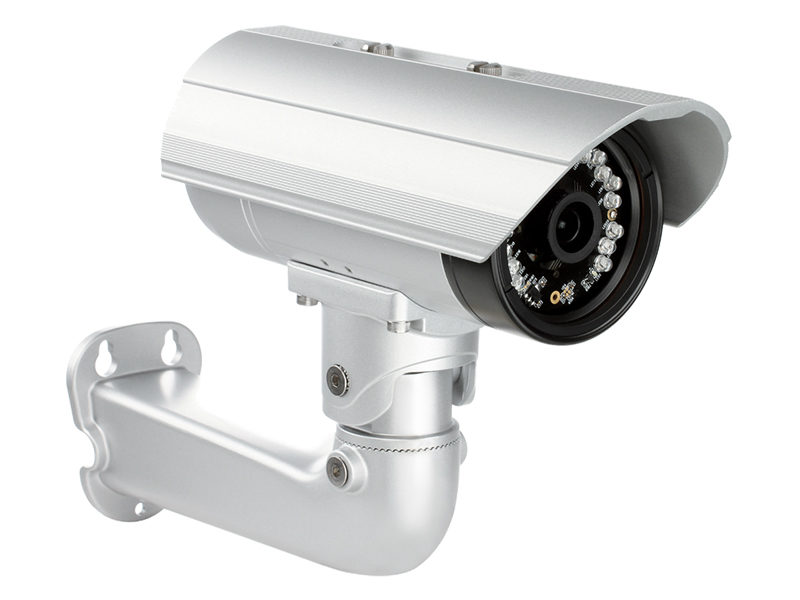

D-Link DCS 7513 IP HD Bullet Kamera

Teknik Özellikler

Camera Hardware Profile
1/2.8”  2 Megapixel progressive CMOS sensor
30 meter IR illumination distance
Minimum illumination: 0 lux with IR LEDs on
Built-in Infrared-Cut Removable (ICR) Filter module
10x digital zoom
3 to 9 mm motorised varifocal lens
Aperture: F1.2
Angle of view (16:9)
(H) 121.2° to 38.1°
(V) 62.1° to 21.3°
(D) 148.4° to 43.8°
Camera Housing
IP-66 compliant weatherproof housing
Cable management bracket
Image Features
Configurable image size, quality, frame rate, and bit rate
Time stamp and text overlays
Configurable motion detection windows
Configurable privacy mask zones
Configurable shutter speed, brightness, saturation, contrast, sharpness, zoom, focus, and aperture
Video Compression
Simultaneous H.264/MPEG-4/MJPEG format compression
H.264/MPEG-4 multicast streaming
JPEG for still images
Video Resolution
16:9 at 1920 x 1080,1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps
4:3 at 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240, 176 x 144 up to 30 fps
Audio Support
G.726
G.711
External Device Interface
10/100 BASE-TX Ethernet port with PoE
1 DI / 1 DO
DC12 V, 100 mA output
SD/SDHC card slot
Audio input/output
DI/DO connector 12 V DC output
Network Protocols
IPv6
IPv4
TCP/IP
UDP
ICMP
DHCP client
NTP client (D-Link)
DNS client
DDNS client (D-Link)
SMTP client
FTP client
HTTP / HTTPS
Samba client
PPPoE
UPnP port forwarding
RTP / RTSP/ RTCP
IP filtering
QoS
CoS
Multicast
IGMP
ONVIF compliant
Security
Administrator and user group protection
Password authentication
HTTP and RTSP digest encryption
System Requirements for Web Interface
Browser: Internet Explorer, Firefox, Chrome, or Safari
Event Management
Motion detection
Event notification and uploading of snapshots/video clips via e-mail or FTP
Supports multiple SMTP and FTP servers
Multiple event notifications
Multiple recording methods for easy backup
Remote Management
Take snapshots/video clips and save to local hard drive or NAS via web browser
Configuration interface accessible via web browser
Operating Systems
Windows 7/Vista/XP/2000
D-ViewCam™ System Requirements
Operating System: Microsoft Windows 7/Vista/XP
Web Browser: Internet Explorer 7 or higher
Protocol: Standard TCP/IP
D-ViewCam™ Software Functions
Remote management
Control and manage up to 32 cameras
View up to 32 cameras on one screen
Management functions provided in web interface
Scheduled, motion detection, and manual recording triggers
Dimensions
223.5 x 97.5 x 90.7 mm
Weight
2050 g (with bracket and sunshield)
External Power Adapter
Input: 100 to 240 V AC, 50/60 Hz
Output: 12 V 1.25 A
Power Consumption
11.02 watts ± 5 %
Temperature
Operating: -40 to 50 °C (-40 to 122 °F)
Storage: -20 to 70° C (-4° to 158° F)
Humidity
Operating: 20% to 80% non-condensing
Storage: 5% to 95% non-condensing
Certifications
CE
CE LVD
FCC
C-Tick

pdfD-Link DCS 7513 IP HD Bullet Kamera Pdf Dosyası616.77 KB

Teknik Kısa

Irled : Var
Çözünürlük : 2MP (1080P)
