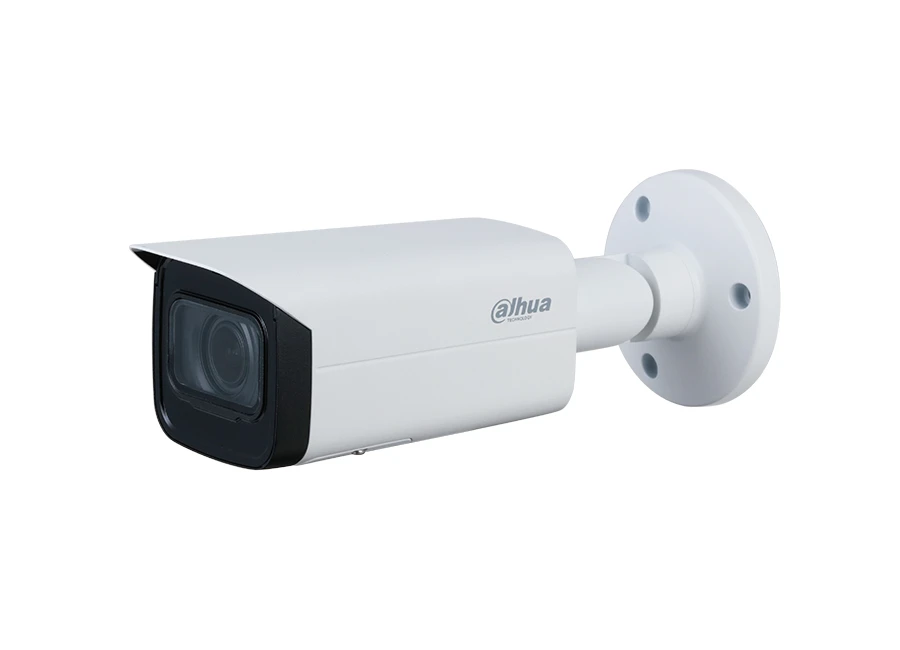

Dahua IPC HFW2231T ZS 27135 S2 IP Bullet Kamera
Özellikler
- 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
- Outputs 2MP (1920 × 1080)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max IR distance: 60 m
- ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
- Supports max. 256 GB Micro SD card
- 12V DC/PoE power support
- IP67 protection ,IK10 protection (optional)
Teknik Özellikler
Camera | |||||
Image Sensor | 1/2.8” 2Megapixel progressive CMOS | ||||
Effective Pixels | 1920 (H) × 1080 (V) | ||||
ROM | 128 MB | ||||
RAM | 128 MB | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s | ||||
Min. Illumination | 0.002 Lux@F1.5 | ||||
IR Distance | 60 m (196.85 ft) | ||||
IR On/Off Control | Auto/Manual | ||||
IR LEDs Number | 4 | ||||
Pan/Tilt/Rotation Range | Horizonal: 0°–360° | ||||
Vertical: 0°–90° | |||||
Rotation: 0°–360° | |||||
Lens | |||||
Lens Type | Motorized vari-focal | ||||
Mount Type | φ14 | ||||
Focal Length | 2.7 mm–13.5 mm | ||||
Max. Aperture | F1.5 | ||||
Field of View | Horizonal: 109°–28° | ||||
Vertical: 57°–16° | |||||
Diagonal: 131°–33° | |||||
Iris Type | Fixed aperture | ||||
Close Focus Distance | 0.8 m–0.8 m (2.62 ft–2.62 ft) | ||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
W | 44.1 m(144.69 ft) | 17.6 m(57.74 ft) | 8.8 m(28.87 ft) | 4.4 m(14.44 ft) | |
T | 151.7 m(497.70 ft) | 60.6 m(198.82 ft) | 30.3 m(99.41 ft) | 15.1 m(49.65 ft) | |
Smart Event | |||||
General IVS Analytics | Intrusion; tripwire | ||||
Video | |||||
Video Compression | H.265; H.264; H.264B; MJPEG | ||||
Smart Codec | H.264: Yes | ||||
H.265: Yes | |||||
Video Frame Rate | Main stream: | ||||
1920 × 1080 (1 fps-25/30 fps) | |||||
Sub stream: | |||||
704 × 576 (1 fps-25 fps) | |||||
704 × 480 (1 fps-30 fps) | |||||
Stream Capability | 2 streams | ||||
Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||
Bit Rate Control | CBR/VBR | ||||
Video Bit Rate | H.264: 32 Kbps–6144 Kbps | ||||
H.265: 12 Kbps–6144 Kbps | |||||
Day/Night | Auto(ICR)/Color/B/W | ||||
BLC | Yes | ||||
HLC | Yes | ||||
WDR | 120 dB | ||||
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||
Gain Control | Auto/Manual | ||||
Noise Reduction | 3D DNR | ||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||
Region of Interest(RoI) | Yes (4 areas) | ||||
Smart IR | Yes | ||||
Image Rotation | °/90°/180°/270° (Supports 90°/270° with 1080p resolution.) | ||||
Mirror | Yes | ||||
Privacy Masking | 4 areas | ||||
Network | |||||
Network | RJ-45 (10/100 Base-T) | ||||
Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour | ||||
Interoperability | ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec | ||||
User/Host | 20 | ||||
Edge Storage | Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS | ||||
Browser | IE | ||||
Chrome | |||||
Firefox | |||||
Management Software | Smart PSS; DSS; DMSS | ||||
Mobile Phone | IOS; Android | ||||
Certification | |||||
Certifications | CE-LVD: EN60950-1 | ||||
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | |||||
FCC: 47 CFR FCC Part 15, Subpart B | |||||
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | |||||
Power | |||||
Power Supply | 12V DC/PoE (802.3af) | ||||
Power Consumption | < 9.6W | ||||
Environment | |||||
Operating Conditions | -30°C to +60°C (-22°F to +140°F)/less than ≤ 95% | ||||
Storage Temperature | -40°C to +60°C (-40°F to +140°F) | ||||
Protection | IP67;IK10(optional) | ||||
Structure | |||||
Casing | Metal | ||||
Dimensions | Φ244.1 mm × 90.4 mm (Φ9.61" × 3.26") | ||||
Net Weight | 0.86 kg (1.90 lb) | ||||
Gross Weight | 1.10 kg (2.43 lb) |
Dahua IPC HFW2231T ZS 27135 S2 IP Bullet Kamera Pdf Dosyası477.02 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
