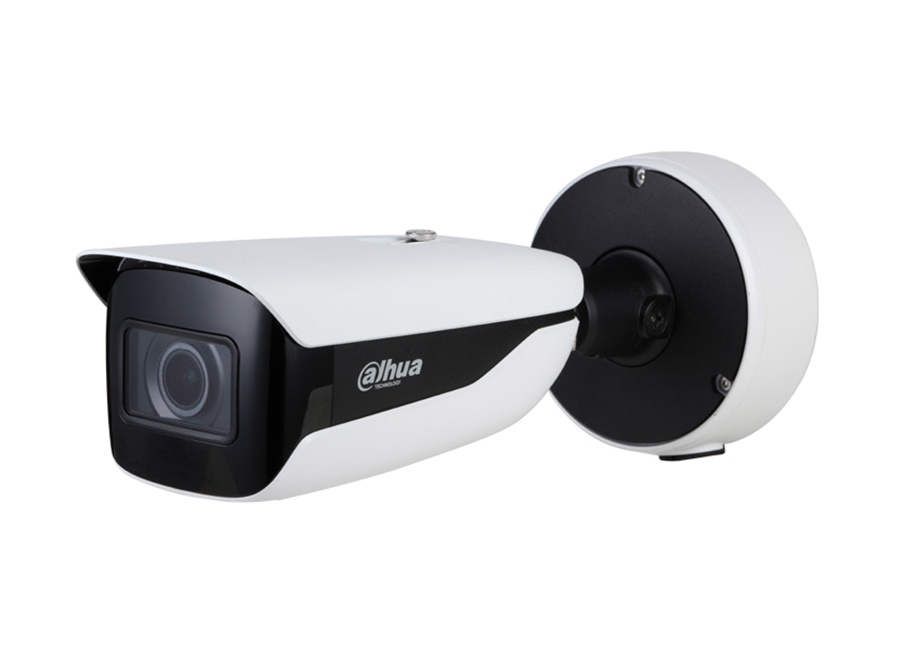

Dahua IPC-HFW5842H-Z4HE IP Bullet Kamera

Özellikler

8MP, 1/1.8” CMOS image sensor, low illuminance, high image definition
Outputs max. 8MP(3840 × 2160) @25/30 fps
H.264&H.265 coding, high compression ration
WDR, day/night, 3D NR, AWB, HLC, BLC
ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
With deep learning algorithm, it supports people counting, face detection, perimeter protection etc
Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G SD card
24V AC/12V DC/PoE power supply (the power ports are different depending on the power supply)
Three streams for two-channel HD video
IP67, IK10 protection
12V DC power output, max. current 165mA , easy for installation

Teknik Özellikler

Camera
Image Sensor	1/1.8”8Megapixel progressive CMOS
Max. Resolution	3840 (H) × 2160 (V)
ROM	4 G
RAM	2 G
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.005@F1.6
S/N Ratio	>56 dB
Illumination Distance	120 m (393.7 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	4 (IR LED)
Pan/Tilt/Rotation Range	Pan:0°–360°
	Tilt:0°–90°
	Rotation:0°–360°
Lens
Lens Type	Motorized vari-focal
Mount Type	Module
Focal Length	8 mm–32 mm
Max. Aperture	F1.6( Constant F1.6 throughout the zoom range)
Field of View	Horizontal: 40° (W)–15° (T)
	Vertical: 23° (W)–9° (T)
	Diagonal: 45° (W)–17° (T)
Iris Type	Auto
Close Focus Distance	W: 2.5 m (8.20 ft)
	T: 6 m (19.68 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	218.0 m (715.2 ft)	87.0 m(285.4 ft)	43.0 m(141.1 ft)	21.0 m(68.9 ft)
	T	580.0 m (1902.9 ft)	232.0 m (761.2 ft)	116.0 m (380.6 ft)	58.0 m(190.3 ft)
Smart Event
IVS	Abandoned object; moving object
Professional, intelligent
IVS (Perimeter Protection)	Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering.
Face Detection	Face detection, track, priority, snapshot;
	Upload Optimized snapshot picture;
	Face enhancement, face exposure, face attribute extract,6 attributes and 8 expressions: Gender, age, glasses,expressions (anger, sadness, disgust, fear, surprise,calm, happiness and confusion), Mouth mask, beard;
	Face matting setting: face, single inch photo;
	Three snapshot methods: real-time snapshot, priority snapshot, quality priority;
	Face angle filter Priority time setting;
	Support Duration Optimal,Non-living Filtering
People Counting	Support tripwire number counting; people counting in
	area, and displaying and outputting yearly/monthly/daily reports.
	Support queue management, and displaying and
	outputting yearly/monthly/daily reports.
	Support 4 tripwire rule configuration, people counting in
	4 areas, and 4 queue managements.
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression	H.265; H.264; H.264H; H.264B;MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+/H.264+
Video Frame Rate	Main Stream: 3840 × 2160 (1-25/30 fps)
	Sub stream: 704 × 576 (1-25 fps)/704 × 480 (1–30 fps)
	Third stream: 1920 × 1080 (1-25/30 fps)
Stream Capability	3 streams
Resolution	8M (3840 × 2160); 6M (3072 × 2048/3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); CIF (352 × 288/352 × 240); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 kbps-16384 kbps
	H.265: 12 kbps-16384 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation	Yes
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Electronic Image Stabilization (EIS)	Yes
Smart Illumination	Yes
Defog	Yes
Image Rotation	°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)
Mirror	Yes
Privacy Masking	4 areas
Audio
Audio Compression	G.711a; G.711Mu; G726; AAC; G.723
Alarm
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; defocus detection; external alarm; face detection; people counting in area; stay alarm; people counting; people No. exception detectiong exception detection; safety exception,queue management
Network
Network	RJ-45 (10/100 Base-T)
SDK and API	Yes
Protocol	HTTP; HTTPS; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; SFTP; RTMP; Genetec; Bonjour; Multicast
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P; RTMP
User/Host	20 (Total bandwidth: 160 M)
Storage	FTP; SFTP; Micro SD card (support max. 256 G); Dahua Cloud; NAS
Browser	IE: IE9 and earlier
	Chrome: Chrome 42 and earlier
	Firefox: Firefox 48.0.2 and earlier
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS; Android
Certification
Certification	CE-LVD: EN62368-1
	CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
	FCC: 47 CFR FCC Part 15, Subpart B
	UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
RS-485	1 (baud rate range: 1200 bps–115200 bps)
Audio Input	1 channel (3.5mm JACK port)
Audio Output	1 channel (3.5mm JACK port)
Alarm Input	3 channels in: 5mA 3V–5V DC
Alarm Output	2 channels out: 1,000mA 30V DC/500mA 50V DC
Power
Power Supply	DC12V/AC24V/PoE+ (802.3at)
Power Consumption	<17.3W
Environment
Operating Conditions	–40°C to +60°C (–40°F to 140°F)/Less than 95% RH
Strorage Conditions	–40°C to +60°C (–40°F to +140°F)
Protection Grade	IP67; IK10
Structure
Casing	Metal + plastic
Dimensions	340.1 mm × 108.5 mm × 92.9 mm (13.4" × 4.3" × 3.7")(L×W×H)
Net Weight	1600 g (3.53 lb)
Gross Weight	2400 g (5.29 lb)
